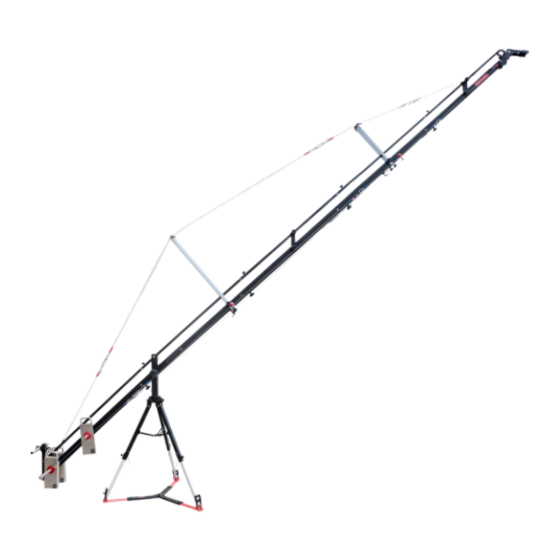

Fly 22' Crane with LW-100 Stand
A s s e m b l y M a n u a l
statutes or in writing by the Publisher.
LW-100 Jib Stand
All rights reserved.
(P-FLY-22-S)
2X Red Cables
2X Blue Cables
Spreader
1
Weight Rod
Advertisement
Table of Contents
Related Manuals for PROAIM Fly 22
Summary of Contents for PROAIM Fly 22

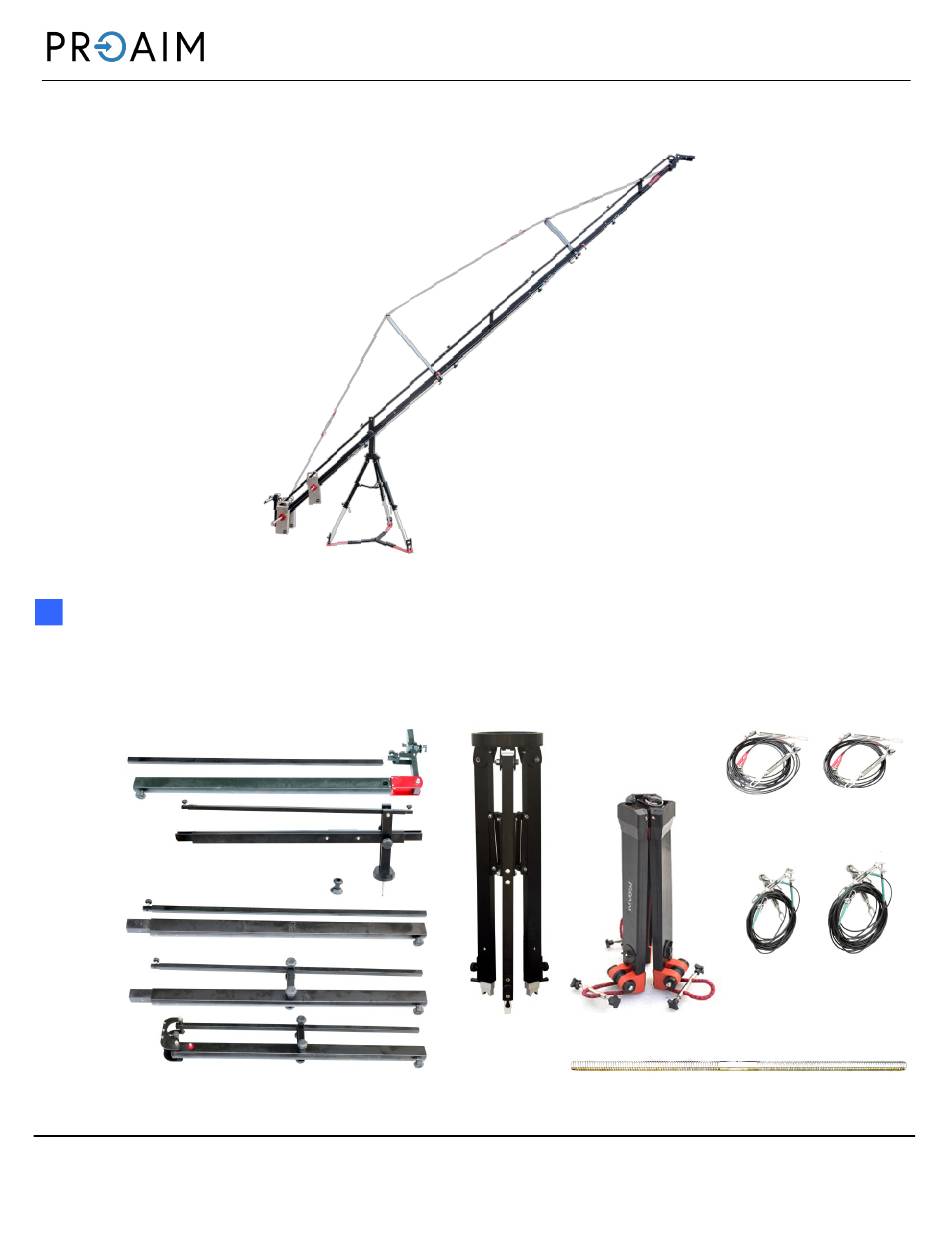

- Page 1 Fly 22’ Crane with LW-100 Stand (P-FLY-22-S) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Connectivity Plate Weight Safety Ends Weight Closer Packing Cable Guide Support Rods Safety Hints ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT DAMAGE TO EQUIPMENT & OPERATOR! The crane may not be assembled or operated under the influence of alcohol, drugs or any other intoxi- cating substances.
- Page 3 Before the counterweights are removed, ensure the remote head is resting on the support stand. Then gradually remove the counterweights before the remote head, camera or other parts. In the interest of safe crane operation, avoid abruptly swivelling or stopping the crane; otherwise, it may cause severe damage to equipment.
- Page 4 Insert connecting bars (section 1A) attached it with both the ends (weight bar & section Knob 2B) the both ends using the provided knob. Connection Bar Using the same approach insert 3rd, 4th and remaining sections to joints and secure via knobs as shown.
- Page 5 Then insert safety ends at both sides onto the weight rod. Stability Cables Setup Cable Code (Red) Now attach both red cable hook onto the provided bolts properly as shown. NOTE: Both the red cables are following same steps. ...
- Page 6 Now slide in weight to it as per your requirement and screw in weight closer properly. (Counter weight not included) YOUR PROAIM FLY 22’ CAMERA CRANE PRODUCTION PACKAGE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
- Page 7 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
