Kite-22 Camera 24.5ft Jib Crane (P-22)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is
listed below.

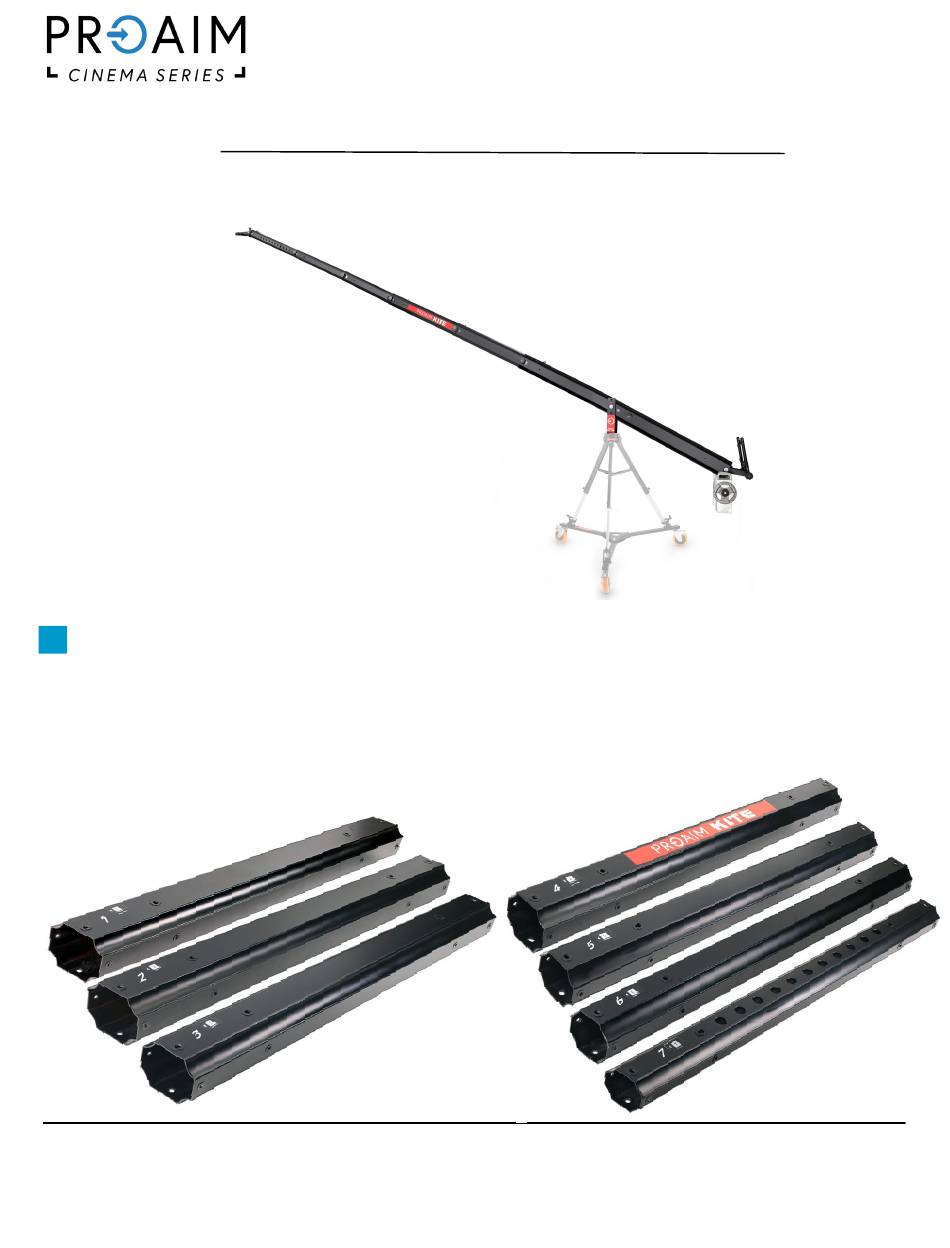

Packaging Material of Box 1 & 2: 7x Jib Sections
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Related Manuals for PROAIM P-22
Summary of Contents for PROAIM P-22
- Page 1 Kite-22 Camera 24.5ft Jib Crane (P-22) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Packaging Material of Box 3: Accessories of Jib Crane Head Platform with Bolt, Shaft Collars, Washers and Nut Hub Mounting Joystick Controller Bracket Section 2 x Locking Pins Levelling Cable 6 x Shanks for Joining Arms Nut Bolts Hub Mounting knob 7 x Black Velcro Turn buckle...
-
Page 3: Safety Hints
Safety Hints ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT DAMAGE TO EQUIPMENT & OPERATOR! • The crane may not be assembled or operated under influence of alcohol, drugs or any other intoxicating substances. Lack of attention while connecting the components together can cause substantial damage to equipment / operator. - Page 4 Jib Sections Setup • Insert the rear tube section (section 1) into the hub assembly, slide section 2 into section 1 and align holes of Section 1 and section 2 with the central hole of the hub assembly and insert shanks in it. •...
- Page 5 • Repeat this process for rest of the sections. insert the long bolt and pin, to secure the sections properly. • Jib sections properly attached to each other as shown in the picture. Head Section Setup • Install Head Platform assembly (leveling arm up) to the end of the section 7th with the provided bolt, shaft collars, washers and nut.
- Page 6 • Connect one end of the leveling cable to the head platform and insert the other end into the turnbuckle. • Attach other end with the hub assembly. Rear Frame Setup • To mount Rear section of jib, insert the bolt with washers through one end of the section to other.
-
Page 7: Balancing Tips
• Match the Rear frame mounting rod with the Joystick digital control top thread of the rear frame; now insert the rear frame mounting rod into the top thread of the rear frame and secure it properly. NOTE: We only use the mounting rod of the rear frame when we want to mount joystick digital control on the rear frame, as it is compatible with this mounting rod. - Page 8 For Different Production Needs Convertible Shooting Lengths...
- Page 9 YOUR PROAIM KITE-22 CAMERA 24.5ft JIB CRANE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
