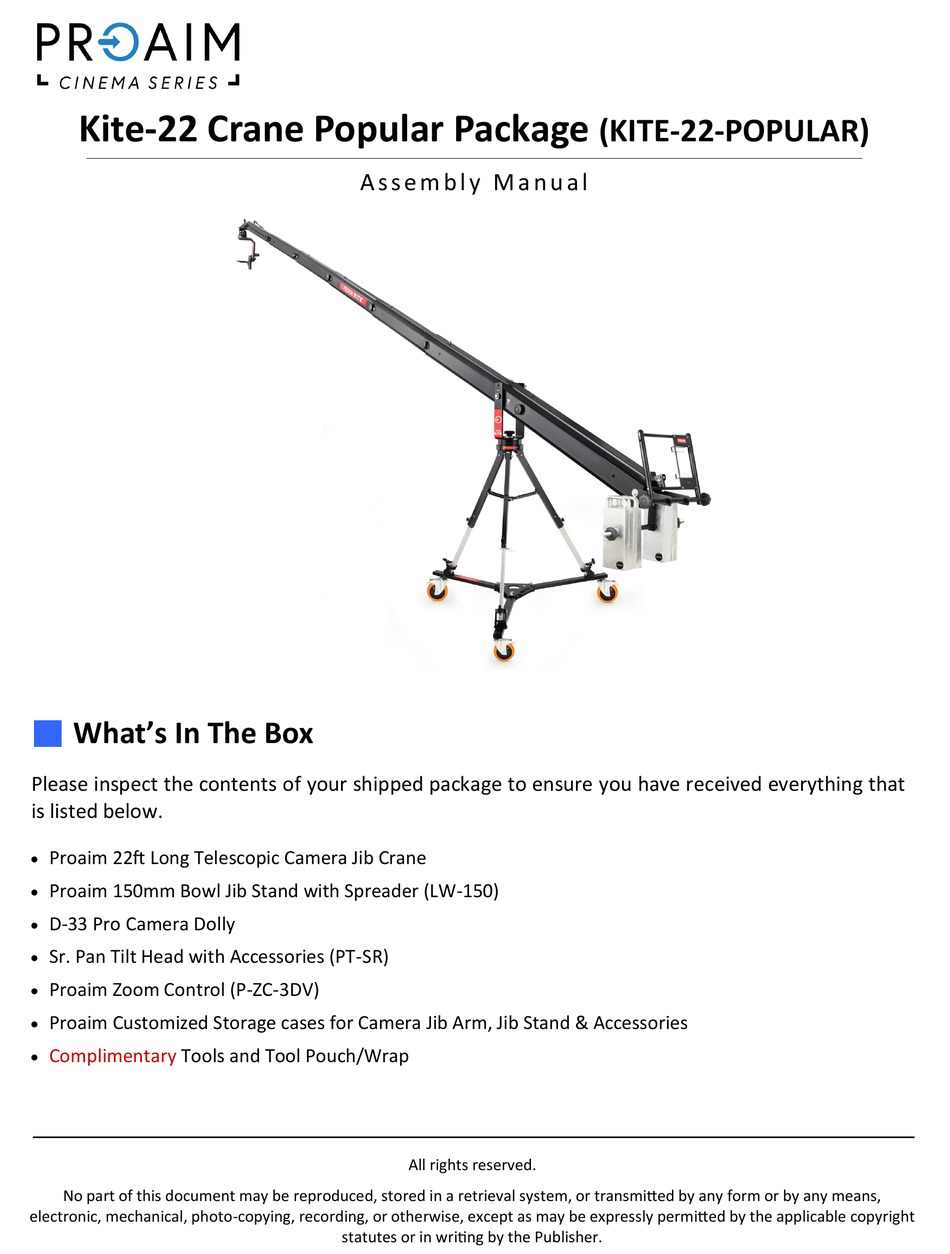

Kite-22 Crane Popular Package
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.

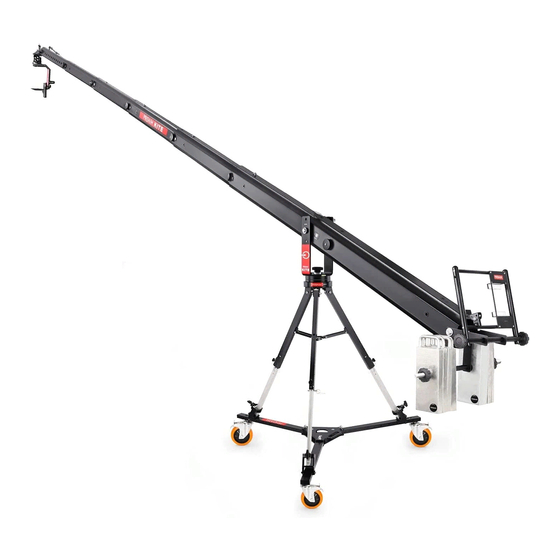

Proaim 22ft Long Telescopic Camera Jib Crane
Proaim 150mm Bowl Jib Stand with Spreader (LW-150)
D-33 Pro Camera Dolly
Sr. Pan Tilt Head with Accessories (PT-SR)
Proaim Zoom Control (P-ZC-3DV)
Proaim Customized Storage cases for Camera Jib Arm, Jib Stand & Accessories
Complimentary
Tools and Tool Pouch/Wrap
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
A s s e m b l y M a n u a l
All rights reserved.
statutes or in writing by the Publisher.
(KITE-22-POPULAR)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CINEMA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROAIM CINEMA Series

Summary of Contents for PROAIM CINEMA Series

  • Page 1  Sr. Pan Tilt Head with Accessories (PT-SR)  Proaim Zoom Control (P-ZC-3DV)  Proaim Customized Storage cases for Camera Jib Arm, Jib Stand & Accessories  Complimentary Tools and Tool Pouch/Wrap All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
  • Page 2 First Packing Includes  Jib Sections Second Packing Includes  Jib Sections Third Packing Includes  Accessories of Jib Crane Fourth Packing Includes  Jib Stand Fifth Packing Includes  Dolly Pack Sixth Packing Includes  Senior Pan-tilt Head NOTE: We send the Jib sections in two boxes. One box has the sections with pipe packing and the other box (cardboard box) has the rest of the sections.
  • Page 3 Packaging Material of Box 4: LW-150 Jib Stand with (P-RB-SP) Spreader (P-RB-SP) Spreader LW-150 Jib Stand Packaging Material of Box 5: Dolly Dolly Feet D-33 Pro Camera Dolly Packaging Material of Box 6: Sr. Pan and Tilt Head with Accessories (PT-SR) AC Adapter Joystick Universal Adapter...

  • Page 4: Safety Hints

    Safety Hints ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT DAMAGE TO EQUIPMENT & OPERATOR!  The crane may not be assembled or operated under the influence of alcohol, drugs or any other intoxicating substances. Lack of attention while connecting the components can cause substantial damage to the equipment/operator.

  • Page 5: Spreader Setup

    Jib Stand Setup  Take out the Tripod Stand from its case, stretch its legs on the floor as required, and tighten the knob to secure it.  Match the bottom leg section holes with the upper leg section to secure the tripod stand with Steel locking Pins and tighten the knob.
  • Page 6  Once all the steps mentioned above are completed, you will see the stand and spreader as shown here. Dolly Setup NOTE: This dolly has various holes for the flexible Tripod mounting.  Remove the bolts and spread the dolly legs on the floor.
  • Page 7  Remove ratchet knobs from the stand and insert the tripod legs into the dolly feet.  Tighten the tripod holder knob as shown in the image. Hub Section Setup Note: The Hub Assembly has several mounting holes. You can mount LCD Monitor or Joystick box if you want.
  • Page 8 Jib Sections Setup  Insert rear tube section (section 1) into the hub assembly, slide section 2 into section 1 and align holes of both the sections with the central hole of hub assembly.  Once the holes are aligned, insert the long bolt and nut to secure the sections properly.
  • Page 9  Attach the provided bolt, shaft collars, washers and nut. Tighten all the bolts and nuts to secure correctly, as shown in the image.  Connect one end of the Levelling cable with to the head platform by hooking the turnbuckle ends.
  • Page 10 Secure your camera setup. Cables & Control Box Setup NOTE: Any 12-volt battery may operate the PROAIM Sr. PAN TILT HEAD as long as the connector mates and is #1 pin Negative and #4 pin Positive. CAUTION: DO NOT USE AN UNREGULATED POWER SUPPLY! A REGULATED POWER SUPPLY MUST PRODUCE LESS THAN 24 VOLTS.

  • Page 11: Balancing Tips

     Attach 4-pin male connectors of cable to the four-pin female connectors of the head for panning & tilting.  If the Joystick Control is opposite, undo the connectors at the motors, rotate 180 degrees and re-install.  Attach & secure your camera to the Head Platform with the help of provided bolt.
  • Page 12 PROAIM Sr. PAN TILT HEAD The PROAIM™ Sr. PAN TILT HEAD circuitry is built entirely into joystick box. The only other requirement is the AC power pack (provided) or battery power. The power pack can handle 90-240 volts. Users will need the appropriate plug adapter for local use.
  • Page 13 All joysticks are linear, meaning that each degree of movement of the stick correlates to the output. On the 12-volt PROAIM SR.PAN-TILT HEAD half deflection of the joystick indicates approximately 6 volts sent to the motors. But with the advent of Digital, we can now control the taper of the joystick, making it Logarithmic.
  • Page 14 Moving the pan & tilt control in the same direction as you move the rear of the jib. This keeps your subject framed but changes the perspective of the camera. YOUR PROAIM KITE-22 CAMERA CRANE POPULAR PACKAGE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase.
