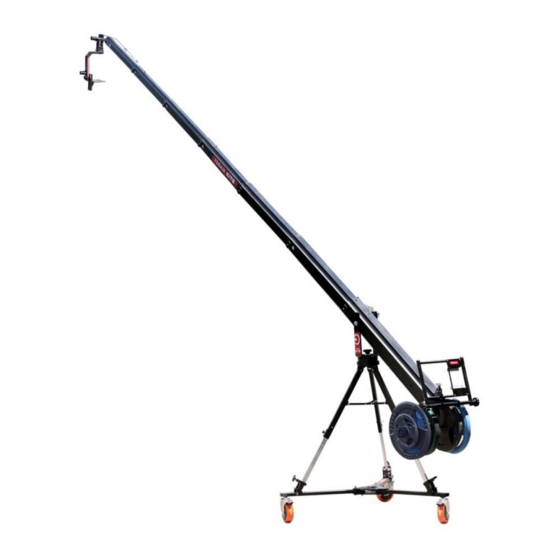

PROAIM KITE-22 Setup And Operational Manual

Starter package
Hide thumbs Also See for KITE-22:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KITE-22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROAIM KITE-22

Summary of Contents for PROAIM KITE-22

  • Page 2: Table Of Contents

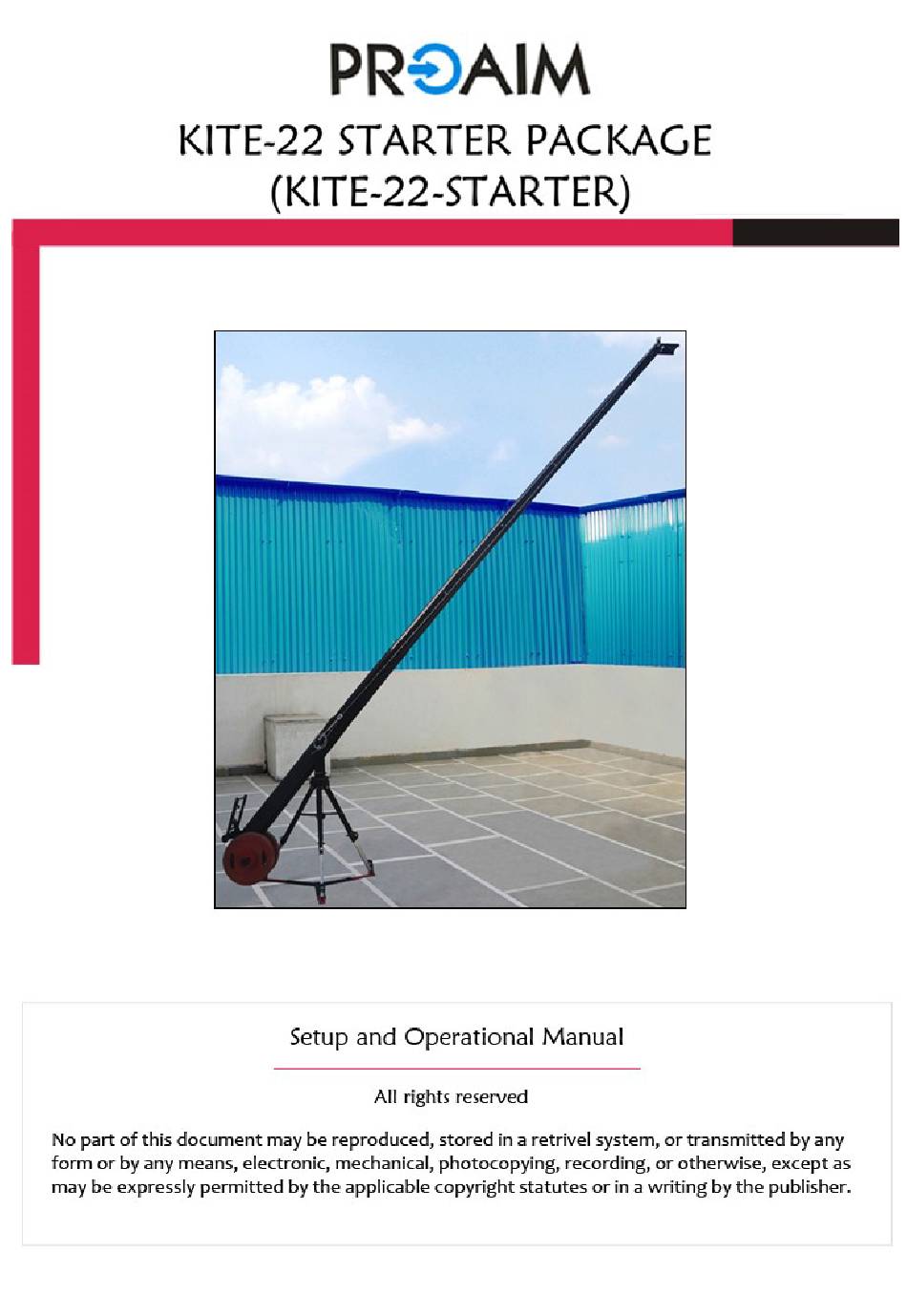

    PROAIM KITE-22 STARTER PACKAGE At Proaim, our goal is to ensure 100% Customer satisfaction in all that we do. We back our sales with a 6-months warranty from the date of purchase and work hard to resolve any problems in the unlikely event one should arise.
  • Page 3 Once you have the opportunity to experience your new Proaim Kite-22 Starter Package, I hope you will agree we craft quality products at a competitive price. Products designed to meet and exceed the standards of today’s real production world.

  • Page 4: Introduction

    The grey foam shipping /storage container has been especially designed to protect your purchase while in transit and is a good place to keep your Proaim Kite-22 Starter package contents when not in use. You will receive this package in 4 boxes.
  • Page 5 PROAIM KITE-22 STARTER PACKAGE Packaging Material of Jib Accessories Suitcase Box: 1. Spreader 10. Knobs for weight section 2. Head Platform 11. Knobs for fixing Hub Assembly 3. Weight rods 12. Locking pin for tripod legs 4. Joystick unit fixing plate 13.

  • Page 6: Installing The Hub Assembly

    PROAIM KITE-22 STARTER PACKAGE  Match the holes of the bottom leg section with the upper leg section to secure the tripod stand with the Steel locking Pins and tighten the knobs. Knob Warning: We have provided double locking precautions on Jib Stand; Pin is the first and pri- mary locking, knob is the secondary locking, so first lock the Pin to avoid slipping of stand.

  • Page 7: Assembling The Rear Frame

    PROAIM KITE-22 STARTER PACKAGE  Slide Section 5 into Section 6 and join with ring pin.  Install the pin at the first join holes of the sections and bolt, washers and nut from side at the second holes of section.
  • Page 8 PROAIM KITE-22 STARTER PACKAGE  Align the threads of joystick plate with the threads of the 1mm rods and tighten the Allen bolts with Allen key.  Take out the two black tubes from the weight rod.  Insert one L-Bracket and then the central black tube with washers at both ends into the weight rod.

  • Page 9: Installing The Rear Frame

    PROAIM KITE-22 STARTER PACKAGE  Attach the bigger weight rod with L-Brackets, for this insert the rod into one L-Bracket then add the black tube with white washers at both the sides, insert the rod into the other L- Bracket and then add the black tube. Tighten the nut and then attach the knob at the end.

  • Page 10: Installing The Stress Cables

    Install the 12 volt DC power (4 pin XLR) in rear of Joystick Box. Note: Any 12 volt battery may operate the PROAIM™ SR PAN TILT HEAD as long as the connector mates and is #1 pin Negative and #4 pin Positive.
  • Page 11 The joystick may be operated hand held, from a flat surface like a table top or attached to the boom arm of the jib. HEAD CABLE PROAIM™ SR PAN TILT HEAD Digital only  Attach the 4-pin power cord to rear of joystick box.
  • Page 12 Note Remember practice makes perfect and always watch the cables for binding. PROAIM™ SR PAN TILT HEAD The PROAIM Sr Pan Tilt Head circuitry is built entirely into the joystick box. The only other re- quirement is the AC power pack (provided) or battery power. The power pack can handle 90- 240 volts.
  • Page 13 All joysticks are linear, meaning that each degree of movement of the stick correlates to the output. On the 12 volt PROAIM PAN TILT HEAD half deflection of the joystick means approxi- mately 6 volts sent to the motors. But with the advent of Digital we can now control the taper of the joystick, making in Logarithmic as well.

  • Page 14: Balancing Tips

    PROAIM KITE-22 STARTER PACKAGE Balancing Tips : 1. 22’ Jib Weights required for balancing only Jib (without camera & Pan Tilt) is: 62,500 Kg (137.5 lbs) For balancing 7 Kg (15.4 lbs), we further need another 35 Kg (77 lbs), the formula is:...

  • Page 15: Return Policy

    PROAIM KITE-22 STARTER PACKAGE Testing Equipment 1. Double-check all nuts to make sure they are snug, as they may loosen in transit. 2. Make sure you are on a level surface and have adequate room 3. Fly the jib around before you mount any equipment on it. This will allow you to test the installation, determine if you are on level ground and you are in proper adjustment.

  • Page 16: Refund Policy

    PROAIM KITE-22 STARTER PACKAGE  Return delivery costs are responsibility of buyer. We will cover the complete cost of sending replacement parts during our 6 month warranty period.  All non-defective returns must be in new, re-sellable condition with all original unmarked packaging, accessories, manuals and unmarked warranty cards.
