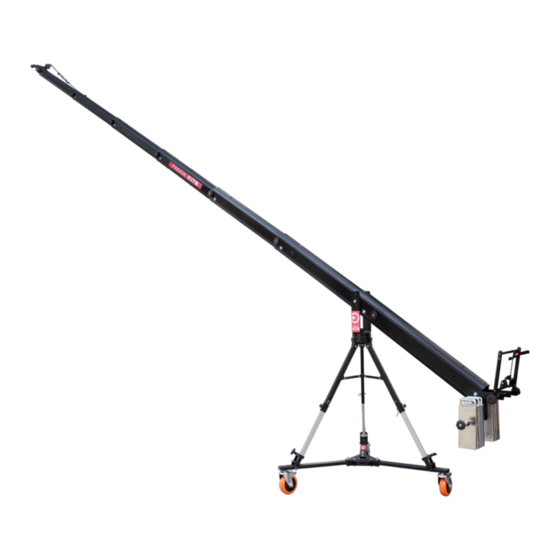

PROAIM Kite-22 Assembly Instructions Manual

Crane starter package
Hide thumbs Also See for Kite-22:

Advertisement

Quick Links

Download this manual
Kite-22 Crane Starter Package
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
Proaim 24.5ft Long Telescopic Camera Jib Crane
Proaim 150mm Bowl Jib Stand (LW-150)
D 33 Pro Camera Dolly
Proaim Customized Storage Cases for Camera Jib Arm , Jib Stand & Accessories
Complimentary
Tools and Tool Pouch/Wrap
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
A s s e m b l y M a n u a l
All rights reserved.
statutes or in writing by the Publisher.
(KITE-22-STARTER)
1

Advertisement

loading

Related Manuals for PROAIM Kite-22

Summary of Contents for PROAIM Kite-22

  • Page 1  Proaim 150mm Bowl Jib Stand (LW-150)  D 33 Pro Camera Dolly  Proaim Customized Storage Cases for Camera Jib Arm , Jib Stand & Accessories  Complimentary Tools and Tool Pouch/Wrap All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
  • Page 2 First Box includes  Jib Sections Second Box includes  Jib Sections Third Box includes  Accessories of Jib Crane Fourth Box includes  Jib Stand Fifth Box includes  Dolly Pack NOTE: We send the Jib sections in two boxes. One box has the sections with pipe packing and the other box (cardboard box) has the rest of the sections.
  • Page 3 Packaging Material of Box 4: LW-150 Jib Stand with (P-RB-SP) Spreader (P-RB-SP) Spreader LW-150 Jib Stand Packaging Material of Box 5: Dolly Dolly Foots D-33 Pro Camera Dolly...

  • Page 4: Safety Hints

    Safety Hints ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT DAMAGE TO EQUIPMENT & OPERATOR!  The crane may not be assembled or operated under influence of alcohol, drugs or any other intoxicating substances. Lack of attention while connecting the components together can cause substantial damage to equipment / operator.

  • Page 5: Spreader Setup

    Jib Stand Setup  Now take out the Tripod Stand from its case, and stretch its legs on floor as per the requirement. Then tighten the knob to secure it.  Match holes of the bottom leg section with the upper leg section to secure tripod stand with Steel locking Pins and tighten the knob.
  • Page 6  Once all the above mentioned steps are completed, you will see the stand and spreader as shown here. Dolly Setup NOTE: This dolly has various holes for flexible mounting of Tripod.  To open the legs of Dolly remove the bolts & fully spread it on floor.
  • Page 7  Remove ratchet knobs of the stand, Insert the tripod legs into the foots on the dolly.  Then tighten the provided knob of tripod holder. Hub Section Setup NOTE: The Hub Assembly has several mounting holes. You can mount LCD Monitor or Joystick box to this assembly if you want.
  • Page 8 Jib Sections Setup  Insert rear tube section (section 1) into the hub assembly, slide section 2 into section 1 and align holes of the Section 1 and section 2 with the central hole of hub assembly.  Already attached 1st or 2nd jib sections, insert it onto the hub then insert the long bolt and nut to Secure the sections properly.
  • Page 9  Attach the provided bolt, shaft collars, washers and nut. Tighten all the Allen bolts and nuts to secure properly as shown in the image.  Connect the one end of Head Platform Levelling cable with the head platform by hooking the turnbuckle ends.
  • Page 10  As each section is pulled from the previous section, you can store unused sections in the tail as ballast weight and lighten your counterweight demand. Balancing Balancing the camera on the head is critical to smooth operation.  Find the horizontal balance point of your camera by using 2 fingers of one hand while holding handle. ...

  • Page 11: Balancing Tips

    Balancing Tips Its sections collapse into each other 1. 24.5’ Jib Weights required for balancing only Jib (without camera & Pan Tilt) is: 55Kg (121.5 lbs) If the camera weight is 1kg, the jib is balanced with 55+5kg=60kg If the camera weight is 2kg the jib is balanced with 55+10kg=65kg 2.
  • Page 12 YOUR PROAIM KITE-22 CAMERA CRANE STARTER PACKAGE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
