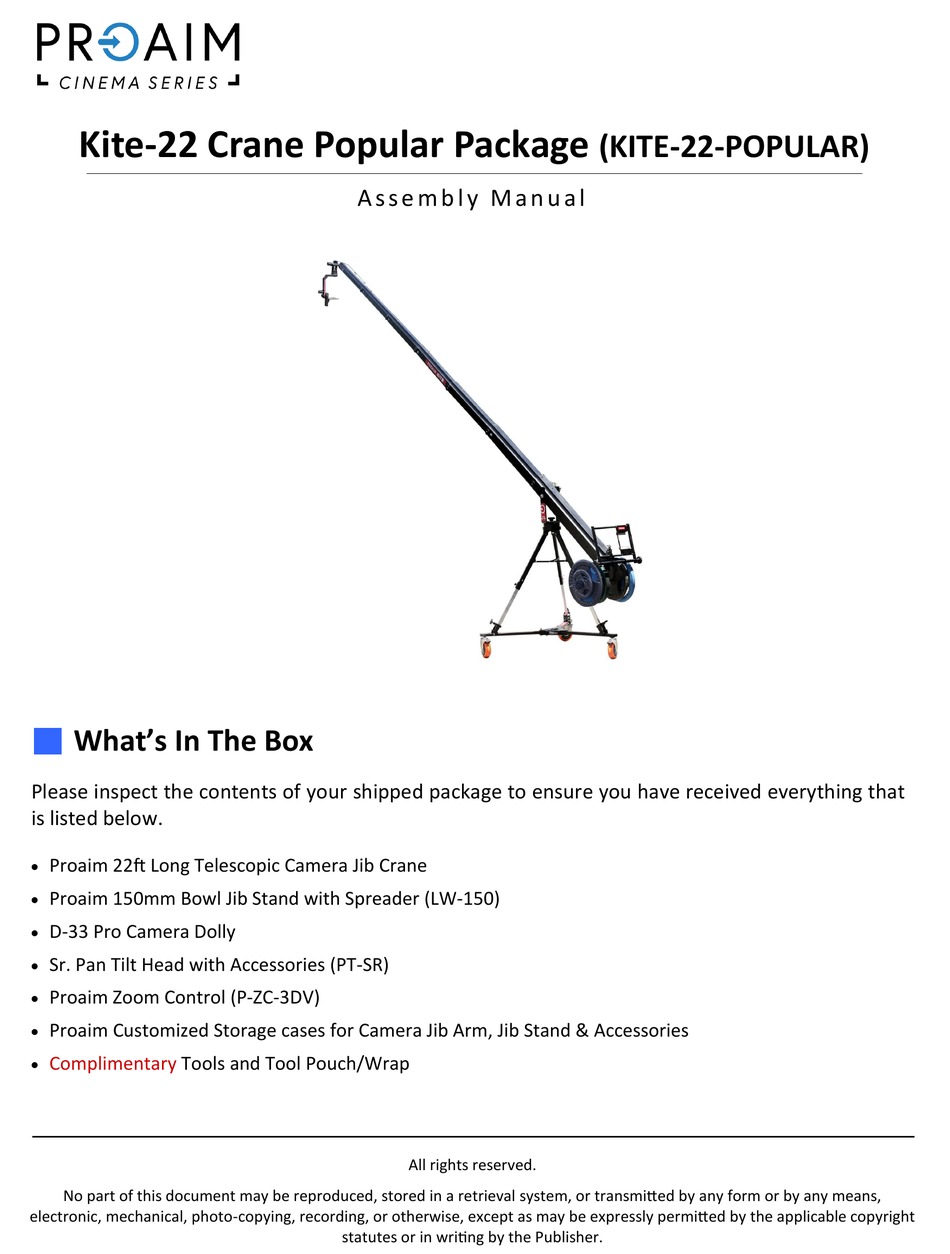

Kite-22 Crane Popular Package
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.

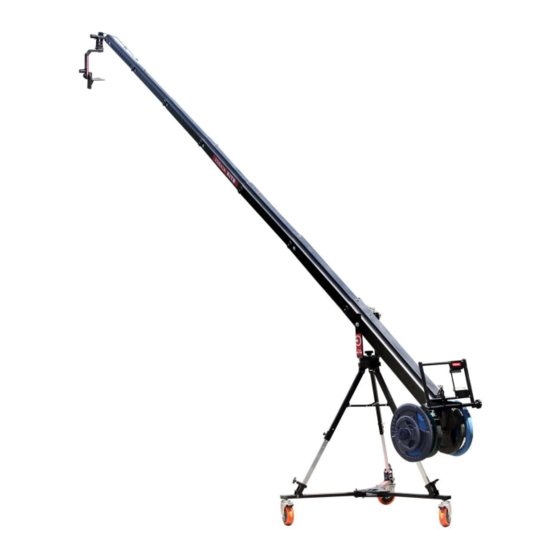

Proaim 22ft Long Telescopic Camera Jib Crane
Proaim 150mm Bowl Jib Stand with Spreader (LW-150)
D-33 Pro Camera Dolly
Sr. Pan Tilt Head with Accessories (PT-SR)
Proaim Zoom Control (P-ZC-3DV)
Proaim Customized Storage cases for Camera Jib Arm, Jib Stand & Accessories
Complimentary
Tools and Tool Pouch/Wrap
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
A s s e m b l y M a n u a l
All rights reserved.
statutes or in writing by the Publisher.
(KITE-22-POPULAR)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kite-22-POPULAR and is the answer not in the manual?

Questions and answers

Related Manuals for PROAIM Kite-22-POPULAR

Summary of Contents for PROAIM Kite-22-POPULAR

  • Page 1  Sr. Pan Tilt Head with Accessories (PT-SR)  Proaim Zoom Control (P-ZC-3DV)  Proaim Customized Storage cases for Camera Jib Arm, Jib Stand & Accessories  Complimentary Tools and Tool Pouch/Wrap All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
  • Page 2 First Packing Includes  Jib Sections Second Packing Includes  Jib Sections Third Packing Includes  Accessories of Jib Crane Fourth Packing Includes  Jib Stand Fifth Packing Includes  Dolly Pack Sixth Packing Includes  Senior Pan-tilt Head NOTE: We send the Jib sections in two boxes. One box has the sections with pipe packing and the other box (cardboard box) has the rest of the sections.
  • Page 3 Packaging Material of Box 4: LW-150 Jib Stand with (P-RB-SP) Spreader (P-RB-SP) Spreader LW-150 Jib Stand Packaging Material of Box 5: Dolly Dolly Feet D-33 Pro Camera Dolly Packaging Material of Box 6: Sr.Pan and Tilt Head with Accessories (PT-SR) Cable XLR Cable Accessories...

  • Page 4: Safety Hints

    Safety Hints ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT DAMAGE TO EQUIPMENT & OPERATOR!  The crane may not be assembled or operated under influence of alcohol, drugs or any other intoxicating substances. Lack of attention while connecting the components together can cause substantial damage to equipment / operator.

  • Page 5: Spreader Setup

    Jib Stand Setup  Now take out the Tripod Stand from its case, and stretch its legs on floor as per the requirement. Then tighten the knob to secure it.  Match holes of the bottom leg section with the upper leg section to secure tripod stand with Steel locking Pins and tighten the knob.
  • Page 6  Once all the above mentioned steps are completed, you will see the stand and spreader as shown here. Dolly Setup NOTE: This dolly has various holes for flexible mounting of Tripod.  To open the legs of Dolly remove the bolts & fully spread it on floor.
  • Page 7  Remove ratchet knobs of the stand, Insert the tripod legs into the feet on the dolly.  Then tighten the provided knob of tripod holder. Hub Section Setup NOTE: The Hub Assembly has several mounting holes. You can mount LCD Monitor or Joystick box to this assembly if you want.
  • Page 8 Jib Sections Setup  Insert rear tube section (section 1) into the hub assembly, slide section 2 into section 1 and align holes of the Section 1 and section 2 with the central hole of hub assembly.  Already attached 1st and 2nd jib sections, insert it into the hub then insert the long bolt and nut to Secure the sections properly.
  • Page 9 Slide the bolt through and secure by tightening with hand. Pan Tilt Head Setup  Attach the PROAIM SENIOR PAN TILT HEAD base platform to the Tripod or jib arm using the four ¼”screws. Tighten to secure.
  • Page 10 Install the 12 volt DC power (4-pin XLR) in rear of Joystick Box. NOTE: Any 12 volt battery may operate the PROAIM Sr. PAN TILT HEAD as long as the connector mates and is #1 pin Negative and #4 pin Positive.

  • Page 11: Balancing Tips

    PROAIM Sr. PAN TILT HEAD The PROAIM™ Sr. PAN TILT HEAD circuitry is built entirely into joystick box. The only other requirement is the AC power pack (provided) or battery power. The power pack can handle 90-240 volts. Users will need...

  • Page 12: Power Control

    JOYSTICK The joystick is a two-axis variable speed servo controller. The further you move in one direction the faster the output to that motor. This will be a little tricky at first, but little practice will improve your success. The joystick may be operated in a handheld position or from a flat surface such as a tabletop, or attached to the boom arm of Jib.
  • Page 13 All joysticks are linear, meaning that each degree of movement of the stick correlates to the output. On the 12 volt PROAIM SR.PAN-TILT HEAD half deflection of the joystick means approximately 6 volts sent to the motors. But with the advent of Digital we can now control the taper of the joystick, making in Logarithmic as well.
  • Page 14 Moving the pan & tilt control the same direction as you move the rear of the jib. This keeps your subject framed but changes the perspective of the camera. YOUR PROAIM KITE-22 CAMERA CRANE POPULAR PACKAGE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase.
