Phaser
8510/8560MFP
multifunction product

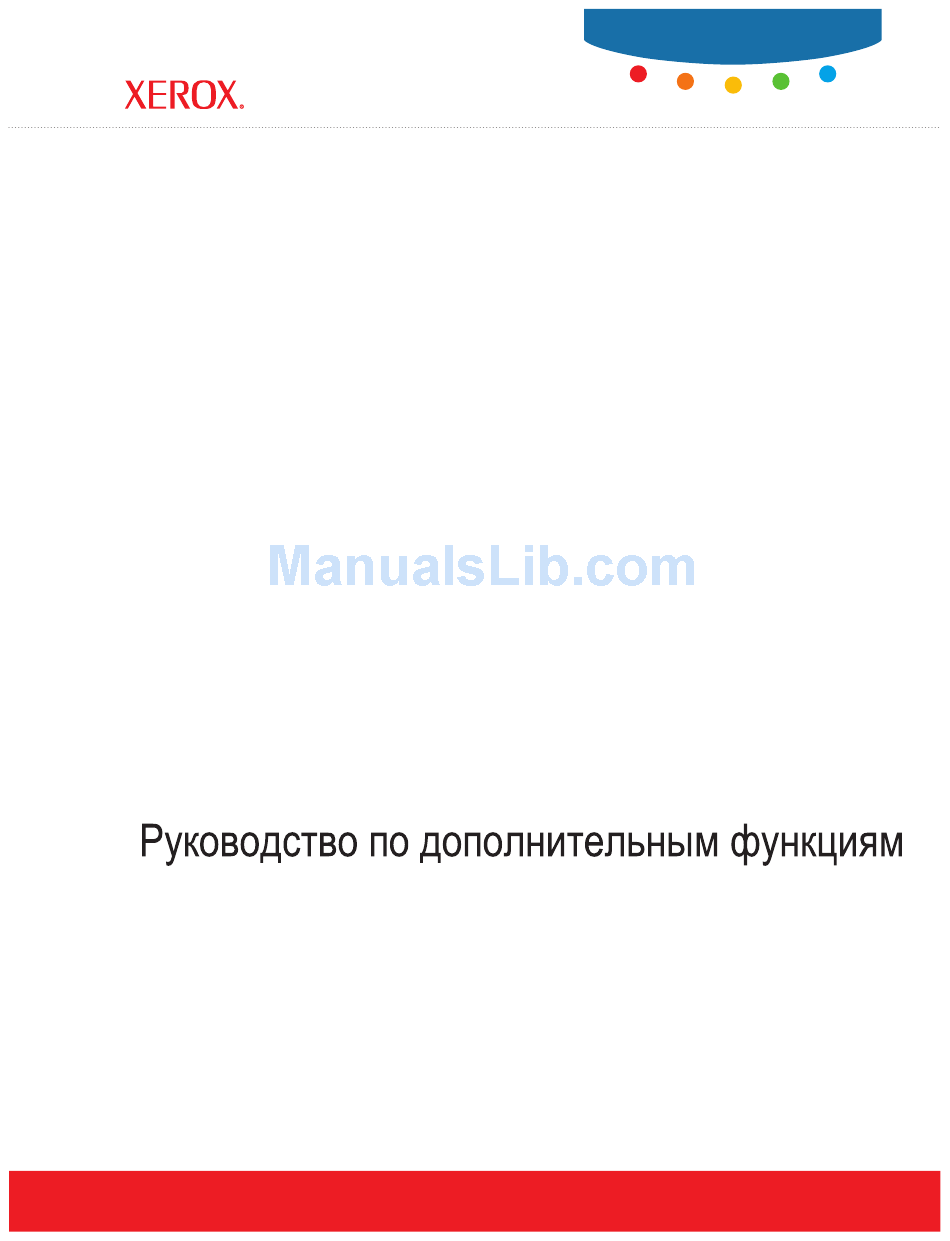

Advanced Features Guide
Guide des Fonctions Avancées
Guida alle Funzioni Avanzate
Handbuch zu Erweiterten Funktionen
Guía de Características Avanzadas
Guia de Recursos Avançados
Handleiding voor Geavanceerde Functies
Avancerade Funktionsguiden
www.xerox.com/office/support

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phaser 8510MFP and is the answer not in the manual?

Questions and answers

Related Manuals for Xerox Phaser 8510MFP

Summary of Contents for Xerox Phaser 8510MFP

  • Page 1 ® Phaser 8510/8560MFP multifunction product Advanced Features Guide Guide des Fonctions Avancées Guida alle Funzioni Avanzate Handbuch zu Erweiterten Funktionen Guía de Características Avanzadas Guia de Recursos Avançados Handleiding voor Geavanceerde Functies Avancerade Funktionsguiden www.xerox.com/office/support...
  • Page 2 Copyright © 2006 Xerox Corporation. All Rights Reserved. Unpublished rights reserved under the copyright laws of the United States. Contents of this publication may not be reproduced in any form without permission of Xerox Corporation. Copyright protection claimed includes all forms of matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted, including without limitation, material generated from the software programs which are displayed on the screen such as styles, templates, icons, screen displays, looks, etc.

  • Page 3: Table Of Contents

    Contents Using System Driver Options System Driver Features ........... . . 1-2 Selecting Which Paper to Use .
  • Page 4 Xerox NDPS Gateway Software........
  • Page 5 Xerox Usage Analysis Tool ........

  • Page 6: Using System Driver Options

    ■ Creating and Saving Custom Sizes ■ Printing Special Job Types on page 1-24 See also: Using the Windows Printer Driver tutorial at Phaser® 8510/8560MFP Multifunction Product on page 1-4 on page 1-5 on page 1-20 on page 1-22 www.xerox.com/office/8510_8560support...

  • Page 7: System Driver Features

    System Driver Features The following table displays many of the Xerox system driver features that are available with specific operating systems. This section includes more information about these features and information about how to select the feature in the driver.
  • Page 8 Windows Feature 98 SE Job Completion Notification (page 1-23) Secure Print (page 1-24) Proof Print (page 1-24) Personal Print (page 1-24) Saved Print (page 1-24) Personal Saved Prints (page 1-24) Print With Saved Jobs (page 1-24) ● = Supported feature ❍...

  • Page 9: Selecting Which Paper To Use

    Selecting Which Paper to Use When you send your print job to the system, you can choose to let the system automatically select which paper to use based on your document size and the paper type you select, or you can force the system to use paper from a specific tray.

  • Page 10: Printing Multiple Pages To A Single Sheet (N-Up)

    Printing Multiple Pages to a Single Sheet (N-Up) When printing a multiple-page document, you can print more than one page on a single sheet of paper. Print one, two, four, six, nine, or 16 pages per side. To print multiple pages on a single sheet of paper in a supported driver: Operating System Steps Windows 98 SE...

  • Page 11: Printing Booklets

    Gutter: Specifies the horizontal distance (in points) between the page images. Creep For details about loading paper trays, see www.xerox.com/office/8510_8560support. The following additional booklet printing options are available in some drivers: ■ Print Page Borders: To print an outline around each page, select On from the Print Page Borders drop-down list.
  • Page 12 To select booklet printing in a supported driver: Operating System Steps Windows 98 SE Select the Setup tab. PostScript driver Click the More Layout Options button. Select Print Booklet Style. If desired, specify the creep and gutter. Windows 2000, Select the Layout tab. Windows XP, Click the Advanced button.

  • Page 13: Using Color Corrections

    Using Color Corrections This section includes: ■ More Options for Color Corrections Automatic Color Corrections ■ The Color Correction options provide simulations of different color devices. Automatic is the default correction for general image processing. See the following table to determine what option you want to use.

  • Page 14: More Options For Color Corrections

    To select the color correction in a supported driver: Operating System Steps Windows 98 SE, Select the TekColor tab. Windows 2000, Select the desired color correction. Some of the color corrections are Windows XP, or grouped under Office Color or Press Match. Windows Server 2003 Mac OS 9.x In the Print dialog box, select General.
  • Page 15 To adjust only the current color correction settings for your job through a supported driver: Operating System Steps Windows 2000, Select the TekColor tab. Windows XP, or Select the desired color correction. Windows Server 2003 Click the More Options button to open the Color Adjustment Options dialog box.

  • Page 16: Automatic Color Corrections

    Automatic Color Corrections The Automatic color correction selection applies the best color correction to each element (text, graphics, and images) in your job. You can also select the color table the system uses for these elements. The system uses the following color tables: Automatic Color Setup Tab Description Office Color...
  • Page 17 To adjust the Automatic color correction in a supported driver: Operating System Steps Windows 2000, Select the TekColor tab. Windows XP, or Select the Automatic color correction. Windows Server 2003 Click the Advanced Setup button to open the Automatic Color Setup dialog box.

  • Page 18: Printing In Black And White

    Printing in Black and White If you want your output in black, white, and shades of gray, you can select Black & White in a supported printer driver: Operating System Steps Windows 98 SE, Select the TekColor tab. Windows 2000, Select Black &...

  • Page 19: Printing Separation Pages

    Printing Separation Pages A separation page (a divider page or slipsheet) can be inserted after a print job, between copies of a print job, or between individual pages of a print job. Specify the tray to use as the source for the separation pages. To specify separation pages in a supported driver: Operating System Steps...

  • Page 20: Printing Cover Pages

    Printing Cover Pages A cover page is the first or last page of a document. The system enables you to choose a different paper source for the cover page than for the body of a document. For instance, use your company letterhead for the first page of a document, or use card stock for the first and last pages of a report.
  • Page 21 For the back of your front cover to remain blank when 2-sided printing, page two of your document must be blank. For the back cover of your document to remain blank, see the following table for inserting blank pages. Print Option Last Page of Text 1-sided printing 2-sided printing...

  • Page 22: Scaling

    Scaling You can reduce or enlarge your page images when they are printed by selecting a scaling value between 25 and 400 percent. The default is 100 percent. To select scaling in a supported driver: Operating System Steps Windows 98 SE Select the Setup tab.

  • Page 23: Printing Watermarks

    Printing Watermarks A watermark is additional text that can be printed across one or more pages. For example, terms like Draft and Confidential, which you might stamp on a page before distribution, can be inserted with a watermark. In some Windows drivers you can: ■...
  • Page 24 To select, create, and edit watermarks using a supported Windows driver: Operating System Steps Windows 98 SE Select the Setup tab. PostScript driver Click the More Layout Options button. Click the Watermark button to display the Watermarks dialog box. Windows 2000, Select the Layout tab.

  • Page 25: Printing Negative And Mirror Images

    Printing Negative and Mirror Images You can print pages as a negative image (reverses the light and dark areas in your printed image) or mirror image (flips images horizontally on pages when printed). Note: Negative images are not supported in Windows 2000, Windows XP, and Windows Server 2003.

  • Page 26: Image Smoothing

    Image Smoothing Image smoothing blends adjacent colors in low-resolution images for smoother color transitions. For example, use image smoothing to improve the appearance of a 72 dpi image downloaded from the web. Image smoothing is not recommended for images with resolutions of 300 dpi or higher.

  • Page 27: Creating And Saving Custom Sizes

    Note: For details about loading and printing custom size paper, see User Guide at www.xerox.com/office/8510_8560support. To create and save a new custom size in a supported driver: Operating System...

  • Page 28: Job Completion Notification

    Job Completion Notification Select the Notify me when my job completes option if you want to be notified when your job is finished printing. A message appears in the lower-right corner of your computer screen displaying the name of the job and the name of the system where it was printed. Note: This feature is only available when your system is connected to your computer over a network.

  • Page 29: Printing Special Job Types

    Printing Special Job Types This section includes: ■ Sending Personal, Personal Saved, Secure, Proof, or Saved Print Jobs Sending Print With Jobs on page 1-26 ■ ■ Printing or Deleting Secure Print Jobs ■ Printing or Deleting Personal Print Jobs Printing or Deleting Proof and Saved Print Jobs ■...

  • Page 30: Sending Personal, Personal Saved, Secure, Proof, Or Saved Print Jobs

    Sending Personal, Personal Saved, Secure, Proof, or Saved Print Jobs Use a supported driver to specify a job as a personal, personal saved, secure, proof, or saved print job. Operating System Steps Windows 98 SE, Select the Output Options tab. Windows 2000, Select the job type under Walk-Up Features.

  • Page 31: Sending Print With Jobs

    Sending Print With Jobs To select jobs to send with your current job in a supported driver: Operating System Steps Windows 98 SE, Select the Output Options tab. Windows 2000, Select Print With under Walk-Up Features. Windows XP, Enter a four-digit password to assign to this job. Windows Server 2003 Click the Print With button to display the Print With Settings dialog PostScript driver...

  • Page 32: Printing Or Deleting Secure Print Jobs

    Printing or Deleting Secure Print Jobs To print or delete a secure print job, specify the four-digit password on the control panel: Press the Print button. Select , and then press the OK button. Secure Print Jobs Scroll to your User Name, and then press the OK button. Scroll to the correct number for the first digit of the numeric password, and then press the OK button to accept that digit.

  • Page 33: Printing Or Deleting Personal Saved Jobs

    Printing or Deleting Personal Saved Jobs To print or delete a personal saved print job, select the job name on the control panel: Press the Print button. Select Personal Saved Print Jobs Select your job name, and then press the OK button. Scroll to the correct number for the first digit of the numeric password, and then press the OK button to accept that digit.

  • Page 34: Using Fonts

    Using Fonts This chapter includes: ■ Types of Fonts on page 2-2 ■ Viewing a List of Resident Fonts Printing Font Samples on page 2-3 ■ ■ Downloading Fonts Using the CentreWare Font Management Utility Phaser® 8510/8560MFP Multifunction Product on page 2-2 on page 2-4...

  • Page 35: Types Of Fonts

    Types of Fonts Your system uses the following types of fonts: ■ Resident fonts Fonts downloaded into printer memory ■ ■ Fonts downloaded with your print job from the application Adobe Type Manager (ATM) software enables your computer to display these fonts on your computer screen as they will appear in your prints.

  • Page 36: Printing Font Samples

    Printing Font Samples This section includes: ■ Using the Control Panel on page 2-3 Using CentreWare IS on page 2-3 ■ Use one of the following options to print a list of available PostScript or PCL fonts: ■ The system’s control panel ■...

  • Page 37: Downloading Fonts Using The Centreware Font Management Utility

    CentreWare Font Management Utility. This utility helps you manage fonts, macros, and forms on a system’s hard drive. To download and install the Font Management Utility on Windows operating systems: Go to www.xerox.com/office/pmtools. Select your printer from the Select Product drop-down list. Click Additional Utilities in the Printer Utilities table.

  • Page 38: Networking

    This chapter provides detailed information for the system administrator. Additional information about print quality, maintenance, troubleshooting options, and installing the scan driver, is located in the User Guide. See also: User Guide at www.xerox.com/office/8510_8560support Phaser® 8510/8560MFP Multifunction Product on page 3-2 on page 3-4...

  • Page 39: System Management Software

    ■ Define a link to your local web server’s support page. ■ Access online manuals and technical support information located on the Xerox website. Note: CentreWare IS requires a web browser and a TCP/IP connection between the system and the network (in Windows, Macintosh, or UNIX environments). TCP/IP and HTTP must be enabled in the system.

  • Page 40: Centreware Web

    Generate reports. ■ Connect to system web servers for additional system-specific features, including help. For more information, go to www.xerox.com/office/pmtools, and select your specific system model to view the CentreWare Web User Guide. Phaser® 8510/8560MFP Multifunction Product System Management Software...

  • Page 41: Windows 2000, Windows Xp, And Windows Server 2003

    Windows 2000, Windows XP, and Windows Server 2003 This section includes: ■ Preliminary Steps on page 3-4 ■ Quick CD-ROM Install Steps ■ Other Methods of Installation ■ Windows 2000, Windows XP, and Windows Server 2003 Troubleshooting Preliminary Steps These preliminary steps must be performed for all systems: Verify that the system is plugged in, turned On, and connected to an active network.

  • Page 42: Other Methods Of Installation

    Click I Agree to accept the Xerox Software License Agreement. In the Select Printer dialog box, the default Use Walk-Up Technology (recommended for network systems) is selected. Click Next. Follow the Use Walk-Up Technology instructions displayed. Click Exit Program. Note: If the Walk-Up Technology dialog box remains onscreen after you have completed Steps 1–6, click the Cancel button, and then click Select from the following discovered...
  • Page 43 Adding the System To add the system: On the desktop click Start, and then click Settings. Select one of these options: ■ Windows 2000: Click Printers, double-click Add Printer to launch the Add Printer Wizard, and then click Next. ■ Windows XP or Windows Server 2003: Click Printers and Faxes.
  • Page 44 Printing a Test Page You are prompted to print a test page. Select one of these options: ■ Click Yes to print a test page, and then click Next. ■ Click No if you do not want to print a test page, and then click Next. Select one of these options in the Completing the Add Printer Wizard screen: ■...
  • Page 45 Configuring the System To configure the system: Insert the Software and Documentation CD-ROM into the computer’s CD-ROM drive and click Have Disk. Click the Browse button, and then select the directory which contains the Windows 2000 or Windows XP drivers. Select the *.INF file, and then click Open.

  • Page 46: Windows 2000, Windows Xp, And Windows Server 2003 Troubleshooting

    Windows 2000, Windows XP, and Windows Server 2003 Troubleshooting Note: For Windows XP, select Classic Look or the Windows XP procedures will not match the steps below. To select Classic Look, click Start, click Settings, and then Taskbar and Start Menu. Select the Start Menu tab, and then select Classic Start menu. Click OK. This Troubleshooting section assumes you have completed the following tasks: ■...
  • Page 47 Click Print Test Page. If the system does not print, select PhaserSMART Technical Support on the Troubleshooting tab of your Windows printer driver to access PhaserSMART Technical Support. See also: www.xerox.com/office/8510_8560support Phaser® 8510/8560MFP Multifunction Product Windows 2000, Windows XP, and Windows Server 2003 3-10...

  • Page 48: Windows 98 Se

    Windows 98 SE This section includes: ■ Preliminary Steps on page 3-11 Quick CD-ROM Install Steps ■ ■ Other Methods of Installation ■ Windows 98 SE Troubleshooting Preliminary Steps Follow these preliminary steps: Verify that the printer is plugged in, turned on, and connected to an active network. Verify that the system is receiving network information by monitoring the LEDs on the back of the device or on the CentreDirect External Print Server.

  • Page 49: Quick Cd-Rom Install Steps

    Install Print Driver: Installs the print driver. Install Scan Driver: Installs the scan driver. ■ Click I Agree to accept the Xerox Software License Agreement. In the Select Printer dialog box, the default Use Walk-Up Technology (recommended for network printers) is selected. Click Next.

  • Page 50: Other Methods Of Installation

    PhaserPort Software The Windows installer installs PhaserPort for Windows (for those installations using PostScript drivers). PhaserPort for Windows is a Xerox print monitor for printing over Windows 98 SE TCP/IP peer-to-peer networks. PhaserPort can be used to add or remove TCP/ IP ports.
  • Page 51 Changing a PhaserPort IP Address If the system’s IP address is changed, you must change the IP address for the device’s corresponding port: Click Start, click Settings, and then click Printers. Right-click the system to be changed to a new PhaserPort IP address, and then click Properties.

  • Page 52: Windows 98 Se Troubleshooting

    Send a print job to the system. If the system does not print, select PhaserSMART Technical Support on the Troubleshooting tab of your Windows printer driver to access PhaserSMART Technical Support. See also: www.xerox.com/office/8510_8560support Phaser® 8510/8560MFP Multifunction Product 3-15 Windows 98 SE...

  • Page 53: Macintosh

    Macintosh This section includes: ■ Requirements on page 3-16 Quick CD-ROM Install Steps ■ ■ Enabling and Using EtherTalk for Mac OS 9.x ■ Enabling and Using TCP/IP for Mac OS 9.x Enabling or Using TCP/IP or AppleTalk for Mac OS X, Version 10.2 and Higher ■...
  • Page 54 Manually: Specify the IP address, Subnet Mask, Router Address, and Name Server Address in the dialog box. Using DHCP Server: Automatically finds the IP address. ■ Close the dialog box. See also: Knowledge Base at www.xerox.com/office/8510_8560support Phaser® 8510/8560MFP Multifunction Product 3-17 Macintosh...
  • Page 55 Using DHCP: Automatically finds the IP address. Click Apply, and then close the dialog box. See also: Knowledge Base at www.xerox.com/office/8510_8560support Setting Up the Macintosh Ethernet Port for AppleTalk To set up your Macintosh for AppleTalk: Select Network from the System Preferences application.
  • Page 56 Click Add to complete the configuration. See also: Knowledge Base at www.xerox.com/office/8510_8560support Creating a Bonjour System with Mac OS X, Version 10.2 and Higher (Recommended) To create a Bonjour printer: Open the Print Center utility. In Mac OS X, version 10.3 or higher, open the Printer Setup utility.

  • Page 57: Macintosh Troubleshooting (Mac Os 9.X, Mac Os X, Version 10.2 And Higher)

    Note: If the job prints, no further system troubleshooting is necessary. If there are print-quality problems, see the User Guide at www.xerox.com/office/8510_8560support. Mac OS 9.x Troubleshooting Perform these steps only for Mac OS 9: Open the Chooser, and then click the LaserWriter driver.
  • Page 58 If you are still unable to print, access PhaserSMART Technical Support through CentreWare IS: Launch your web browser. Enter the system’s IP address in the browser’s Address field (http://xxx.xxx.xxx.xxx). Select Support. Click the PhaserSMART Diagnostic Tool link to access PhaserSMART. See also: www.xerox.com/office/8510_8560support Phaser® 8510/8560MFP Multifunction Product 3-21 Macintosh...

  • Page 59: Novell

    The Xerox NDPS Solution enables you to use Novell NDPS with many of the latest Xerox systems. It includes administrative tools that work with NetWare Administrator so that users can easily configure and manage their network printer services.

  • Page 60: Unix (Linux)

    UNIX (Linux) This section includes: ■ Quick Install Steps on page 3-24 Your system supports connection to a variety of UNIX platforms through the parallel and network interface. The workstations currently supported by CentreWare for UNIX/Linux to a network-connected system are: ■...

  • Page 61: Quick Install Steps

    Print the Configuration page and keep it for reference. From Your Computer To install the system: Go to www.xerox.com/drivers. Select the product type, the product family, and then select the model. Click the Drivers & Downloads link. Select Unix from the Operating System drop-down menu, and then click Go.

  • Page 62: Managing Your System

    Managing Your System This chapter includes: ■ System Settings on page 4-2 ■ System Security on page 4-14 Analyzing System Usage on page 4-16 ■ Phaser® 8510/8560MFP Multifunction Product...

  • Page 63: System Settings

    Select the desired language, and then press the OK button. Phaser® 8510/8560MFP Multifunction Product on page 4-2 on page 4-3 on page 4-4 on page 4-5 on page 4-6 on page 4-7 on page 4-8 Faxing in the User Guide at www.xerox.com/office/ System Settings...
  • Page 64 Using CentreWare IS To change the default control panel language using CentreWare IS: Launch your web browser. Enter your system’s IP address in the browser’s Address field (http://xxx.xxx.xxx.xxx). Click Properties. Select the General folder on the left sidebar, and then select System Defaults. In the User Preferences area, select the language from the Set Control Panel Language drop-down list.
  • Page 65 Setting the System Date and Time Some system features, like Scheduled Warmup mode and Job Accounting, rely on the system date and time settings to initiate functions and report usage information. To change the system date and time, use one of the following options: ■...
  • Page 66 Controlling Startup Page Printing The system can produce a Startup page each time the system is turned on or reset. The factory default is On. You can print the Startup page at any time from the To turn on/off automatic printing of the Startup page, use one of the following options: ■...
  • Page 67 Changing the Power Saver Timeout To save energy, the system enters a Power Saver, low-energy consumption mode after a pre- defined period of time since its last activity. In this mode, most electrical systems are shut down. When a job is sent to the system, the system enters Warmup mode. You can also warm up the system by pressing the OK button on the control panel.
  • Page 68 Changing Intelligent Ready Mode Intelligent Ready mode is an automated system that: ■ Monitors the system’s usage. ■ Warms up the system when you are most likely to need it based on past usage patterns. ■ Activates the Power Saver mode when the system times out. To turn on/off the Intelligent Ready mode, use one of the following options: The system’s control panel ■...
  • Page 69 Viewing Supply Usage Information The system detects the status of certain supplies and consumables, such as ink, maintenance kit, and the number of pages printed. To view the status of supplies, use one of the following options: ■ The system’s control panel ■...

  • Page 70: Paper Handling Settings

    Note: For information about selecting options for specific copy, scan, and fax functions, see Copying, Scanning, or Faxing in the User Guide at www.xerox.com/office/8510_8560support. Selecting Tray 1 Mode The Tray 1 Mode setting specifies: ■ How Tray 1 paper type and size are determined when you load paper in the tray but do not select the paper type and size on the control panel.
  • Page 71 Using the Control Panel To select a Tray 1 mode setting on the control panel: Press the System button. Select , and then press the OK button. General Setup Select Paper Handling Setup Select , and then press the OK button. Tray 1 Mode Select the appropriate setting, and then press the OK button.
  • Page 72 Setting the Duration for the Tray 1 Prompt The Tray 1 prompt setting specifies the amount of time the prompt displays on the control panel after paper is loaded in the tray. The Tray 1 prompt requests that the user confirm the current tray setup or specify the correct paper type and size for the print job.
  • Page 73 Setting the Duration for the Tray 2–N Prompt The Tray 2–N prompt setting specifies the amount of time the prompt displays on the control panel after paper is loaded in Trays 2–N. The Tray 2–N prompt requests the user to confirm the current tray setup or to specify the correct paper type for the print job.
  • Page 74 Changing the Load Paper Timeout When your print job is formatted for a type or size of paper that is not loaded in the system, the system’s control panel displays a message requesting you to load the appropriate paper. The Load Paper Timeout value controls the amount of time the system waits before printing on another type or size of paper.

  • Page 75: System Security

    For information about managing security settings for copy, scan, and fax functions, see Copying, Scanning, or Faxing in the User Guide at www.xerox.com/office/8510_8560support. Selecting Administrative Settings Administrative settings in CentreWare IS enable you to select settings based on three levels of user security: Any user: Includes the majority of people who will be sending print jobs to the system.

  • Page 76: Selecting Printing Security Settings

    Selecting Printing Security Settings Printing security settings enable you to: ■ Remove unprinted secure, personal, and proof jobs. ■ Overwrite hard drive security options. ■ Select jam recovery options. To set printing security settings: Launch your web browser. Enter your system’s IP address in the browser’s Address field (http://xxx.xxx.xxx.xxx). Click Properties.

  • Page 77: Analyzing System Usage

    For information about managing transmission report options, secure faxes, and printing fax reports, see Faxing in the User Guide at www.xerox.com/office/8510_8560support. Job Accounting Job accounting is available through CentreWare IS and CentreWare Web. The system stores information about print jobs in a log file. The log file is stored on the hard drive.

  • Page 78: Usage Profile Reports

    Usage Profile Reports The system generates reports accessible through CentreWare IS that detail device usage. Usage profile reports track multiple items, including: ■ System information, such as system name, date installed, total pages printed, options installed, and network ID. ■ Supplies usage data, such as toner or ink.

  • Page 79: Mailinx Alerts

    MaiLinX Alerts MaiLinX alerts enable the system to automatically send email to the system administrator and others under the following conditions: ■ When system errors, warnings, and alerts occur. ■ When the system requires attention (for example, when service is required or supplies need to be replenished).

  • Page 80: Xerox Usage Analysis Tool

    Analyzing System Usage Xerox Usage Analysis Tool The Xerox Usage Analysis Tool is a Windows client/server application that enables system administrators to automatically track Xerox system usage and obtain job accounting records. The tool supports large networks with many users and systems. Job accounting and system usage data is stored in a database.

  • Page 81: Printer Specifications

    Printer Specifications Physical Specifications Base Unit ■ Width: 532 mm (20.9 in.) Depth: 665 mm (26.2 in.) ■ ■ Height: 620 mm (24.4 in.) ■ Weight: 43 kg (93 lb.) Optional 525-Sheet Feeder Height: 135 mm (5.3 in.) Optional Cart ■...
  • Page 82 Resolution Maximum Resolution: 600 x 600 dpi Print Speed ■ Phaser 8510MFP Multifunction Product: Up to 24 pages per minute ■ Phaser 8560MFP Multifunction Product: Up to 30 pages per minute ■ Up to 30 pages per minute (ppm) from document feeder Copy Speed ■...

  • Page 83: Regulatory Information

    Consult the dealer or an experienced radio/television technician for help. ■ Any changes or modifications not expressly approved by Xerox could void the user's authority to operate the equipment. To ensure compliance with Part 15 of the FCC rules, use shielded interface cables.
  • Page 84 This product, if used properly in accordance with the user's instructions, is neither dangerous for the consumer nor for the environment. A signed copy of the Declaration of Conformity for this product can be obtained from Xerox. Phaser® 8510/8560MFP Multifunction Product...

  • Page 85: Material Safety Data

    Material Safety Data Sheet For Material Safety Data information regarding your Phaser 8510/8560MFP product, go to: ■ United States and Canada: www.xerox.com/msds ■ European Union: www.xerox.com/environment_europe For the Customer Support Center phone numbers, go to www.xerox.com/office/contacts. Phaser® 8510/8560MFP Multifunction Product...

  • Page 86: Product Recycling And Disposal

    Disposal All Countries If you are managing the disposal of your Xerox product, please note that the product may contain lead, mercury, and other materials whose disposal may be regulated due to environmental considerations in certain countries or states. The presence of lead and mercury is fully consistent with global regulations applicable at the time that the product was placed on the market.
  • Page 87 In accordance with European legislation, end of life electrical and electronic equipment subject to disposal must be managed within agreed procedures. Prior to disposal, please contact your local dealer or Xerox representative for end of life takeback information. North America Xerox operates an equipment takeback and reuse/recycle program.
  • Page 88 Acknowledgements Original SSLeay License Copyright © 1995-1998 Eric Young (eay@cryptsoft.com). All rights reserved. This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written so as to conform with Netscape’s SSL. This library is free for commercial and non-commercial use as long as the following conditions are adhered to.
  • Page 89 THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;...
  • Page 90 Part 2: Networks Associates Technology, Inc. copyright notice (BSD) ----- Copyright © 2001-2003, Networks Associates Technology, Inc. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright notice, this list of ■...
  • Page 91 Part 3: Cambridge Broadband Ltd. copyright notice (BSD) ----- Copyright © 2001-2003, Cambridge Broadband Ltd. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright notice, this list of ■...
  • Page 92 MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;...
  • Page 93 Index Numerics 2-sided printing booklets, 1-6 accessing online manuals using CentreWare IS, 3-2 accounting records, 4-16 adding a printer port Windows 98 SE, 3-13 adding the printer Windows 2000, Windows XP, Windows Server 2003, 3-6 administrative security settings selecting, 4-14 analyzing printer usage, 4-16 AppleTalk creating a printer...
  • Page 94 color adjustments, 1-9 automatic color correction more options, 1-11 blending adjacent colors in low resolution images, 1-21 color correction, 1-8 more options, 1-9 TekColor correction, 1-8 configuring the printer Windows 2000, Windows XP, Windows Server 2003, 3-6 control panel changing Intelligent Ready mode, 4-7 load paper timeout mode, 4-13 power saver timeout setting, 4-6...
  • Page 95 Ethernet port setting up for AppleTalk, 3-18 setting up for TCP/IP, 3-18 Macintosh, 3-17 EtherTalk enabling and using Mac OS 9.x, 3-16 fax function selecting control panel settings, 4-2 selecting paper handling options, 4-9 first or last page of a document, 1-15 Font Management Utility, 2-4 fonts downloading, 2-4...
  • Page 96 enabling and using EtherTalk Mac OS 9.x, 3-16 enabling and using TCP/IP Mac OS 9.x, 3-17 enabling and using TCP/IP or AppleTalk Mac OS X, version 10.2 and higher, 3-18 quick CD-ROM installation, 3-16 requirements, 3-16 setting up the Ethernet Port AppleTalk, 3-18 TCP/IP, 3-17, 3-18 troubleshooting, 3-20...
  • Page 97 4-4 settings, 4-2 copy from one printer to another, 3-2 status notification, 4-18 usage Xerox Usage Analysis Tool, 4-19 verifying settings Windows 2000, Windows XP, Windows Server 2003, 3-9 waits before printing on another type or...
  • Page 98 job timing, 4-17 mirror images, 1-20 multiple pages per sheet, 1-5 negative images, 1-20 N-Up, 1-5 personal jobs, 1-27 personal saved jobs, 1-28 proof print jobs, 1-27 saved print jobs, 1-27 secure print jobs, 1-27 selecting cover page printing options, 1-15 separation pages, 1-14 Startup page, 4-5 test pages...
  • Page 99 MailinX alerts, 4-18 slipsheet using a separation page, 1-14 smoothing images, 1-21 software PhaserPort software Windows 98 SE, 3-13 printer management, 3-2 Xerox Usage Analysis Tool, 4-19 specifications controller, A-2 environmental, A-1 fonts, A-2 memory, A-2 performance, A-2 Phaser® 8510/8560MFP Multifunction Product...
  • Page 100 Windows 2000, Windows XP, Windows Server 2003, 3-9 verifying settings Windows 2000, Windows XP, Windows Server 2003, 3-9 Windows 98 SE, 3-15 Xerox Novell Distributed Print Services (NDPS) Gateway software, 3-22 Xerox Usage Analysis Tool, 4-19 Index-8 Index...
