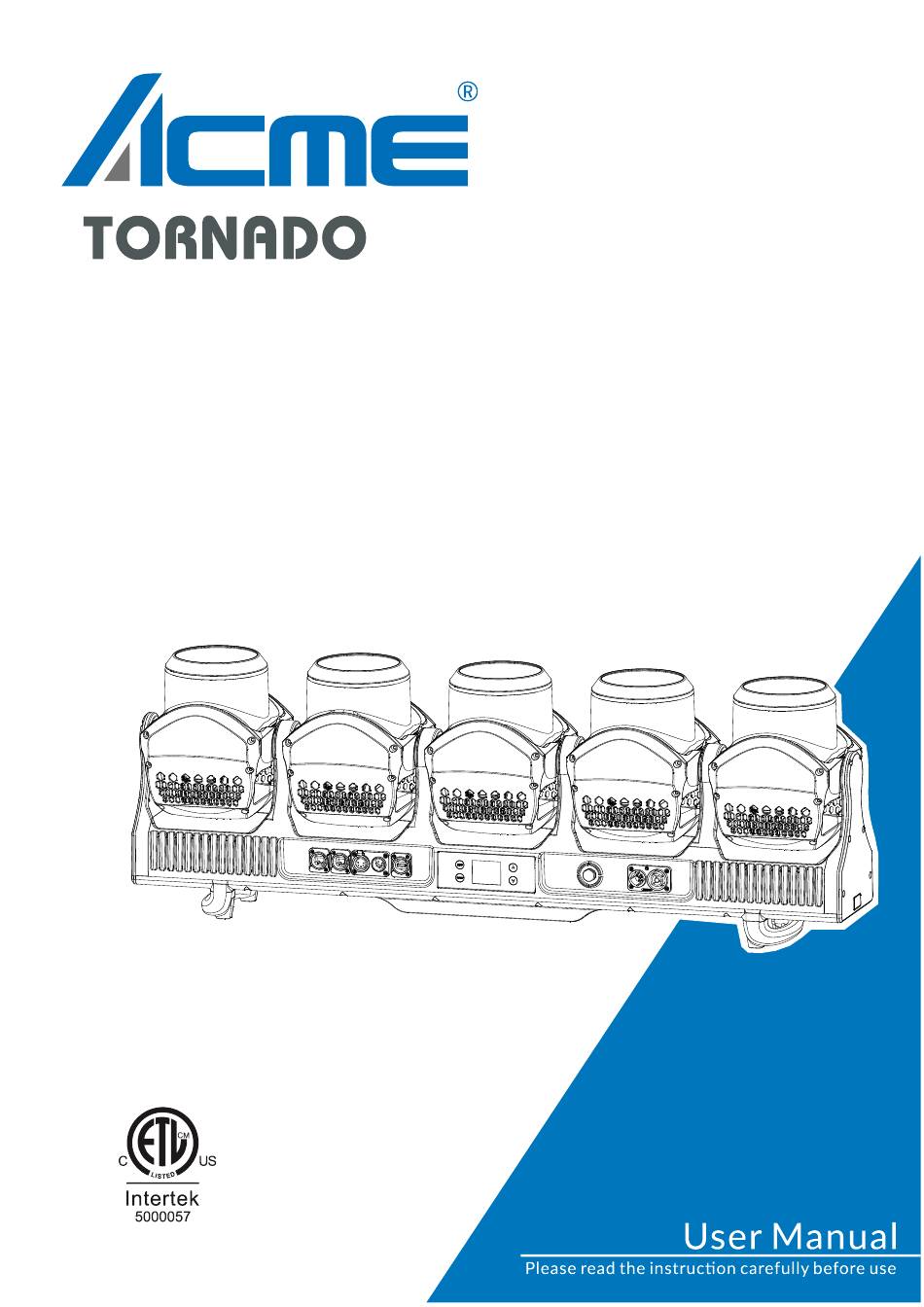

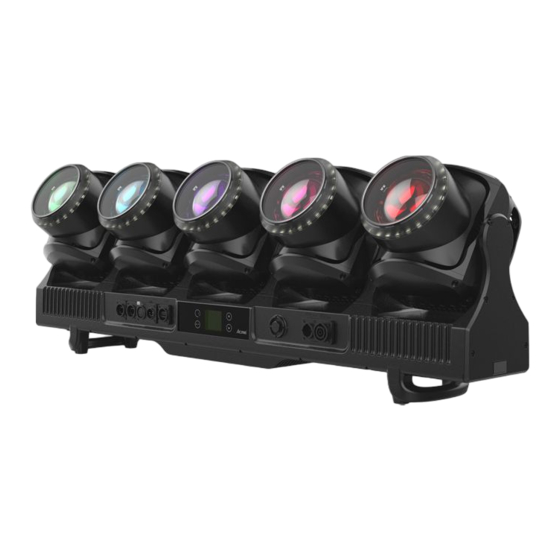

ACME TORNADO User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for ACME TORNADO

Summary of Contents for ACME TORNADO

  • Page 2: Table Of Contents

    CONTENTS 01/ Safety Instructions ....................2 02/ Technical Specifications ..................6 03/ Control Panel ......................8 04/ Fixture Installation ....................9 4.1 Hanging the Fixture ..................10 4.2 Connecting and Aligning Multiple Fixtures ..........11 05/ How To Set The Unit .................... 12 5.1 Main Functions ....................

  • Page 3: 01/ Safety Instructions

    01/ Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 off the mains power immediately. DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...
  • Page 5 01/ Consignes de sécurité Veuillez lire attentivement les instructions qui contiennent des informations importantes sur l'installation, l'utilisation et l'entretien. ATTENTION Veuillez conserver ce guide de l'utilisateur pour une consultation future. Si vous vendez l'appareil à un autre utilisateur, assurez-vous qu'il reçoive également ce manuel d'instructions.
  • Page 6 Assurez-vous que le cordon d'alimentation n'est pas pincé ou endommagé; remplacez-le  immédiatement s'il est endommagé. La température de surface de l'unité peut atteindre 75℃. NE PAS toucher les capots à  mains nues pendant son fonctionnement. Évitez que des liquides inflammables, de l'eau ou du métal ne pénètrent dans l'appareil. Si ...

  • Page 7: 02/ Technical Specifications

    02/ Technical Specifications Power Voltage 100-240V~ 50/60Hz Power Consumption 935W 5x120W RGBL LED Light Source 120x0.5W RGB LED Beam Angle 3°-30° (Beam Section) Field Angle 4°-35° (Beam Section) 0-100% smooth dimming; outstanding strobe effect with variable Dimmer/Strobe speed 62° Tilt 225°...
  • Page 8 Outstanding color mixing effect Motorized zoom Dimensions 1000x192x350mm 39.4"x7.6"x13.8"in Weight 29 kg 63.9 lbs Photometric Diagram (Beam Angle): Photometric Diagram (Field Angle): - 7 -...

  • Page 9: 03/ Control Panel

    03/ Control Panel 1. Display To show the various menus and the selected function MENU To enter into move backward or leave the menu  UP To go backward to move up in the menu 2. Buttons  DOWN To go forward to move down in the menu ENTER To perform the desired functions 3.

  • Page 10: 04/ Fixture Installation

    04/ Fixture Installation  DO install and operate by qualified operator. Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas were unauthorized personnel might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging, removing or servicing.

  • Page 11: Hanging The Fixture

    4.1 Hanging the Fixture - 10 -...

  • Page 12: Connecting And Aligning Multiple Fixtures

    4.2 Connecting and Aligning Multiple Fixtures A. Pull the locking pin and turn it over 90° so it stays unlocked. B. Push the button: automatically the slide comes out completely. C. Place both fixtures against each other in line so that the slide fits into the other fixture. D.

  • Page 13: 05/ How To Set The Unit

    05/ How To Set The Unit 5.1 Main Functions  To access the control menus, press the [MENU] button.  Navigate the menu structure, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 14 MENU SUBMENU OPTIONS Pan Invert Tilt Invert P/T Feedback Linear Square Law Dimmer Curve Inv SQ Law S Curve Fast Dimmer Speed Smooth LED R 125-255 LED G 125-255 LED B 125-255 LED R1 125-255 LED G1 125-255 White Balance LED B1 125-255 ……...
  • Page 15 MENU SUBMENU OPTIONS Standard Cooling Mode Quiet Head Invert CCT Calibration Display Invert Backlight Intensity 1-10 (Default=10) Display Settings °C Temperature Unit °F English Language Chinese Single Auto Test Cycle Mode 1 Mode 2 Clear No/Yes Clear No/Yes 0-255 Pan 1 0-255 Tilt 0-255...
  • Page 16 MENU SUBMENU OPTIONS Ring R1 0-255 Ring G1 0-255 Ring B1 0-255 Ring 0-255 Macro 1 …… …… Ring R5 0-255 Ring G5 0-255 Ring B5 0-255 Ring 0-255 Macro 5 Fixture Use Hour Total LED Hour LED Use Hour LED On Hour LED Hours Reset Password=050...
  • Page 17 DMX Settings Enter the control menu and select DMX Settings, press ENTER. Use the UP/DOWN button to select DMX Address, DMX Channel Mode, No DMX Status, View DMX Value, Connect Option, Network, Art-Net Settings, sACN Settings or Network to DMX. DMX Address Select DMX Address, press ENTER.
  • Page 18 View DMX Value Select View DMX Value, press ENTER. Use UP/DOWN button to select the desired DMX channel, for which the value is to be displayed. To exit the menu, press MENU, or wait 30 seconds. Connect Option Select Connect Option, press ENTER. Use UP/DOWN button to select Auto, DMX, Art-Net or sACN, confirm your selection with ENTER.
  • Page 19 Fixture Settings Enter the control menu and select Fixture Settings, press ENTER. Use the UP/DOWN button to select Pan Invert, Tilt Invert, P/T Feedback, Dimmer Curve, Dimmer Speed, White Balance, LED Refresh Rate, Cooling Mode, Head Invert or CCT Calibration. Pan Invert Select Pan Invert, press ENTER.
  • Page 20 Dimmer Speed Select Dimmer Speed, press ENTER. Use UP/DOWN button to select Fast or Smooth, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. White Balance Select White Balance, press ENTER. Use UP/DOWN button to select LED R, LED G, LED B, LED R1, LED G1, LED B1……...
  • Page 21 CCT Calibration Select CCT Calibration, press ENTER. Use UP/DOWN button to select Off or On, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Display Settings Enter the control menu and select Display Settings, press ENTER. Use the UP/DOWN button to select Display Invert, Backlight Intensity, Temperature Unit or Language.
  • Page 22 Fixture Test Enter the control menu and select Fixture Test, press ENTER. Use the UP/DOWN button to select Auto Test or Manual Test. Auto Test Select Auto Test, press ENTER. Use UP/DOWN button to select Single (the device immediately performs a single automatic self-test) or Cycle (the device immediately performs a cyclic automatic self-test), confirm your selection with ENTER.
  • Page 23 LED Use Hour Select LED Use Hour, press ENTER. Use UP/DOWN button to select Total LED Hour (total time) or LED On Hour (current switch-on time), confirm your selection with ENTER. The total time or current switch-on time is displayed. Use UP/DOWN button to select LED Hours Reset, confirm your selection with ENTER.
  • Page 24 Error Logs Select Error Logs, press ENTER. Use UP/DOWN button to select Fixture Errors, confirm your selection with ENTER. The error list is displayed. Use UP/DOWN button to select Reset Error Log, confirm your selection with ENTER. If you wish to reset the relevant error logs, select Yes. If you do not wish to reset anything, select No.
  • Page 25 All Reset Select All Reset, press ENTER. Use UP/DOWN button to select No or Yes (the device will run built-in program to reset all to their home positions), confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Special Function Enter the control menu and select Special Function, press ENTER.
  • Page 26 RDM functions: Certain menus of the device and functions can be called up via the RDM protocol. The parameter IDs are implemented as follows for different commands: Command Command Command Parameter ID ‘Discovery’ ‘Set’ ‘Get’ DISC_UNIQUE_BRANCH √ DISC_MUTE √ DISC_UN_MUTE √...

  • Page 27: Home Position Adjustment

    5.2 Home Position Adjustment  To access the control menus, press the [MENU] button.  To access the offset menus, long-press the [ENTER] button.  Navigate the offset menus, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 28 Frequency Select Frequency, press ENTER. Use UP/DOWN button to select a value, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Frequency VALUES 900Hz 772~1027 1000Hz 872~1127 1100Hz 972~1227 1200Hz 1072~1327 1300Hz 1172~1427 1400Hz 1272~1527 1500Hz...
  • Page 29 Tilt 1 Select Tilt 1, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. …… Tilt 5 Select Tilt 5, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER.
  • Page 30 LED G Select LED G, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. LED B Select LED B, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.
  • Page 31 LED L1 Select LED L1, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. …… LED R5 Select LED R5, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.

  • Page 32: 06/ Control By Universal Dmx Controller

    06/ Control By Universal DMX Controller 6.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 33: Address Setting

    3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one of the units’ power is disconnected. 4. Each lighting unit needs to have a DMX address to receive the data by the controller. The address number is between 1-512. 5.

  • Page 34: Dmx512 Configuration

    6.3 DMX512 Configuration Please control the fixture by referring to the configurations below. Attentions:  The unit will maintain the last condition until reset if you cut-off the DMX signal. For the channel Function, keep the value for about 3 seconds, then the ...
  • Page 35 TILT 4 0°225° 000-255 000-255 TILT 4 FINE ZOOM 4 WideNarrow 000-255 PAN 5 000-255 0°62° 000-255 PAN 5 FINE TILT 5 000-255 0°225° 000-255 TILT 5 FINE ZOOM 5 000-255 WideNarrow LED RED 0%100% 000-255 LED GREEN 000-255 0%100% LED BLUE 000-255 0%100%...
  • Page 36 095-099 5900K 100-103 5800K 104-108 5700K 109-112 5600K 113-117 5500K 118-121 5400K 122-126 5300K 127-130 5200K 131-135 5100K 136-139 5000K 140-144 4900K 145-148 4800K 149-153 4700K 154-157 4600K 158-162 4500K 163-166 4400K 167-171 4300K 172-175 4200K 176-180 4100K 181-184 4000K 185-189 3900K 190-193...
  • Page 37 080-086 LEE 132 – Medium Blue 087-093 LEE 200 – Double CT Blue 094-100 LEE 161 – State Blue 101-107 LEE 201 – Full CT Blue 108-114 LEE 202 – Half CT Blue 115-121 LEE 117 – Steel Blue 122-128 LEE 353 –...
  • Page 38 DIMMER 0%100% 000-255 000-255 DIMMER FINE LED STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Open Slow Close from Slow to Fast 182-189 Open 190-231 Slow Open Fast Close from Slow to Fast 232-239 Open 240-247...
  • Page 39 1300Hz 1400Hz 1500Hz 2500Hz 4000Hz 5000Hz 6000Hz 10KHz 15KHz 20KHz 25KHz 138-139 Null 140-149 Pan/Tilt Reset 150-159 Effect Reset 160-169 Head Invert: Yes 170-179 Head Invert: No 180-199 Null 200-209 All Reset 210-219 Dimmer Speed: Fast 220-229 Dimmer Speed: Smooth 230-255 Null 71 Channels (Mode 2):...
  • Page 40 000-255 0%100% RING 1 BLUE 000-255 0%100% RING 1 MACRO EFFECT & SPEED 000-015 Null 016-031 Macro Effect 1, Fast to Slow 032-047 Macro Effect 2, Fast to Slow 048-063 Macro Effect 3, Fast to Slow 064-079 Macro Effect 4, Fast to Slow 080-095 Macro Effect 5, Fast to Slow 096-111...
  • Page 41 016-031 Macro Effect 1, Fast to Slow 032-047 Macro Effect 2, Fast to Slow 048-063 Macro Effect 3, Fast to Slow 064-079 Macro Effect 4, Fast to Slow 080-095 Macro Effect 5, Fast to Slow 096-111 Macro Effect 6, Fast to Slow 112-127 Macro Effect 7, Fast to Slow 128-143...
  • Page 42 112-127 Macro Effect 7, Fast to Slow 128-143 Macro Effect 8, Fast to Slow 144-159 Macro Effect 9, Fast to Slow 160-175 Macro Effect 10, Fast to Slow 176-191 Macro Effect 11, Fast to Slow 192-207 Macro Effect 12, Fast to Slow 208-223 Macro Effect 13, Fast to Slow 224-239...
  • Page 43 208-223 Macro Effect 13, Fast to Slow 224-239 Macro Effect 14, Fast to Slow 240-255 Macro Effect 15, Fast to Slow PAN 5 000-255 0°62° 000-255 PAN 5 FINE TILT 5 000-255 0°225° 000-255 TILT 5 FINE LED 5 RED 000-255 0%100% LED 5 GREEN...
  • Page 44 000-255 DIMMER FINE LED STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Open Slow Close from Slow to Fast 182-189 Open 190-231 Slow Open Fast Close from Slow to Fast 232-239 Open 240-247 Random Strobe from Slow to Fast 248-255 Open...
  • Page 45 2500Hz 4000Hz 5000Hz 6000Hz 10KHz 15KHz 20KHz 25KHz 138-139 Null 140-149 Pan/Tilt Reset 150-159 Effect Reset 160-169 Head Invert: Yes 170-179 Head Invert: No 180-199 Null 200-209 All Reset 210-219 Dimmer Speed: Fast 220-229 Dimmer Speed: Smooth 230-255 Null - 44 -...

  • Page 46: 07/ Error Information

    07/ Error Information Error codes are shown continuously in the display when the fixture fails and they will not disappear until the fixture is repaired. CPU-B/C/D/E/F/G/H Error Check whether the 485 (DATA) leads on the PCB board are installed in place or disconnected.
  • Page 47 Pan 1/2/3/4/5 Reset Error Check whether the position of the pan where the magnet is installed falls off or is damaged. Check whether there are obstacles in the pan operating range. Check whether the Hall element on the pan is damaged. Check whether the lead connecting the Hall element on the pan and the PCB board is in poor contact or disconnected.
  • Page 48 Tilt 1/2/3/4/5 Reset Error Check whether the position of the tilt where the magnet is installed falls off or is damaged. Check whether there are obstacles in the tilt operating range. Check whether the Hall element on the tilt is damaged. Check whether the lead connecting the Hall element on the tilt and the PCB board is in poor contact or disconnected.
  • Page 49 Zoom 1/2/3/4/5 Reset Error Check whether the position of the zoom where the magnet is installed falls off or is damaged. Check whether there are obstacles in the zoom operating range. Check whether the Hall element on the zoom is damaged. Check whether the lead connecting the Hall element on the zoom and the PCB board is in poor contact or disconnected.

  • Page 50: 08/ Troubleshooting

    08/ Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for troubleshooting: A. The unit does not work, no light and the fan does not work  Check the connected power.  Measure the voltage. ...
