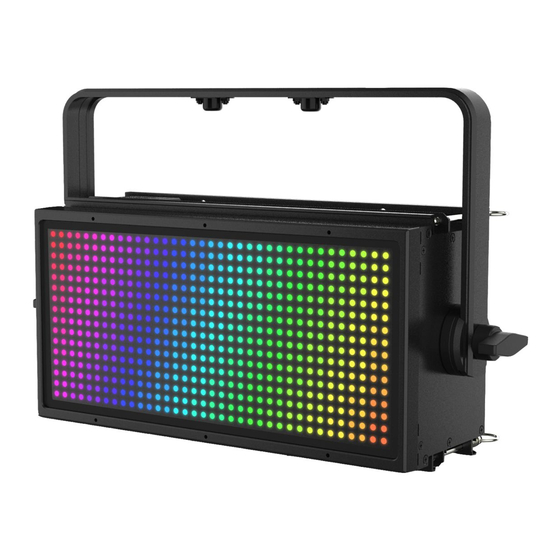

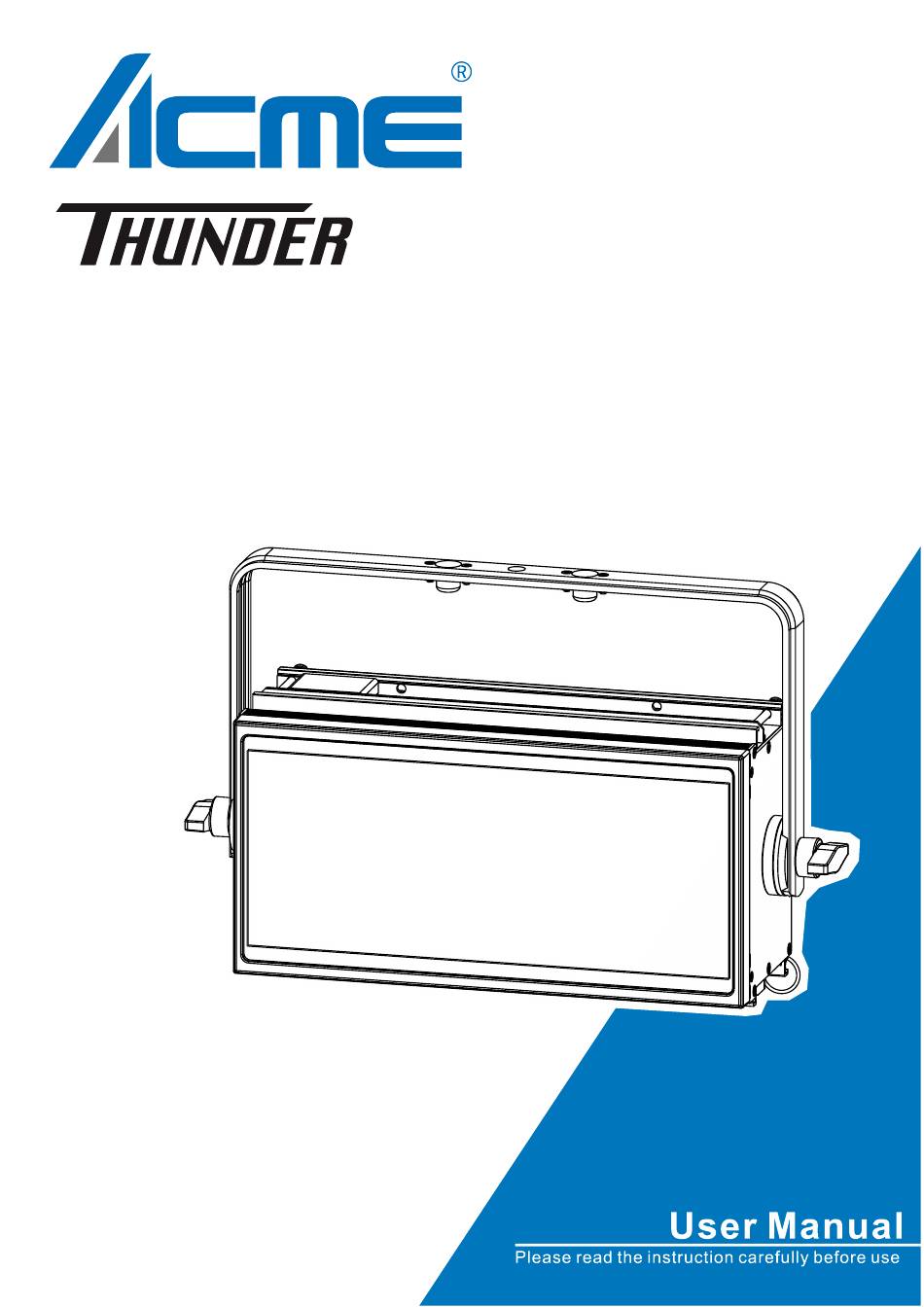

ACME Thunder User Manual

Hide thumbs Also See for Thunder:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for ACME Thunder

Summary of Contents for ACME Thunder

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instruction ................... 2 2. Technical Specifications ................. 4 3. Installation and Connection ................5 4. Control Panel ....................8 5. How To Set The Unit ..................9 5.1 Main Function ..................9 5.2 Home Position Adjustment ..............15 6.

  • Page 3: Safety Instruction

    1. Safety Instruction Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 off the mains power immediately. DO NOT operate in dirty or dusty environment, do clean fixtures regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid power wires together twist other cables. ...

  • Page 5: Technical Specifications

    Protection Rating: IPX4 Features: Variable CTO High brightness, smooth color mixing, powerful wash effect 3 x led zones can be controlled individually Equipped with a special patented plug structure, can be easily combined with each other or with other THUNDER series...

  • Page 6: Installation And Connection

    Dimension/Weight: 503x183x318mm, 10.5kgs 19.8"x7.2"x12.5"in, 23.1lbs Photometric Diagram: 3. Installation and Connection The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight.
  • Page 7 Installation mode of the hanging bracket: Installation mode of a single angle-adjustable equipment’s hanging bracket: Installation mode of the bolt: Assembly method between two equipment: Installation mode of the big hanging bracket (operational):...
  • Page 8 Assembly method between multiple equipment: Warning: no more than 7 equipment can be spliced vertically...

  • Page 9: Control Panel

    4. Control Panel 1. Display: To show the various menus and the selected function 2. Button: MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN To go forward to move down in the menu ENTER To perform the desired functions 3.

  • Page 10: How To Set The Unit

    5. How To Set The Unit 5.1 Main Function Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the required function is shown on the monitor. Select the function by the ENTER button. Use the UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return to the last menu.
  • Page 12 DMX Settings To select DMX Settings, press the ENTER button to confirm. Use the UP/DOWN button to select DMX Address, Channel Mode or No DMX Status. DMX Address To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 509/505/505/504/497, press the ENTER button to store.
  • Page 13 Dimmer Curve To select Dimmer Curve, press the ENTER button to confirm. Use the UP/DOWN button to select Linear, Square Law, Inv SQ Law or S Curve, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. Optically Linear: The increase in light intensity appears to be linear as DMX value is increased Square Law: Light intensity control is finer at low levels and coarser at high levels Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels...
  • Page 14 Display Invert Select Display Invert, press the ENTER button to confirm. Use the UP/DOWN button to select Off(normal display) or On(invert display), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. Temperature Unit Select Temperature Unit, press the ENTER button to confirm.
  • Page 15 Information To select Information, press the ENTER button to confirm. Use the UP/DOWN button to select Temperature, Fan State, Fixture Use Hour, LED Use Time or Firmware Version. Temperature Select Temperature, press the ENTER button to confirm, use the UP/DOWN button to select CPU, LED1, LED2 or LED3, fixture temperature will show on the display, press the MENU button to exit.

  • Page 16: Home Position Adjustment

    RDM FUNCTIONS Select the MANUFACTURER menu to display the manufacturer of the fixture. Select the SOFTWARE VERSION menu and the program version number of the fixture will be displayed. Select the DMX START ADDRESS menu to change the DMX 512 address (001-512). Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
  • Page 17 Red1 Enter offset mode, Select Red1, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 1000, press the ENTER button to store. Press the MENU button to exit. Red2 Enter offset mode, Select Red2, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 1000, press the ENTER...
  • Page 18 Blue2 Enter offset mode, Select Blue2, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 1000, press the ENTER button to store. Press the MENU button to exit. Blue3 Enter offset mode, Select Blue3, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 1000, press the ENTER...

  • Page 19: Control By Universal Dmx Controller

    Blue Enter offset mode, Select Blue, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 1000, press the ENTER button to store. Press the MENU button to exit. White Enter offset mode, Select White, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 1000, press the ENTER...

  • Page 20: Address Setting

    4. Each lighting unit needs to have a DMX address to receive the data by the controller. The address number is between 1-512. 5. The end of the DMX 512 system should be terminated to reduce signal errors. 6. 3 pin XLR connectors are more popular than 5 pins XLR. 3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+) 5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.

  • Page 21: Dmx512 Configuration

    6.3 DMX512 Configuration Please refer to below configurations to control the fixtures Attentions: 1. The unit will maintain the last condition until reset if you cut-off the DMX signal. 2. For the channel Function, keep the value for about 3 seconds, then the corresponding function will take into effect.
  • Page 22 8 Channels (Mode 3): CHANNEL DMX VALUE FUNCTION 000-255 0%100% GREEN 000-255 0%100% BLUE 000-255 0%100% WHITE 000-255 0%100% (RGBW) DIMMER INTENSITY 000-255 0%100% STROBE DURATION 000-255 0%100% Blackout 000-006 Strobe Rate 007-255 No Effect 000-005 006-050 Ramp Up 051-100 Ramp Down 101-150 Ramp UpDown...
  • Page 23 WHITE 000-255 0%100% WHITE FINE 000-255 LINEAR CTO(8000K-2500K) Null 001-004 8000K 005-009 7900K 010-013 7800K 014-018 7700K 019-022 7600K 023-027 7500K 028-031 7400K 032-036 7300K 037-040 7200K 041-045 7100K 046-049 7000K 050-054 6900K 055-058 6800K 059-063 6700K 064-067 6600K 068-072 6500K 073-076 6400K...
  • Page 24 172-175 4200K 176-180 4100K 181-184 4000K 185-189 3900K 190-193 3800K 194-198 3700K 199-202 3600K 203-207 3500K 208-211 3400K 212-216 3300K 217-220 3200K 221-225 3100K 226-229 3000K 230-234 2900K 235-238 2800K 239-243 2700K 244-247 2600K 248-255 2500K 16 Channels (Mode 5): CHANNEL DMX VALUE FUNCTION...

  • Page 25: Error Information

    GREEN3 000-255 0%100% BLUE3 000-255 0%100% WHITE3 000-255 0%100% (RGBW) DIMMER INTENSITY 000-255 0%100% STROBE DURATION 000-255 0%100% 000-006 Blackout 007-255 Strobe Rate 000-005 No Effect Ramp Up 006-050 Ramp Down 051-100 101-150 Ramp UpDown 151-200 Lightning 201-255 Random 7. Error Information 1.
  • Page 26 3．Fan3 can’t stop Check if the fan circuit on the motherboard breaks down. Check if the component is damaged. 4．Fan3 speed too slow Check if the fan is out of order. Check if there are other interference items in the fan operating range. 5．Fan3 speed too fast Check if the fan is out of order.

  • Page 27: Troubleshooting

    8. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connect power and main fuse. 2.
  • Page 28 Innovation, Quality, Performance...
