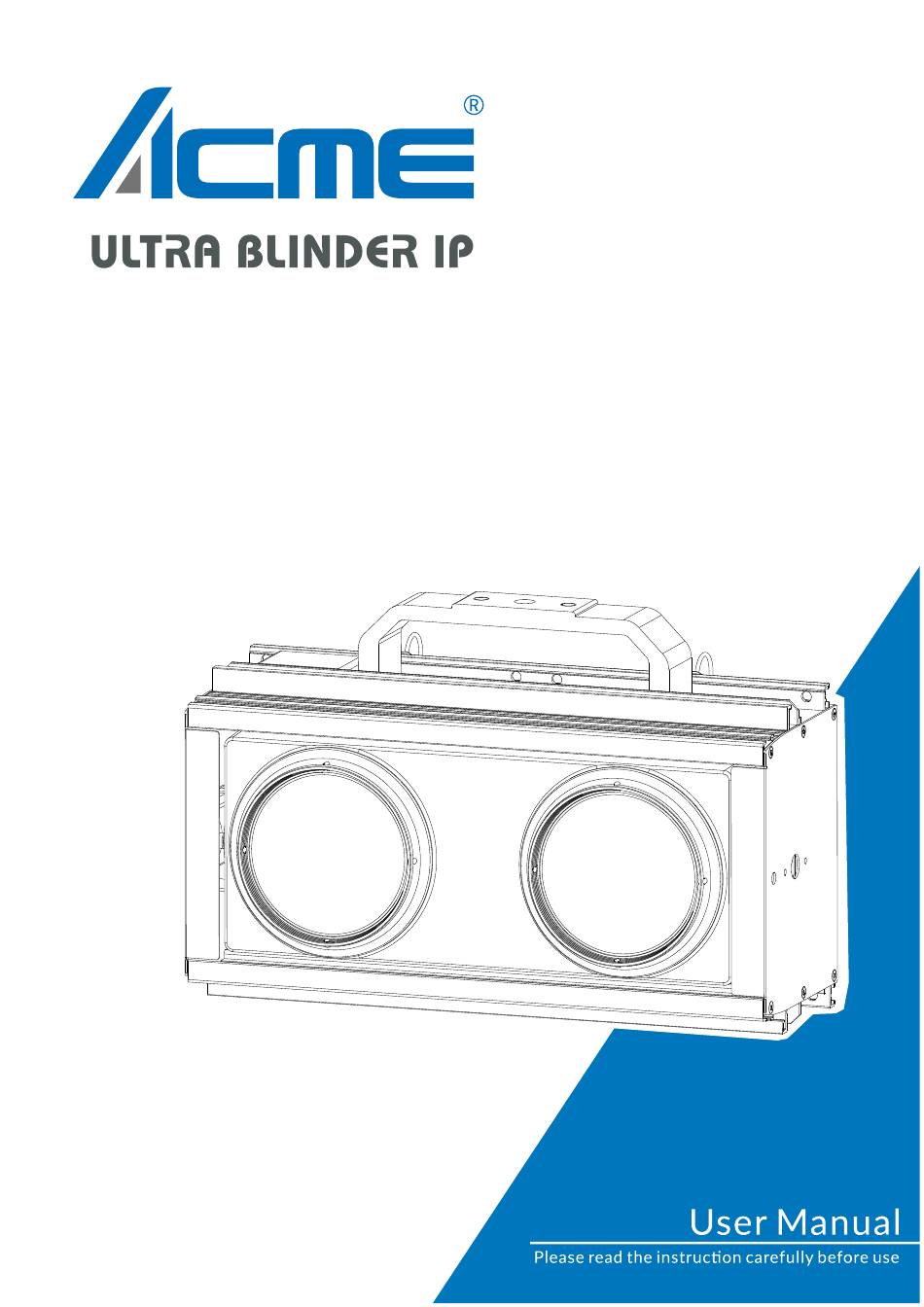

ACME ULTRA BLINDER IP User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ULTRA BLINDER IP and is the answer not in the manual?

Questions and answers

Related Manuals for ACME ULTRA BLINDER IP

Summary of Contents for ACME ULTRA BLINDER IP

  • Page 2 REV A 08/30/2024 CONTENTS 01/ Safety Information ....................2 02/ Technical Specifications ..................6 03/ Overview ........................8 04/ Connecting Power and Data ................9 4.1 Connecting Power ................... 9 4.2 Connecting Data.................... 10 05/ Fixture Installation ....................11 06/ Operation ....................... 23 6.1 Control Menu ....................
  • Page 3 REV A 08/30/2024 01/ Safety Information Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 REV A 08/30/2024 Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut  off the mains power immediately. DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock. ...
  • Page 5 REV A 08/30/2024 01/ Consignes de sécurité Veuillez lire attentivement les instructions qui contiennent des informations importantes sur l'installation, l'utilisation et l'entretien. ATTENTION Veuillez conserver ce guide de l'utilisateur pour une consultation future. Si vous vendez l'appareil à un autre utilisateur, assurez-vous qu'il reçoive également ce manuel d'instructions.
  • Page 6 REV A 08/30/2024 Assurez-vous que le cordon d'alimentation n'est pas pincé ou endommagé; remplacez-le  immédiatement s'il est endommagé. La température de surface de l'unité peut atteindre 65℃. NE PAS toucher les capots à  mains nues pendant son fonctionnement. Évitez que des liquides inflammables, de l'eau ou du métal ne pénètrent dans l'appareil.
  • Page 7 REV A 08/30/2024 Les sources externes de rayons lumineux provenant de la lumière directe du soleil ou de  toute autre source de lumière forte, qui pénètrent la lentille avant des appareils d'éclairage, peuvent causer de graves dommages internes. N'exposez PAS la lentille frontale du projecteur à...
  • Page 8 REV A 08/30/2024 Dimensions 400x201x263mm 15.7"x7.9"x10.4" Weight 8.2 kg 18 lbs Photometric Diagram (Beam Angle): Photometric Diagram (Field Angle): - 7 -...
  • Page 9 REV A 08/30/2024 03/ Overview 1. Display To show the various menus and the selected function MENU To enter into move backward or leave the menu  UP To go backward to move up in the menu 2. Buttons  DOWN To go forward to move down in the menu ENTER To perform the desired functions...
  • Page 10 REV A 08/30/2024 04/ Connecting Power and Data 4.1 Connecting Power This fixture can operate on any 100-240Vac; 50/60Hz AC mains power supply. The maximum power consumption is 235W. The fixture must be grounded/earthed and able to be isolated from AC power. The AC power supply must incorporate a fuse or circuit breaker for fault protection.
  • Page 11 REV A 08/30/2024 4.2 Connecting Data The fixture is equipped with 5-pin (or 3-pin) XLR sockets for DMX input and output. Use a high-quality DMX cable designed for RS-485 and 5-pin (or 3-pin) XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another. For outdoor installations, use only IP-rated XLR connectors suitable for outdoor use.
  • Page 12 REV A 08/30/2024 05/ Fixture Installation The fixture is IP66-rated and designed for both indoor and outdoor events. This means that it is protected from:  Dust, to the degree that dust cannot enter the device in sufficient quantities as to interfere with its operation.
  • Page 13 REV A 08/30/2024 Steps for installing the small hanging bracket (supplied): - 12 -...
  • Page 14 REV A 08/30/2024 Install the large hanging bracket (sold separately): a. Place the pivot cups against the holes on both sides of the fixture in line and tighten four screws. b. Place the large hanging bracket against the holes on both sides of the fixture in line, insert and tighten the knobs.
  • Page 15 REV A 08/30/2024 Steps for installing omega bracket (sold separately) and clamp (by others): Steps for installing clamp (by others): - 14 -...
  • Page 16 REV A 08/30/2024 Connecting and Aligning Multiple Fixtures: 1. Connecting and aligning fixtures horizontally: Note: All locking pins are fixed to fixture by a short retaining cable. a. Remove the four locking pins from the fixtures and press the two sliders to pop them out. b.
  • Page 17 REV A 08/30/2024 c. Install the small hanging brackets to the fixtures. Hang the fixtures by attaching and securing the hanging clamps to truss. d. If you need to align more fixtures, repeat the steps above. e. To detach the fixtures, simply reverse the steps mentioned above. - 16 -...
  • Page 18 REV A 08/30/2024 2. Connecting and aligning fixtures vertically: Note: All locking pins are fixed to fixture by a short retaining cable. a. Remove the four locking pins from the fixtures. b. Align and fit the fixtures together. Insert and lock the locking pins. - 17 -...
  • Page 19 REV A 08/30/2024 c. Install the small hanging bracket to the fixture. Hang the fixtures by attaching and securing the hanging clamps to truss. d. If you need to align more fixtures, repeat the steps above. e. To detach the fixtures, simply reverse the steps mentioned above. - 18 -...
  • Page 20 REV A 08/30/2024 3. Connecting and aligning fixtures into the following shapes: Note: All locking pins are fixed to fixture by a short retaining cable. a. Remove the four locking pins from the fixtures and press the two sliders to pop them out. b.
  • Page 21 REV A 08/30/2024 c. Prepare another fixture and remove the four locking pins from the fixtures. d. Center, align and fit the third fixture with the two previously connected fixtures together. Insert and lock the locking pins. - 20 -...
  • Page 22 REV A 08/30/2024 e. Install the small hanging bracket(s) to the fixture(s). Hang the fixtures by attaching and securing the hanging clamps to truss. f. If you need to align more fixtures, repeat the steps above. g. To detach the fixtures, simply reverse the steps mentioned above. - 21 -...
  • Page 23 REV A 08/30/2024 The large double vertical hanging bracket installation: - 22 -...
  • Page 24 REV A 08/30/2024 06/ Operation 6.1 Control Menu  To access the control menus, press the [MENU] button.  Navigate the menu structure, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 25 REV A 08/30/2024 MAIN MENU SUBMENU CHOICES/VALUES Blackout No DMX Status Hold Manual View DMX Value Linear Square Law Dimmer Curve Inv SQ Law S Curve Fast Smooth Dimmer Speed Tungsten All Tungsten 125-255 Green 125-255 Blue 125-255 Amber 125-255 Red 1 125-255 Green 1...
  • Page 26 REV A 08/30/2024 MAIN MENU SUBMENU CHOICES/VALUES Display Invert °C Display Settings Temperature Unit °F English Language Chinese Single Auto Test Cycle Mode 1 Mode 2 Clear No/Yes Clear No/Yes 0-255 Red 1 0-255 Green 0-255 Green 1 0-255 Blue 0-255 Blue 1 0-255...
  • Page 27 REV A 08/30/2024 MAIN MENU SUBMENU CHOICES/VALUES Send Upgrade Special Function Firmware Restore Factory Settings DMX Settings Enter the control menu and select DMX Settings, press ENTER. Use the UP/DOWN button to select DMX Address, Channel Mode, No DMX Status or View DMX Value. DMX Address Select DMX Address, press ENTER.
  • Page 28 REV A 08/30/2024 Channel Mode Select Channel Mode, press ENTER. Use UP/DOWN button to select between 9 CH, 11 CH, 14 CH, 16 CH, 1 CH (WW), 2 CH (WW), 4 CH (WW), 6 CH (WW), 6 CH (RGBW), 7 CH (RGBW) and 10 CH (RGBW), confirm your selection with ENTER.
  • Page 29 REV A 08/30/2024 Fixture Settings Enter the control menu and select Fixture Settings, press ENTER. Use the UP/DOWN button to select Dimmer Curve, Dimmer Speed, White Balance or LED Refresh Rate. Dimmer Curve Select Dimmer Curve, press ENTER. Use UP/DOWN button to select Linear, Square Law, Inv SQ Law or S Curve, confirm your selection with ENTER.
  • Page 30 REV A 08/30/2024 LED Refresh Rate Select LED Refresh Rate, press ENTER. Use UP/DOWN button to select 900Hz, 1000Hz, 1100Hz, 1200Hz, 1300Hz, 1400Hz, 1500Hz, 2500Hz, 4000Hz, 5000Hz, 6000Hz, 10KHz, 15KHz, 20KHz or 25KHz, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Display Settings Enter the control menu and select Display Settings, press ENTER.
  • Page 31 REV A 08/30/2024 Fixture Test Enter the control menu and select Fixture Test, press ENTER. Use the UP/DOWN button to select Auto Test or Manual Test. Auto Test Select Auto Test, press ENTER. Use UP/DOWN button to select Single (the device immediately performs a single automatic self-test) or Cycle (the device immediately performs a cyclic automatic self-test), confirm your selection with ENTER.
  • Page 32 REV A 08/30/2024 LED Use Hour Select LED Use Hour, press ENTER. Use UP/DOWN button to select Total LED Hour (total time) or LED On Hour (current switch-on time), confirm your selection with ENTER. The total time or current switch-on time is displayed. Use UP/DOWN button to select LED Hours Reset, confirm your selection with ENTER.
  • Page 33 REV A 08/30/2024 Error Logs Select Error Logs, press ENTER. Use UP/DOWN button to select Fixture Errors, confirm your selection with ENTER. The error list is displayed. Use UP/DOWN button to select Reset Error Log, confirm your selection with ENTER. If you wish to reset the relevant error logs, select Yes.
  • Page 34 REV A 08/30/2024 Firmware Restore Select Firmware Restore, press ENTER. If you wish to restore fixture’s firmware, select Yes. Once Yes is selected, the display will show “Upgrading, Please Wait...”. A percentage bar will also be displayed. After the update is complete, the fixture will perform a reset (this can take some time).
  • Page 35 REV A 08/30/2024 RDM functions: Certain menus of the device and functions can be called up via the RDM protocol. The parameter IDs are implemented as follows for different commands: Command Command Command Parameter ID ‘Discovery’ ‘Set’ ‘Get’ DISC_UNIQUE_BRANCH √ DISC_MUTE √...
  • Page 36 REV A 08/30/2024 6.2 Home Position Adjustment  To access the control menus, press the [MENU] button.  To access the offset menus, long-press the [ENTER] button.  Navigate the offset menus, using the [ENTER], [ UP] and [ DOWN] buttons. ...
  • Page 37 REV A 08/30/2024 Frequency Select Frequency, press ENTER. Use UP/DOWN button to select a value, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Frequency VALUES 900Hz 772~1027 1000Hz 872~1127 1100Hz 972~1227 1200Hz 1072~1327 1300Hz 1172~1427...
  • Page 38 REV A 08/30/2024 Blue Select Blue, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Amber Select Amber, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.
  • Page 39 REV A 08/30/2024 Amber 1 Select Amber 1, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. White 1 Select White 1, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.
  • Page 40 REV A 08/30/2024 White 2 Select White 2, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. - 39 -...
  • Page 41 REV A 08/30/2024 07/ Configuring the Device for DMX Control 7.1 Address Setting All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. Incorrect settings will result in unpredictable responses from the lighting controller.
  • Page 42 REV A 08/30/2024 7.2 DMX Protocol 9 CH / 11 CH: CHANNEL VALUE FUNCTION 11ch 000-255 0%100% GREEN 000-255 0%100% BLUE 000-255 0%100% AMBER 000-255 0%100% WARM WHITE 000-255 0%100% COLOR MACRO 000-009 Null 010-016 Color 1 017-023 Color 2 024-030 Color 3 031-037...
  • Page 43 REV A 08/30/2024 199-205 Color 28 206-212 Color 29 213-219 Color 30 220-226 Color 31 227-233 Color 32 234-255 Color 33 Null 001-004 8000K 005-009 7900K 010-013 7800K 014-018 7700K 019-022 7600K 023-027 7500K 028-031 7400K 032-036 7300K 037-040 7200K 041-045 7100K 046-049...
  • Page 44 REV A 08/30/2024 176-180 4100K 181-184 4000K 185-189 3900K 190-193 3800K 194-198 3700K 199-202 3600K 203-207 3500K 208-211 3400K 212-216 3300K 217-220 3200K 221-225 3100K 226-229 3000K 230-234 2900K 235-238 2800K 239-243 2700K 244-247 2600K 248-255 2500K DIMMER 000-255 0%100% 000-255 DIMMER FINE STROBE...
  • Page 45 REV A 08/30/2024 1400Hz 1500Hz 2500Hz 4000Hz 5000Hz 6000Hz 10KHz 15KHz 20KHz 25KHz 138-139 Null 140-209 Null 210-219 Dimmer Speed: Fast 220-229 Dimmer Speed: Smooth 230-239 Dimmer Speed: Tungsten 240-249 Dimmer Speed: All Tungsten 250-255 Null 14 CH / 16 CH: CHANNEL VALUE FUNCTION...
  • Page 46 REV A 08/30/2024 010-016 Color 1 017-023 Color 2 024-030 Color 3 031-037 Color 4 038-044 Color 5 045-051 Color 6 052-058 Color 7 059-065 Color 8 066-072 Color 9 073-079 Color 10 080-086 Color 11 087-093 Color 12 094-100 Color 13 101-107 Color 14...
  • Page 47 REV A 08/30/2024 055-058 6800K 059-063 6700K 064-067 6600K 068-072 6500K 073-076 6400K 077-081 6300K 082-085 6200K 086-090 6100K 091-094 6000K 095-099 5900K 100-103 5800K 104-108 5700K 109-112 5600K 113-117 5500K 118-121 5400K 122-126 5300K 127-130 5200K 131-135 5100K 136-139 5000K 140-144 4900K...
  • Page 48 REV A 08/30/2024 STROBE 000-005 Open 006-123 Flash Rate, Slow to Fast 124-127 Open 128-185 2 LEDs Random Strobe at the same time, Slow to Fast 186-190 Open 191-249 2 LEDs Random Strobe respectively, Slow to Fast 250-255 Open SPECIAL FUNCTION (To activate following functions, stop in DMX value for at least 3 seconds.) 000-029...
  • Page 49 REV A 08/30/2024 (WW) 1 CH / 2 CH / 4 CH / 6 CH: CHANNEL VALUE FUNCTION LED 1 DIMMER 000-255 0%100% LED 1 DIMMER FINE 000-255 0%100% LED 2 DIMMER 0%100% 000-255 LED 2 DIMMER FINE 000-255 0%100% DIMMER 000-255 0%100%...
  • Page 50 REV A 08/30/2024 (RGBW) 6 CH / 7 CH / 10 CH: CHANNEL VALUE FUNCTION 10ch 000-255 0%100% GREEN 000-255 0%100% BLUE 0%100% 000-255 WHITE 000-255 0%100% RED 1 000-255 0%100% GREEN 1 000-255 0%100% BLUE 1 000-255 0%100% WHITE 1 000-255 0%100% RED 2...
  • Page 51 REV A 08/30/2024 032-039 Color 4 040-047 Color 5 048-055 Color 6 056-063 Color 7 064-071 Color 8 072-079 Color 9 080-087 Color 10 088-095 Color 11 096-103 Color 12 104-111 Color 13 112-119 Color 14 120-127 Color 15 128-135 Color 16 136-143 Color 17...
  • Page 52 REV A 08/30/2024 08/ Error Information Error codes are shown continuously in the display when the fixture fails and they will not disappear until the fixture is repaired. CPU-B Error Check whether the 485 (DATA) leads on the PCB board are installed in place or disconnected.
  • Page 53 REV A 08/30/2024 Position of cooling fans: Cooling Fans Part Number Position Fan 1 3014003021 DC 12V 0.9W Motherboard Fan 2 - 52 -...
  • Page 54 REV A 08/30/2024 09/ Troubleshooting Problem Potential cause(s) Remedies Confirm that the power is switched No power to the fixture. Fixture does not respond on and cables are plugged in. or appears to be off. No output from PSU. Replace the PSU. Fixture suddenly turned Check the power supply, switches Power was turned off.
  • Page 55 REV A 08/30/2024 10/ Fixture Cleaning Regular cleaning is very important for fixture life and performance. Buildup of dust, dirt, smoke particles, fog fluid residues, etc. degrades the fixture’s light output and cooling ability. Cleaning schedules for lighting fixtures vary greatly depending on the operating environment. It is therefore impossible to specify precise cleaning intervals for the fixture.
  • Page 56 REV A 08/30/2024 11/ Approvals and Certifications This product has been tested and found to comply with the following standards: - 2014/30/EU - Electromagnetic Compatibility (EMC) - 2014/35/EU - Low Voltage Directive (LVD) - cETLus Approved (Control #5000057) - UK SI 2016 No. 1091: Electromagnetic Compatibility Regulations 2016 - UK SI 2016 No.
