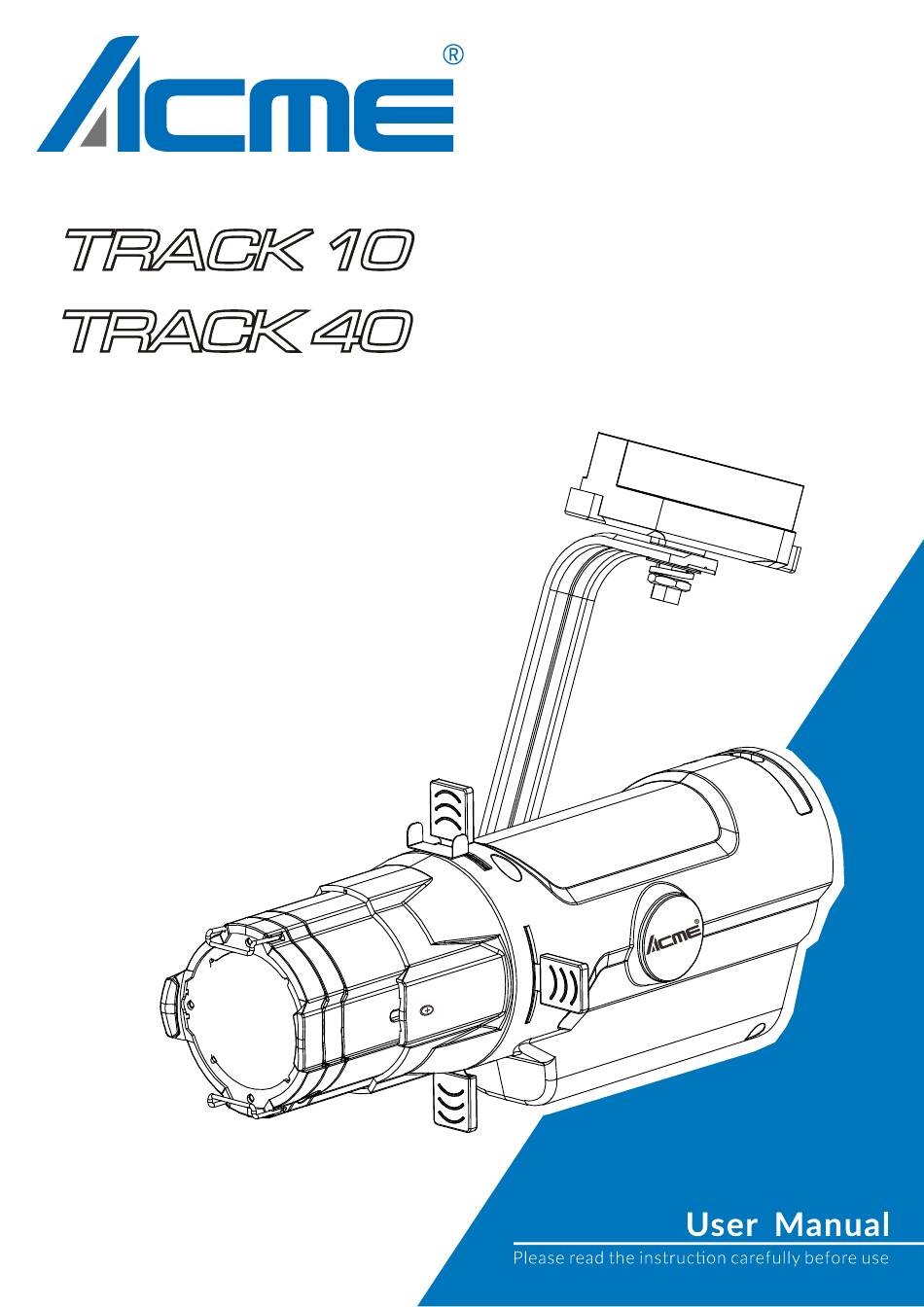

ACME TRACK 10 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRACK 10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACME TRACK 10

Summary of Contents for ACME TRACK 10

  • Page 2: Specifications

    Features E-10T/E-40T is Track Version, uniform light, sharp image edge, and self-locking focus lens. The product takes advantage of the heat pipe heat conduction and housing feature to dissipate heat without fan to prolong LED life. Specifications  Power Voltage: AC 85~127V, 50/60Hz AC 175~264V, 50/60Hz ...
  • Page 3  Photometric diagram: E-10T Distance(m) Distance(m) 19 ° 26 ° 36 ° 50 ° 2002 1898 CW/WW 0.68 1.34 2.01 2.68 Diameter(m) 1095 CW/WW 0.94 1.85 2.78 3.70 Diameter(m) СW/WW 1.31 2.59 3.91 5.19 Diameter(m) CW/WW 1.87 7.46 3.73 5.59 Diameter(m)
  • Page 4 E-40T Distance(m) 19 ° 26 ° 36 ° 50 ° 2920 2758 CW/WW 0.68 1.34 2.01 2.68 Diameter(m) 1950 1842 CW/WW 0.94 1.85 2.78 3.70 Diameter(m) 1170 1010 CW/WW 1.31 2.59 3.91 5.19 Diameter(m) CW/WW 1.87 3.73 5.59 7.46 Diameter(m) How To Change The Gobo At first, put the gobo by hand as the arrow into the gobo gel splint, and insert the gobo gel splint into the slot of the unit, please turn the hand...
  • Page 5 The Color Gel Splint Installation At first, please push the Lock Cap button by hand as the arrow, and move away the Lock as the arrow, then insert the color gel splint into the inside slot from topside, and fasten the lock. How To Change The Focus Lens At first, please push the screws on both side of the fixture by hand as the arrow, and move away the focus lens silently by hand as the arrow.

  • Page 6: Installation

    Then insert the focus lens as the arrow silently, and insert the screws in place by hand as the arrow, and fasten the lens. Installation Tumbler Switch Three wire Connector Twist Switch Tumbler Switch: Rotae 90 degrees clockwise ： Twist Switch OFF First fix the track on the ceiling with the screws，put the dial on “OFF”...
  • Page 7 Put the three wire connector into the track groove, the lamp body is fixed. Then rotate the tumbler switch 90 degrees counter clockwise and make sure the twist switch on“ON”. After the lamp body is fixed, it can be energized.

  • Page 8: Troubleshooting

    Reference Diagram for choice of connectors Troubleshooting The fixture does not work, no light 1. Check the connection of power and main fuse. 2. Measure the mains voltage on the main connector. Fixture Cleansing The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output.
  • Page 11 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2014/30/EU. EN 55032: 2015; EN 61000-3-2: 2014; EN 61000-3-3: 2013; EN 55103-2: 2009. &...
  • Page 12 Innovation, Quality, Performance...

This manual is also suitable for:

Track 40
