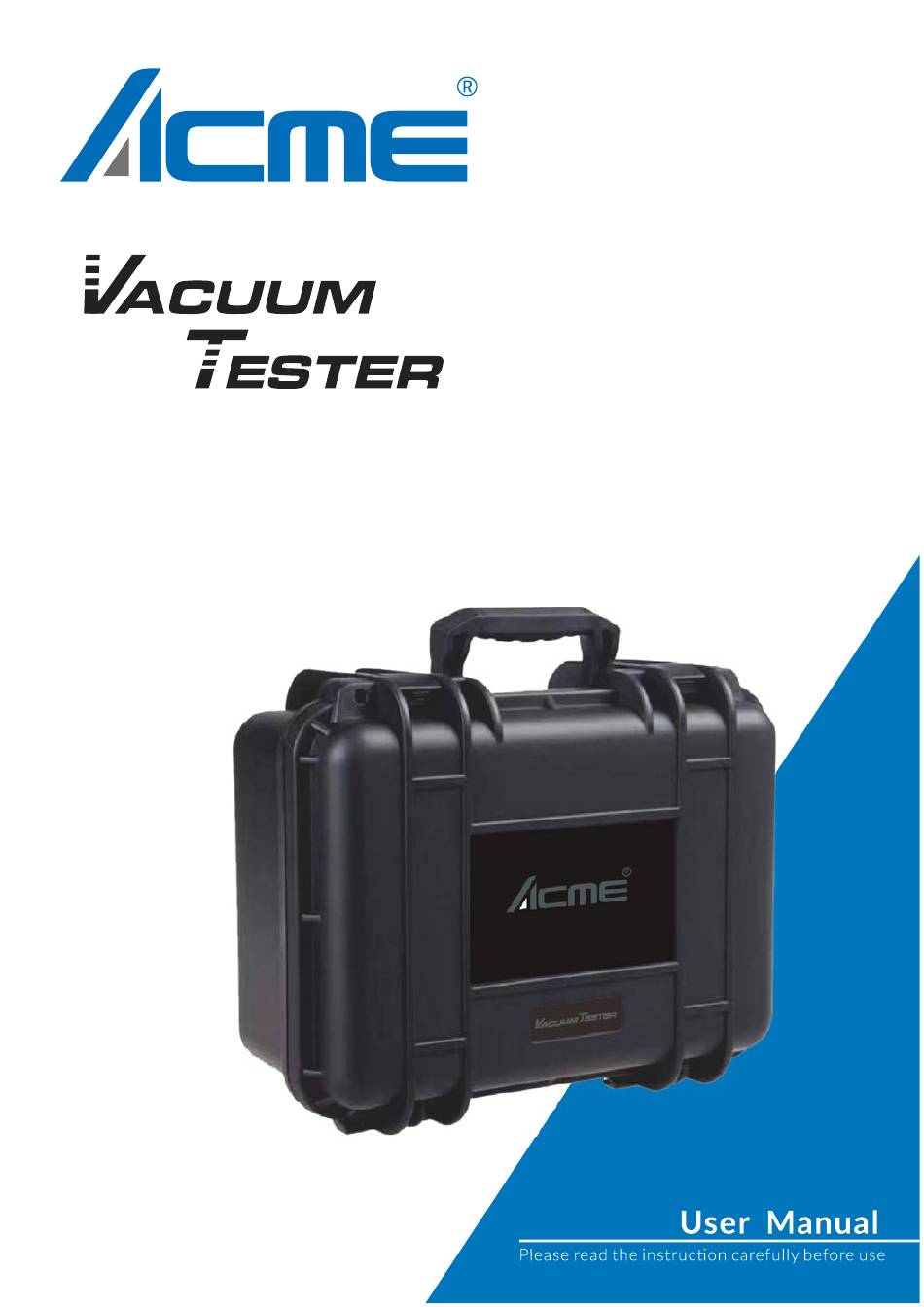

ACME V-BOX User Manual

Vacuum tester
Hide thumbs Also See for V-BOX:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for ACME V-BOX

Summary of Contents for ACME V-BOX

  • Page 2: Table Of Contents

    1. Technical Specifications ................. 2 2. Control Panel ..................3 3. Connections ................... 4 4. Test Instructions ..................5 4.1 ACME luminaire pressure test ............5 4.2 User-defined pressure test ............... 7 4.3 Air leakage test................. 9 5. System Setting ..................10...

  • Page 3: Technical Specifications

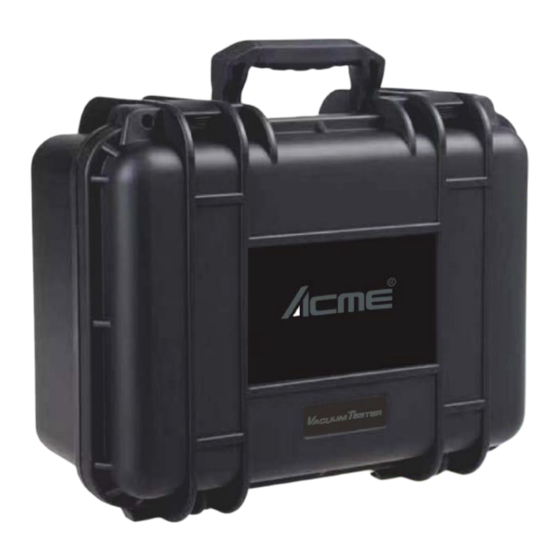

    Firmware Upgrade: Update via USB link Features: V-BOX is a portable air tightness tester. The test objects are waterproof luminaires. It is a non-destructive testing instrument based on the principle of pressure drop method and using compressed air (or vacuum) as the medium to test products，The utility model has the...

  • Page 4: Control Panel

    2. Control Panel 4 Pressure/Vacuum To Fixture 7 POWER IN 5.USB 8 POWER SWITCH 6 STOP 9 START 3 User Manual 2 Button 1 Display 1. Display: To show the various menus and the selected function 2. Button: MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN To go forward to move down in the menu...

  • Page 5: Connections

    3. Connections 1. Connect the power cable to the fixture (Figure 1) and plug it in. Figure 1 2. Take out the air hose (Figure 2), which has a quick-connect fitting and a bigger nozzle at each end (Figure 3). Connect the air hose quick-connect fitting to the fixture (Figure 4). Carefully insert the threaded end of the nozzle into the air relief valve hole of the luminaire and twist it until it is finger tight (Figure 5), then switch the fixture on (Figure 6).

  • Page 6: Test Instructions

    3. To switch the fixture off, press the power switch again or remove the power cable directly. 4. Test Instructions Attention: The connection between the luminaire and the V-BOX should be kept sealed, otherwise the test will be affected. 4.1 ACME luminaire pressure test 1.
  • Page 7 2. Enter the Test Menu and use the UP/DOWN button to select Fixture Model(Figure 2), press the ENTER button to confirm, press the MENU button to exit. Figure 2 3. Use the UP/DOWN button to select the corresponding model on Select Model page (Figure 3), press the ENTER button to restore, press the MENU button to exit.

  • Page 8: User-Defined Pressure Test

    5. If there is any problem during the test, please press the red button to stop the test. 6. “Test Pass” will be displayed when the test passes (Figure 6) and “Test Failed” will be displayed when the test fails (Figure 7). Figure 6 Figure 7 4.2 User-defined pressure test...
  • Page 9 2. Enter the Test Menu and use the UP/DOWN button to select Manual Setting (Figure 2), press the ENTER button to confirm. Adjust the parameters of the time and pressure on the Manual Setting page (Figure 3), press the ENTER button to restore and the system will automatically return to the Test Menu.

  • Page 10: Air Leakage Test

    5. If there is any problem during the test, please press the red button to stop the test. 6. “Test Pass” will be displayed when the test passes (Figure 8) and “Test Failed” will be displayed when the test fails (Figure 9). Figure 8 Figure 9 4.3 Air leakage test...

  • Page 11: System Setting

    2. Enter the test page (Figure 2), press the green button to start, then the fixture will continuously fill the luminaire with air. Figure 2 3. Put the luminaire into the water to confirm the location of air leakage by checking where the luminaire bubbles 4.
  • Page 12 2. Enter into the System Setting page and use the UP/DOWN button to select Language (Figure 2), press the ENTER button to confirm, press the MENU button to exit. Figure 2 3. Enter into the Language page and use the UP/DOWN button to select English or 中文 (Figure 3), press the ENTER button to confirm, press the MENU button to exit.

  • Page 13: System Upgrade

    5. Enter into the System Setting page and use the UP/DOWN button to select Firmware Ver. (Figure 6), press the ENTER button to confirm. Enter into the ACME V-BOX page to view the firmware version of the fixture (Figure 7), press the ENTER button to confirm, press the MENU button to exit.
  • Page 14 Main Menu...
  • Page 16 Innovation, Quality, Performance...
