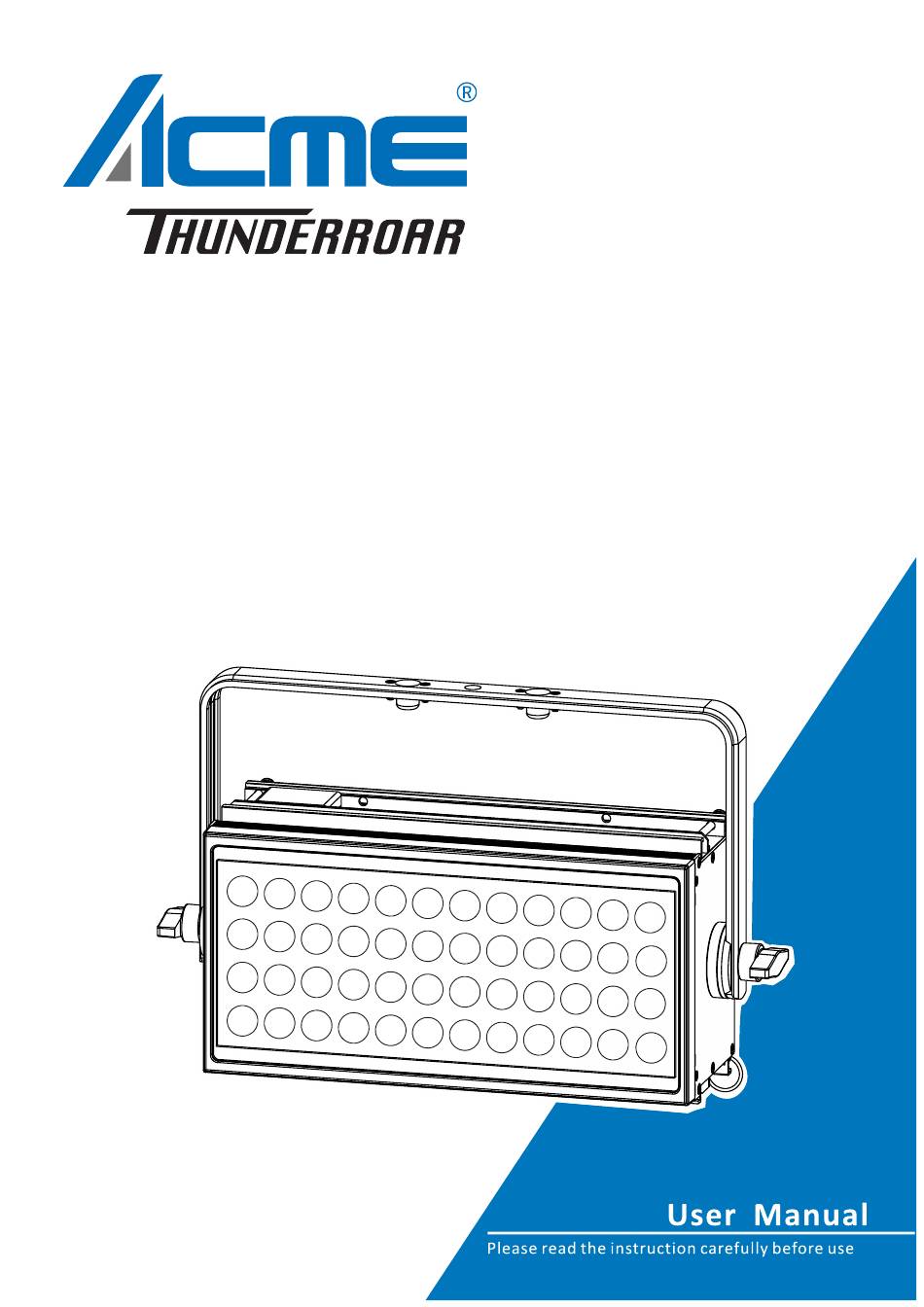

Summary of Contents for ACME Thunderroar
-
Page 2: Table Of Contents
CONTENTS 1. Safety Instruction ................2 2. Technical Specifications ..............3 3. Installation and Connection ..............4 4. Description ................... 6 4.1 Control Panel .................. 6 5. How To Set The Unit ................7 5.1 Main Function ................. 7 5.2 Home Position Adjustment ............13 6. -
Page 3: Safety Instruction
Safety Instruction Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet. ... -
Page 4: Technical Specifications
Technical Specifications Power Voltage: AC 100~240V, 50/60Hz PowerConsumption: 710W Light Source: PBLA-15LTE-S Beam Angle: 16°/31°/45° Control: DMX Channel: 14 channel modes Control Mode: DMX512, RDM Construction: OLED display Data In/Out: 3-pin IP XLR (5-pin IP XLR is optional) Power In/Out: Waterproof Power Connector in/out Protection Rating: IPX4 ... -
Page 5: Installation And Connection
Installation and Connection The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. - Page 6 Installation mode of the big hanging bracket (operational): Assembly method between multiple equipment: Warning: no more than 7 equipment can be spliced vertically...
-
Page 7: Description
Description 4.1 Control Panel 1. Display: To show the various menus and the selected function 2. Button: MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN To go to move down in the menu ENTER To perform the desired functions 3. -
Page 8: How To Set The Unit
How To Set The Unit Main Function Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the required function is shown on the monitor. Select the function by the ENTER button. Use the UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return to the last menu. - Page 9 Manual RDM UID XXXXXX Fixture Errors Error Logs Reset Error Log Passsword=050...
- Page 10 DMX Settings To select DMX Settings press the ENTER button to confirm. Use the UP/DOWN button to select DMX Address, Channel Mode or No DMX Status. DMX Address —DMX512 address setting To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 504, press the ENTER button to store.
- Page 11 Dimmer Curve To select Dimmer Curve, press the ENTER button to show the DIMMER CURVE on the display. Use the UP/DOWN button to select Linear, Square law, Inv SQ law or S Curve. Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again.
- Page 12 Display Settings Enter menu mode, select Display Settings, press the ENTER button to confirm. Use the UP/DOWN button to select Display Invert, Temperature Unit or Display Warning. Display Invert Select Display Invert, press the ENTER button to confirm, present mode will blink on the display, use the UP/DOWN button to select Off(normal display) or On(invert display), press the ENTER button to store.
- Page 13 Temperature Select Temperature, press the ENTER button to confirm, use the UP/DOWN button to select CPU, LED1, LED2 or LED3, fixture temperature will show on the display, press the MENU button to exit. Fan State Select Fan State, press the ENTER button to confirm, fixture fan state will show on the display, press the MENU button to exit.
-
Page 14: Home Position Adjustment
Factory Restore Enter menu mode, select Factory Restore, press the ENTER button to confirm. Use the UP/DOWN button to select No(normal) or Yes(the fixture will reset to factory restore), press ENTER button to store. Press the MENU button to exit. RDM FUNCTIONS Select the MANUFACTURER menu to display the manufacturer of the fixture. - Page 15 Red1-Red16 Enter offset mode, Select one of the Red1-Red16, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 1000, press the ENTER button to store. Press the MENU button to exit. Green1-Green16 Enter offset mode, Select one of the Green1-Green16, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 1000, press the...
-
Page 16: Control By Universal Dmx Controller
Control By Universal DMX Controller Connection 1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture. The cable cannot be branched or split to a “Y” cable. Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the signal and shut down the system 2. -
Page 17: Dmx 512 Configuration
DMX 512 Configuration Please refer to below configurations to control the fixtures Attentions: 1. The unit will maintain the last condition until reset if you cut-off the DMX signal. 2. For the channel Function, keep the value for about 3 seconds, then the corresponding function will take into effect. -
Page 25: Error Information
Error Information 1．CPU-B Error Check whether the 485 (DATA) leads on the PCB board are install in place or disconnected. Check whether the 485 (DATA) lead is disconnected. Check whether the relevant signal circuit 485 (DATA) on the PCB board is damage 2．Fan3 cannot start Check whether fan3 is not running or measure whether the voltage of fan3 is correct. - Page 26 particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics. Clean with soft cloth using normal glass cleaning fluid. Always dry the parts carefully. Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
- Page 28 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2004/108/EC. EN55103-1: 2009 ; EN55103-2: 2009; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
