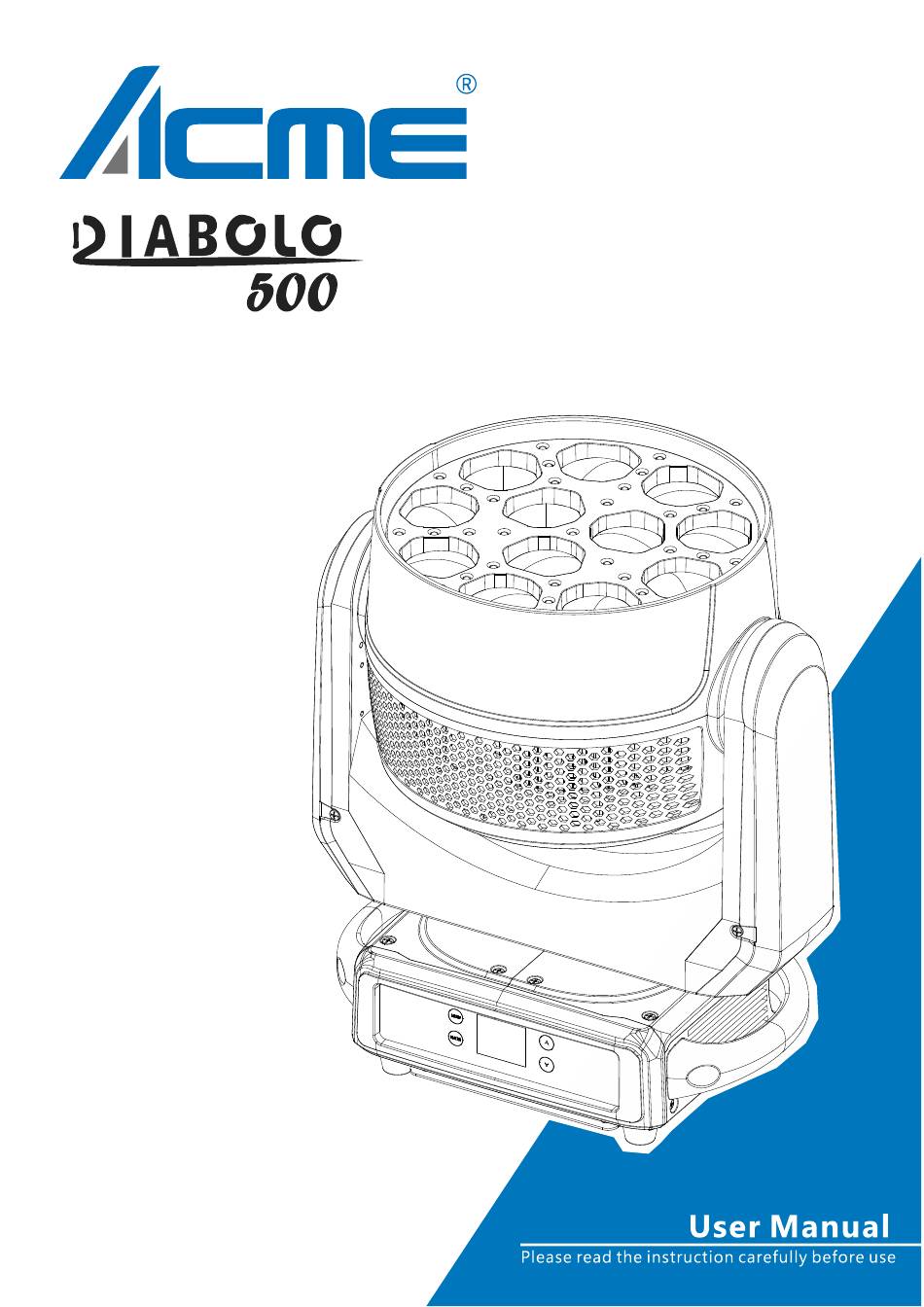

ACME DIABOLO 500 User Manual
  1. Manuals
  2. Brands
  3. ACME Manuals
  4. Lighting Equipment
  5. DIABOLO 500
  6. User manual

ACME DIABOLO 500 User Manual

Hide thumbs Also See for DIABOLO 500:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for ACME DIABOLO 500

Summary of Contents for ACME DIABOLO 500

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ..................2 2. Technical Specifications ................. 4 3. Control Panel ....................6 4. How To Set The Unit ..................6 4.1 Main Function ..................6 4.2 Home Position Adjustment ..............14 5. Control By Universal DMX Controller ............16 5.1 DMX512 Connection ................

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...

  • Page 5: Technical Specifications

    2. Technical Specifications Power Voltage: 100-240V~ 50/60Hz Power Consumption: 495W Light Source: 12x40W RGBW LED 31 pcs Flux LED Color Temperature: 7000K Beam Angle: 4°~25° Field Angle: 5°~50° Movement: Pan: 540° Tilt: 250° Pan/Tilt Resolution: 16 bit Dimmer/Shutter: 0-100% smooth dimming; outstanding strobe effect with variable speed Control: DMX Channel: 90/24/20/17 Channels Control Mode: DMX512, RDM...
  • Page 6 Features: High brightness and excellent color mixing effect 12x40W LED pixel control Dimension/Weight: 390x223x497mm, 18.5kgs 15.4"x8.8"x19.6"in, 40.8lbs Photometric Diagram:...

  • Page 7: Control Panel

    3. Control Panel 1. DISPLAY: To show the various menus and the selected function 2. Button: MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN To go forward to move down in the menu ENTER To perform the desired functions 3.
  • Page 9 DMX Settings To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, DMX Channel Mode, No DMX Status or View DMX Value. DMX Address To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 423/489/493/496, press the ENTER button to store.
  • Page 10 Tilt Invert To select Tilt Invert, press the ENTER button to confirm. Use the UP/DOWN button to select No (normal) or Yes (tilt invert), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. P/T Feedback To select P/T Feedback, press the ENTER button to confirm.
  • Page 11 Zoom Mode To select Zoom Mode, press the ENTER button to confirm. Use the UP/DOWN button to select Long or Short, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. Display Settings To select Display Settings, press the ENTER button to confirm, use the UP/DOWN button to select Display Invert, Backlight Intensity, Temperature Unit or Language.
  • Page 12 mode after auto test. Manual Test To select Manual Test, press the ENTER button to confirm, use the UP/DOWN button to select Mode, Clear, Pan, Tilt, Red1, Green1, Blue1, White1……Red12, Green12, Blue12, White12, Flux LED1……Flux LED31, Strobe, Dimmer or Zoom, press the ENTER button to confirm, use the UP/DOWN button to adjust the value, press the ENTER button to store.
  • Page 13 Firmware Version Select Firmware Version, press the ENTER button to confirm, firmware version will show on the display, press the MENU button back to exit. RDM UID Select RDM UID, press the ENTER button to confirm, RDM UID will show on the display, press the MENU button back to exit.
  • Page 14 Special Function Factory Settings Select Factory Settings, press the ENTER button to confirm, use the UP/DOWN button to select No(normal) or Yes (the fixture will reset to factory settings), press ENTER button to store, use the UP/DOWN button to set the password 011, press ENTER button to store, the fixture will reset to factory settings.

  • Page 15: Home Position Adjustment

    4.2 Home Position Adjustment Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into offset mode to adjust the home position. Select the function by pressing the ENTER button. Use the UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return to the last menu.
  • Page 16 Red1 Enter offset mode, select Red1, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button to store. Press the MENU button to exit. Green1 Enter offset mode, select Green1, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button...

  • Page 17: Control By Universal Dmx Controller

    5. Control By Universal DMX Controller 5.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 18: Address Setting

    5.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512 so that the units can receive DMX signal. Press the MENU button to enter menu mode, select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the present address will blink in the display, use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store.
  • Page 19 PAN/TILT SPEED 000-255 Fast to Slow RED1 000-255 0%100% GREEN1 000-255 0%100% BLUE1 000-255 0%100% WHITE1 000-255 0%100% RED2 000-255 0%100% GREEN2 000-255 0%100% BLUE2 000-255 0%100% WHITE2 000-255 0%100% RED3 000-255 0%100% GREEN3 000-255 0%100% BLUE3 000-255 0%100% WHITE3 000-255 0%100% RED4...
  • Page 20 GREEN6 000-255 0%100% BLUE6 000-255 0%100% WHITE6 000-255 0%100% RED7 000-255 0%100% GREEN7 000-255 0%100% BLUE7 000-255 0%100% WHITE7 000-255 0%100% RED8 000-255 0%100% GREEN8 000-255 0%100% BLUE8 000-255 0%100% WHITE8 000-255 0%100% RED9 000-255 0%100% GREEN9 000-255 0%100% BLUE9 000-255 0%100% WHITE9...
  • Page 21 WHITE11 000-255 0%100% RED12 000-255 0%100% GREEN12 000-255 0%100% BLUE12 000-255 0%100% WHITE12 000-255 0%100% STAR PIXEL 1 000-255 0%100% STAR PIXEL 2 000-255 0%100% STAR PIXEL 3 000-255 0%100% STAR PIXEL 4 000-255 0%100% STAR PIXEL 5 000-255 0%100% STAR PIXEL 6 000-255 0%100%...
  • Page 22 STAR PIXEL 18 000-255 0%100% STAR PIXEL 19 000-255 0%100% STAR PIXEL 20 000-255 0%100% STAR PIXEL 21 000-255 0%100% STAR PIXEL 22 000-255 0%100% STAR PIXEL 23 000-255 0%100% STAR PIXEL 24 000-255 0%100% STAR PIXEL 25 000-255 0%100% STAR PIXEL 26 000-255 0%100%...
  • Page 23 000-255 ZOOM FINE FUNCTION 000-009 Null 010-019 Zoom Mode: Long 020-029 Zoom Mode: Short 030-039 Dimmer Curve Linear 040-049 Dimmer Curve Square Law 050-059 Dimmer Curve Inv SQ Law 060-069 Dimmer Curve S 070-079 Null 080-089 Null 090-099 Null 100-109 Led Frequency Setting Enable 110-119 Led Frequency Setting Disable...
  • Page 24 WHITE1-3 000-255 0%100% RED4-12 000-255 0%100% GREEN4-12 000-255 0%100% BLUE4-12 000-255 0%100% WHITE4-12 000-255 0%100% STAR PIXEL 1 000-255 0%100% STAR PIXEL 2-4 000-255 0%100% STAR PIXEL 5-13 000-255 0%100% STAR PIXEL 14-22 000-255 0%100% STAR PIXEL 23-31 000-255 0%100% STROBE 000-007 Close...
  • Page 25 060-069 Dimmer Curve S 070-079 Null 080-089 Null 090-099 Null 100-109 Led Frequency Setting Enable 110-119 Led Frequency Setting Disable 120-129 Null 130-139 Null 140-179 Null 180-189 Dimmer Speed Fast 190-199 Dimmer Speed Smooth 200-209 Reset All 210-219 Reset Effect 220-229 Reset Pan/Tilt 230-255...
  • Page 26 023-027 7500K 028-031 7400K 032-036 7300K 037-040 7200K 041-045 7100K 046-049 7000K 050-054 6900K 055-058 6800K 059-063 6700K 064-067 6600K 068-072 6500K 073-076 6400K 077-081 6300K 082-085 6200K 086-090 6100K 091-094 6000K 095-099 5900K 100-103 5800K 104-108 5700K 109-112 5600K 113-117 5500K 118-121...
  • Page 27 235-238 2800K 239-243 2700K 244-247 2600K 248-255 2500K COLOR MACRO 000-009 Open 010-014 LEE 790-Moroccan Pink 015-019 LEE 157-Pink 020-024 LEE 332-Special Rose Pink 025-029 LEE 328-Follies Pink 030-034 LEE 345-Fuchsia Pink 035-039 LEE 194-Surprise Pink 040-044 LEE 181-Congo Blue 045-049 LEE 071-Tokyo Blue 050-054...
  • Page 28 250-255 Open PIXEL 1(See “Gobo of 12 CH” in detail) Null Open GOBO1 GOBO2 GOBO3 GOBO4 GOBO5 GOBO6 GOBO7 GOBO8 GOBO9 GOBO10 GOBO11 GOBO12 GOBO12+4 GOBO4+5 GOBO5+6 GOBO6+7 GOBO7+8 GOBO8+9 GOBO9+10 GOBO10+11 GOBO11+12 GOBO1+3 GOBO1+2 GOBO2+3 GOBO12+4+5 GOBO4+5+6 GOBO5+6+7 GOBO6+7+8 GOBO7+8+9 GOBO8+9+10 GOBO9+10+11...
  • Page 29 GOBO6+1+2+9 GOBO6+7+8+9 GOBO7+8+9+10 GOBO8+9+10+11 GOBO9+10+11+12 GOBO10+11+12+4 GOBO11+12+4+5 GOBO12+4+5+6 GOBO4+5+6+7 GOBO5+6+7+8 GOBO6+7+8+9+10 GOBO7+8+9+10+11 GOBO8+9+10+11+12 GOBO9+10+11+12+4 GOBO10+11+12+4+5 GOBO11+12+4+5+6 GOBO12+4+5+6+7 GOBO4+5+6+7+8 GOBO5+6+7+8+9 GOBO7+8+1+2+3 GOBO10+11+1+2+3 GOBO4+5+1+2+3 GOBO4+5+1+3+6 GOBO6+1+7+8+2 GOBO7+8+1+2+9 GOBO9+2+10+3+11 GOBO12+2+10+3+11 GOBO12+4+3+5+1 GOBO6+7+8+9+10+11 GOBO7+8+9+10+11+12 GOBO8+9+10+11+12+4 GOBO9+10+11+12+4+5 GOBO10+11+12+4+5+6 GOBO11+12+4+5+6+7 GOBO12+4+5+6+7+8 GOBO4+5+6+7+8+9 GOBO5+6+7+8+9+10 GOBO6+7+8+9+1+2 GOBO9+10+11+12+2+3 GOBO4+5+6+12+1+3 GOBO6+1+2+9+3+12 GOBO7+8+1+2+3+12 GOBO10+11+1+2+3+6...
  • Page 30 GOBO9+10+11+12+4+5+6 GOBO10+11+12+4+5+6+7 GOBO11+12+4+5+6+7+8 GOBO12+4+5+6+7+8+9 GOBO4+5+6+7+8+9+10 GOBO5+6+7+8+9+10+11 GOBO6+7+8+9+10+11+12+4 GOBO7+8+9+10+11+12+4+5 GOBO8+9+10+11+12+4+5+6 GOBO9+10+11+12+4+5+6+7 GOBO10+11+12+4+5+6+7+8 GOBO11+12+4+5+6+7+8+9 GOBO12+4+5+6+7+8+9+10 GOBO4+5+6+7+8+9+10+11 GOBO5+6+7+8+9+10+11+12 Built-in Effect 1 Built-in Effect 2 Built-in Effect 3 Built-in Effect 4 Built-in Effect 5 Built-in Effect 6 Built-in Effect 7 Built-in Effect 8 Built-in Effect 9 Built-in Effect 10 Built-in Effect 11 Built-in Effect 12...
  • Page 31 Star Pixel 15 Star Pixel 16 Star Pixel 17 Star Pixel 18 Star Pixel 19 Star Pixel 20 Star Pixel 21 Star Pixel 22 Star Pixel 23 Star Pixel 24 Star Pixel 25 Star Pixel 26 Star Pixel 27 Star Pixel 28 Star Pixel 29 Star Pixel 30 Star Pixel 31...
  • Page 32 Star Pixel 23+24 Star Pixel 24+25 Star Pixel 25+26 Star Pixel 26+27 Star Pixel 27+28 Star Pixel 28+29 Star Pixel 29+30 Star Pixel 30+31 Star Pixel 31+1 Star Pixel 1+23 Star Pixel 1+24 Star Pixel 1+25 Star Pixel 1+26 Star Pixel 1+27 Star Pixel 1+28 Star Pixel 1+29 Star Pixel 1+30...
  • Page 33 Star Pixel 20+30 Star Pixel 21+31 Star Pixel 22+23 Star Pixel 14+24 Star Pixel 15+25 Star Pixel 16+26 Star Pixel 6+16+26 Star Pixel 7+17+27 Star Pixel 8+18+28 Star Pixel 9+19+29 Star Pixel 10+20+30 Star Pixel 11+21+31 Star Pixel 12+22+23 Star Pixel 13+14+24 Star Pixel 5+15+25 Star Pixel 4+5+15+25 Star Pixel 2+8+18+28...
  • Page 34 Star Pixel 5+15+25+6+16+26+7+17+27 Star Pixel 6+16+26+7+17+27+8+18+28 Star Pixel 7+17+27+8+18+28+9+19+29 Star Pixel 8+18+28+9+19+29+10+20+30 Star Pixel 9+19+29+10+20+30+11+21+31 Star Pixel 10+20+30+11+21+31+12+22+23 Star Pixel 11+21+31+12+22+23+13+14+24 Star Pixel 12+22+23+13+14+24+5+15+25 Star Pixel 13+14+24+5+15+25+6+16+26 Star Pixel 1+2+8+18+28+3+11+21+31 Star Pixel 1+3+11+21+31+4+5+15+25 Star Pixel 1+4+5+15+25+2+8+18+28 Star Pixel 5+6+7+8+9+10+11+12+13+1 Star Pixel 15+16+17+18+19+20+21+22+14+1 Star Pixel 25+26+27+28+29+30+31+23+24+1 Star Pixel 5+15+25+6+16+26+7+17+27+1 Star Pixel 7+17+27+8+18+28+9+19+29+1...
  • Page 35 190-231 Fast Open Slow Close 232-239 Open 240-247 Random Strobe 248-255 Open DIMMER 000-255 0%100% 000-255 DIMMER FINE ZOOM 000-255 50°4° 000-255 ZOOM FINE FUNCTION 000-009 Null 010-019 Zoom Mode: Long 020-029 Zoom Mode: Short 030-039 Dimmer Curve Linear 040-049 Dimmer Curve Square Law 050-059 Dimmer Curve Inv SQ Law...
  • Page 36 PAN/TILT SPEED 000-255 Fast to Slow 000-255 0%100% GREEN 000-255 0%100% BLUE 000-255 0%100% WHITE 000-255 0%100% CTO(8000K-2500K) Null 001-004 8000K 005-009 7900K 010-013 7800K 014-018 7700K 019-022 7600K 023-027 7500K 028-031 7400K 032-036 7300K 037-040 7200K 041-045 7100K 046-049 7000K 050-054 6900K...
  • Page 37 154-157 4600K 158-162 4500K 163-166 4400K 167-171 4300K 172-175 4200K 176-180 4100K 181-184 4000K 185-189 3900K 190-193 3800K 194-198 3700K 199-202 3600K 203-207 3500K 208-211 3400K 212-216 3300K 217-220 3200K 221-225 3100K 226-229 3000K 230-234 2900K 235-238 2800K 239-243 2700K 244-247 2600K 248-255...
  • Page 38 125-129 LEE 738-JAS Green 130-134 LEE 088-Lime Green 135-139 LEE 100-Spring Yellow 140-144 LEE 104-Deep Amber 145-149 LEE 179-Chrome Orange 150-154 LEE 105-Orange 155-159 LEE 021-Gold Amber 160-164 LEE 778-Millennium Gold 165-169 LEE 135-Deep Gold Amber 170-174 LEE 164-Flame Red 175-179 Open 180-201...
  • Page 39 080-089 Null 090-099 Null 100-109 Led Frequency Setting Enable 110-119 Led Frequency Setting Disable 120-129 Null 130-139 Null 140-179 Null 180-189 Dimmer Speed Fast 190-199 Dimmer Speed Smooth 200-209 Reset All 210-219 Reset Effect 220-229 Reset Pan/Tilt 230-255 Null The layout of the gobo and star pixel of this luminaire:...
  • Page 40 Gobo of 12 CH:...

  • Page 41: Error Information

    6. Error Information Error codes are shown continuously in the display when the fixture fails and they will not disappear until the fixture is repaired. 1. CPU-B/C/D/E Error Check whether the 485 (DATA) leads on the PCB board are installed in place or disconnected. Check whether the related 485 (DATA) signal circuit on the PCB board is damaged.
  • Page 42 4. Tilt Reset Error Check whether the position of the tilt where the magnet is installed falls off or is damaged. Check whether there are obstacles in the tilt operating range. Check whether the Hall element on the tilt is damaged. Check whether the lead connecting the Hall element on the tilt and the PCB board is in poor contact or disconnected.
  • Page 43 10. BaseFan1 Too Slow Check whether the fan is out of order. Check whether there are obstacles in the fan operating range. 11. BaseFan1 Too Fast Check whether the fan is out of order. Check whether the fan circuit on the motherboard breaks down. 12.

  • Page 44: Troubleshooting

    7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connected power and main fuse. 2.
  • Page 47 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2014/30/EU. EN 55032: 2015+A11: 2020; EN IEC 61000-3-2: 2019; EN 61000-3-3: 2013+A1: 2019; EN 55035: 2017+A11: 2020. &...
  • Page 48 Innovation, Quality, Performance...
