Congratulations! You have bought a great, innovative product from Showtec. The Showtec Phantom brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
Showtec Showtec Phantom Product Guide ™ Warning.................…...……………..…………………………….…………. Safety-instructions………………………………………………………………………………………………………. Operating Determinations.…………………………………………………………………………………………… Rigging.…………………………………………………………………………………………………………………… Return Procedure……………………………………………………………………………........Claims……………………………………………………………………………............Description................…...………………………………………….………… Features and Overview ………………………………...….……………….………….……….……….……………. Backside…………………………………………………...…...….……………….…………………...……………….. Installation................…...…………………………………………………..… Installing the Lamp ............…………………………………………………….……… Set Up and Operation............................. One / Multiple Phantom DMX Control........…………………………………………………. DMX-Protocol…...........……………………………………………………………………….. Fixture Linking…………………....……..……………………………………..…………………..…………..….. Data Cabling………………..……..……………………………………………..………………………….…….
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec Phantom 300 Beam with powercon cable 1,25m • Quick-lock brackets and M8 nuts •User manual...
Page 5
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
OPERATING DETERMINATIONS • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light-output and the illuminated surface must be more than 1 meter. •...
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN...

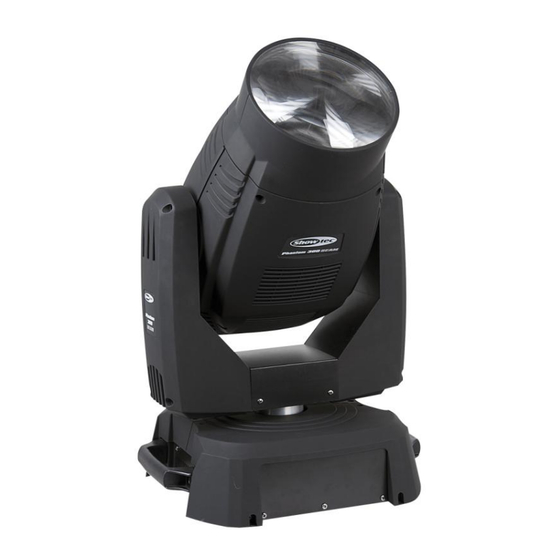

Description of the device Features The Showtec Phantom Beam 300 is a moving-head with high output and great effects. Power consumption: 644W • Colourwheel with 5 vivid colours, 2 color correction filters + white • Static Gobowheel with 8 static gobos and open •...
Installation Installing the Lamp The Showtec Phantom uses the CSR-300 / MSR 300 (ordercode 80933 / 80851) bulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information.
Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. One / Multiple Phantom(s) DMX Control 1.
Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support.
The Phantom can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel When the indicator light is on, means the Phantom is working Fig. 5 A. LCD Display D. Down Button B. MODE button E.
Control Panel Functions For synchronous operation of multiple fixtures the fixtures must all be connected on a data-link. Note: Disconnect the fixtures from the DMX controller before operating, otherwise data collisions can occur and the fixtures will not work properly! It’s necessary to insert the XLR termination plug (with 120 Ohm ) into the input of the first fixture and into the output of the last fixture in the data-link, in order to ensure proper transmission on the data link.
Motor / Adjustment Functions 1) Press Mode/Esc for 10 seconds, until the display shows: 2) Enter the Password : 2323. 3) Press Enter to confirm your choice. If there is no change or confirmation within 60 seconds, the fixture will automatically exit this function.
DMX Protocol 14 Channels (BASIC) Channel 1 - Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. Channel 2 - Vertical movement (Tilt) Push the slider, up in order to move head vertically (TILT).
Page 17
Channel 7 – Colourwheel Linear color change following the movement of the slider. Between 154 - 255, the color-wheel rotates continuously the so-called “Rainbow” effect. Open / White 9-17 Blue 18-26 Yellow 27-35 Color correction filter 3200 ˚K 36-44 Color correction filter 8000 ˚K 45-53 Green 54-62...
Page 18
Channel 11 – Cyan 0-255 Cyan from 0 – 100% Channel 12 – Magenta 0-255 Magenta from 0 – 100% Channel 13 – Yellow 0-255 Yellow from 0 – 100% Channel 14 – Function 0-151 No function 152-167 Highest Fan Speed 168-183 Auto Adjust fan speed according to temperature 184-199...
DMX Protocol 18 Channels (ADVANCED) Channel 1 - Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. Channel 2 - Pan fine 16 bit Channel 3 - Vertical movement (Tilt) Push the slider, up in order to move head vertically (TILT).
Page 20
Channel 10 – Colourwheel Linear color change following the movement of the slider. Between 154 - 255, the color-wheel rotates continuously the so-called “Rainbow” effect. Open / White 9-17 Blue 18-26 Yellow 27-35 Color correction filter 3200 ˚K 36-44 Color correction filter 8000 ˚K 45-53 Green 54-62...
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Phantom requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced.
Replacing a Gobo Gobo-wheel with rotating gobo’s 1. Disconnect mains power supply and set the switch to OFF. 2. Make sure that the gobo you want to insert has the same size. For the right size, see below. Fig. 7 3.
Gobo-wheel Color-wheel Fig. 9 Troubleshooting No Light, No Movement - All Products This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps.
Page 25
Problem Probable cause(s) Remedy No power to the fixture · Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. · Replace fuse. completely dead. Fixtures reset The controller is not connected. ·...
