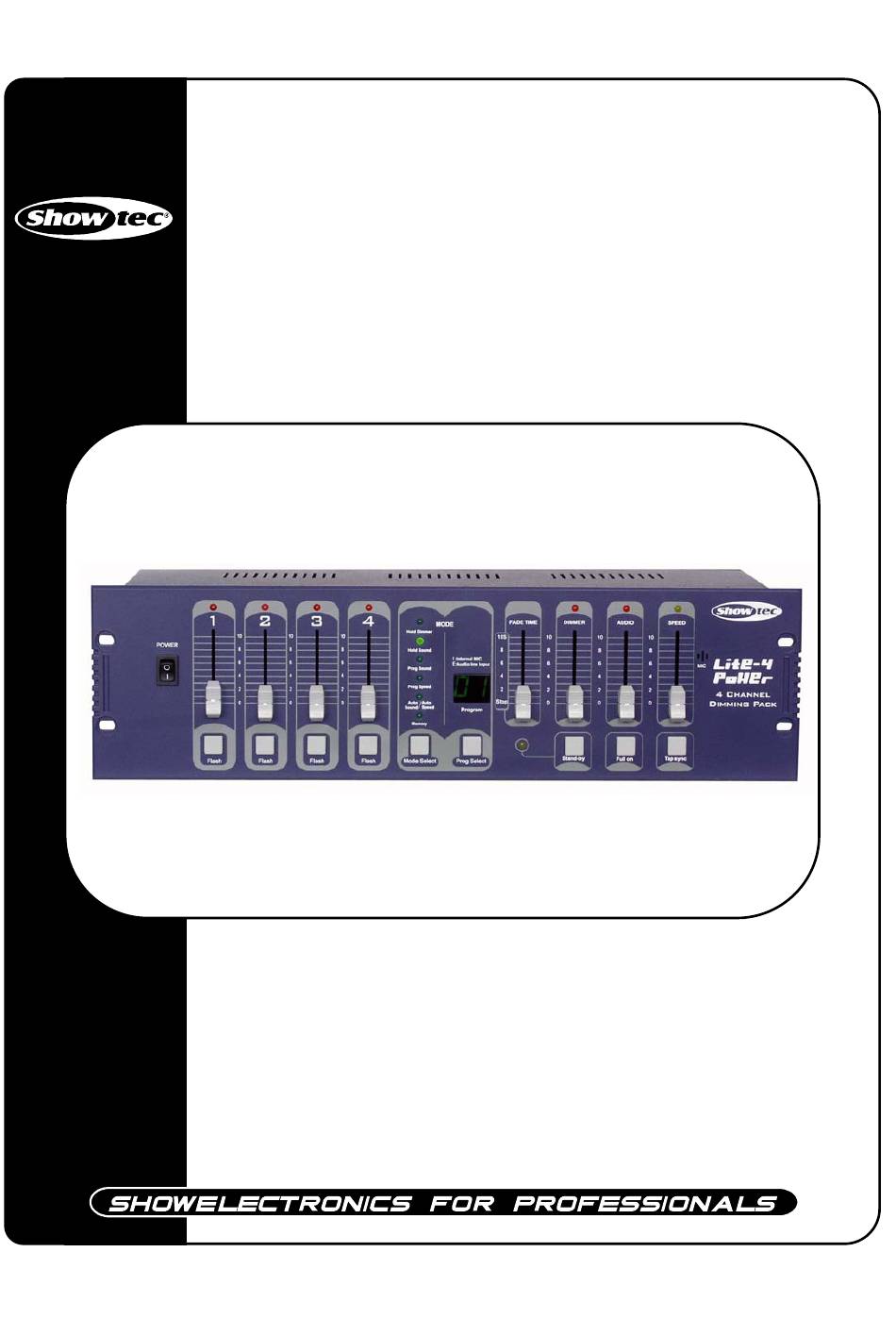

- Page 1 Lite Power 4 ORDERCODE 50307...
- Page 2 New products are being launched regularly. We work hard to keep you, our customer, satisfied. For information, please visit our web site at http://www.highlite.nl. You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment.
- Page 3 Showtec Showtec Lite-Power 4 Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Backside………………………………...….……………….……………………………………………...…. Installation................…...…………………………………….….. Installing Lite Power 4 ............……………………………….……..………… Set Up and Operation..............……..……………………………….… Operating instructions ..............……………………………………. Maintenance...................………..………….…….…………….. Replacing the Fuse................…………………….……………….. Troubleshooting................………………….………………….…. No Light, No Movement - All Products..........………………….…………………. Product Specifications..............……………….…….………………….
- Page 4 WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device have to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations.
- Page 5 • If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
- Page 6 Description of the device Features This model is a 4 channel dimming chaser and has 7 operating modes, 42 chasing programs, memory backup and fade time control Overview Fig. 1 Power Switch Speed Indicator ; . This indicator indicates the chasing speed. Audio Level Indicator This indicator indicates the sensitivity of music rhythms.
- Page 7 Rear Panel 50307 Lite-Power 4 (with Schuko connectors) 1) AC Input ; Plug in appropriate power supply. 2) Audio Input ; Line in 100mV-1Vpp 3) Channel Fuse ; F6.3A 250V 5x20mm Channel Output ; 2A /CH., 8A /Total (CE) There are 2 other versions from the Lite-Power 4: 50307 Lite-Power 4M (with Schuko + 6 pin multiconnectors) 1) AC Input ;...
- Page 8 50307 Lite-Power 4B (with Bulgin connectors) 1) AC Input ; Plug in appropriate power supply. 2) Audio Input ; Line in 100mV-1Vpp 3) Channel Fuse ; F6.3A 250V 5x20mm Channel Output ; 2A /CH., 8A /Total (CE)
- Page 9 Installation Remove all packing materials from the Lite-Power 4. Check that all foam and plastic padding is removed. Screw the equipment into a 19" rack. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage.
- Page 10 AS mode Program is executed according to the music rhythms and PROGRAM DISPLAY shows the step. AP mode Program is executed automatically and PROGRAM DISPLAY shows the step. You can adjust the chasing speed according to the way specified in Prog Speed. 4.
- Page 11 Maintenance The Showtec Lite-Power 4 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth.
- Page 12 Troubleshooting No Light, No Movement - All Products This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps.
- Page 13 Product Specification Model: Showtec Lite-power 4 Voltage: AC 230V-50Hz (CE) Audio Input: 100mV-1Vpp Channel Output: 2A/CH., Total 8A (CE) Internal Fuse: F0.5A 250V 5x20mm Channel Fuse: F6.3A 250V 5x20mm Dimensions: 483x133x138mm Weight: 4.4 kg Design and product specifications are subject to change without prior notice.
