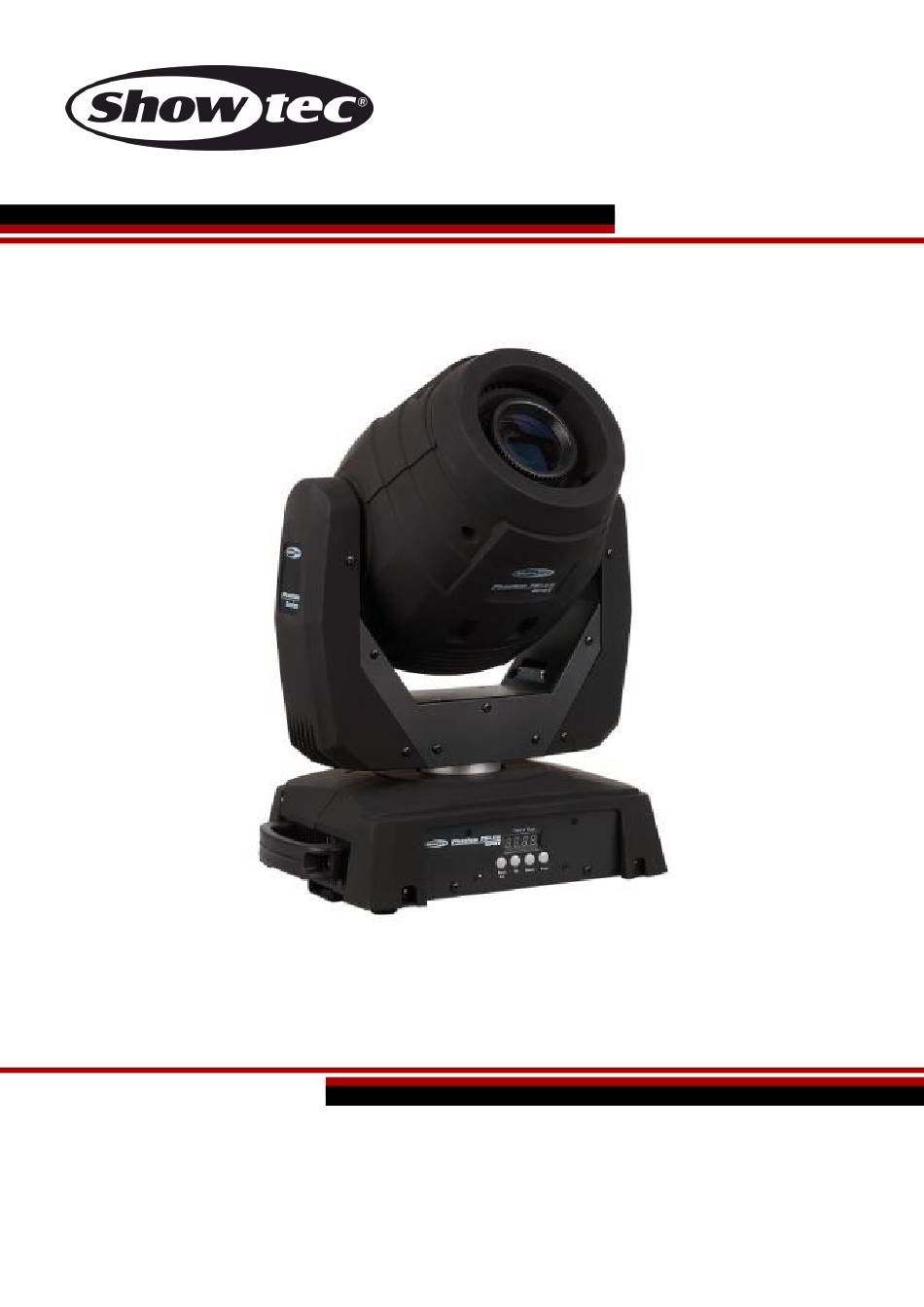

- Page 1 MANUAL ENGLISH Phantom 75 LED Spot Ordercode: 40188 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Phantom 75 LED Spot Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Features ..................................7 Frontside.................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Phantom 75 LED Spot IEC power cable (0,9 m) ... - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Phantom 75 LED Spot • The user is responsible for correct positioning and operating of the Phantom. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. -
Page 6: Connection With The Mains
Phantom 75 LED Spot Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place. International EU Cable UK Cable... -
Page 7: Return Procedure
Phantom 75 LED Spot Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device
Phantom 75 LED Spot Description of the device Features The Phantom 75 LED Spot is a moving head with high output and great effects. • Input voltage: 100-240V AC, 50/60Hz • Power consumption: 170W • Light source: 1 x 75W White LED •... -
Page 9: Backside
Phantom 75 LED Spot Backside Fig. 02 03) IEC 100-240V power connector IN + Fuse F3A/250V 04) 3-pin DMX signal connector IN 05) 3-pin DMX signal connector OUT Installation Remove all packing materials from the Phantom 75 LED Spot. Check if all foam and plastic padding is removed. -
Page 10: Control Modes
Phantom 75 LED Spot Control Modes There are 4 modes: Stand-alone (Built-in programs) Sound-controlled Master/Slave DMX-512 (8CH, 14CH) One Phantom (Built-in programs) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). -
Page 11: Multiple Phantoms (Dmx Control)
Phantom 75 LED Spot Multiple Phantoms (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Phantoms and other devices. 04) Link the units as shown in fig. -
Page 12: Fixture Linking
Phantom 75 LED Spot Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 13: Control Panel
Phantom 75 LED Spot The Phantom 75 LED Spot can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) LED display MODE/ESC button C) UP button D) DOWN button ENTER button Fig. -
Page 14: Menu Overview
Phantom 75 LED Spot Menu Overview Ordercode: 40188... -
Page 15: Main Menu Options
Phantom 75 LED Spot Main Menu Options 1. DMX Addressing 2. Built-in Programs (Slow/Fast/Sound-control/Slave) 3. Pan/Reverse Pan 4. Tilt/Reverse Tilt 5. Display/Reverse Display 6. DMX Modes 7. Pan Settings 8. Tilt Settings 9. Reset 10. Factory settings 1. DMX Addressing With this menu you can set the DMX address. -
Page 16: Built-In Programs
Phantom 75 LED Spot 2. Built-in Programs It is possible to select 4 different programs. 01) Press the MODE/ESC button until the display shows 02) Press the UP/DOWN buttons to select one of the 4 programs: Built-in Program Slow 01) When the display shows , press the ENTER button. -
Page 17: Pan Settings
Phantom 75 LED Spot 7. Pan Settings 01) Press the MODE/ESC button until the display shows one of the 3 pan range options: (540º), (360º) or (180º). 02) Press the UP/DOWN buttons to toggle between those 3 options. 8. Tilt Settings 01) Press the MODE/ESC button until the display shows one of the 3 tilt range options: (270º), (180º) or... -
Page 18: Service Function # 2
Phantom 75 LED Spot Service Function # 2 01) Press and hold down the MODE/ESC button for 10 seconds. 02) The display will show 0000. 03) Press the UP button to set the value. Press the DOWN button to move to the following digit. 04) Enter password: 2322. - Page 19 Phantom 75 LED Spot Channel 4 – Shutter / Strobe Close Shutter open 8-76 Strobe effect, from slow to fast (0-10 flashes/sec.) 77-145 Pulse strobe effect, from slow to fast 146-215 Random strobe effect, from slow to fast (0-10 flashes/sec.) 216-255 Shutter open Channel 5 –...
-
Page 20: Channels
Phantom 75 LED Spot 14 Channels Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. Channel 2 –... - Page 21 Phantom 75 LED Spot Channel 9 – Rotating Gobo wheel + Gobo Shake Open / White 8-15 Gobo 1 (Glass) 16-23 Gobo 2 (Glass) 24-31 Gobo 3 (Metal) 32-39 Gobo 4 (Metal) 40-47 Gobo 5 (Metal) 48-55 Gobo 6 (Metal) 56-63 Gobo 7 (Metal) 64-71...
-
Page 22: Channel Settings
Phantom 75 LED Spot 152-167 Sound-controlled Program 2 168-183 Sound-controlled Program 3 184-199 Sound-controlled Program 4 200-215 Sound-controlled Program 5 216-231 Sound-controlled Program 6 232-247 Sound-controlled Program 7 248-255 Sound-controlled Program 8 Channel 13 – Prism Open 8-12 3-facet Prism Effect, no rotation 13-130 Clockwise rotation (CW) prism effect from slow to fast 131-247... -
Page 23: Maintenance
Phantom 75 LED Spot Maintenance The operator has to make sure that safety-related and machine-technical installations are to be inspected by an expert after every year in the course of an acceptance test. The operator has to make sure that safety-related and machine-technical installations are to be inspected by a skilled person once a year. -
Page 24: Replacing A Gobo From The Rotating Gobo Wheel
Phantom 75 LED Spot Fig. 08 03) Loosen the service lid of the housing, by sliding it to the left/right. 04) Gently tilt the head so that the small metal housing can slide out more easily. 05) Turn the gobo wheel, with the gobo you want to remove, to the upside. 06) Gently lift up the gobo holder by 10º... -
Page 25: Rotating Gobo Wheel + Color Wheel
Suspect three potential problem areas as: the power supply, the LEDs, the fuse. 01) Power supply. Check if the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Phantom to your Showtec dealer. 03) The fuse. Replace the fuse. See page 22 for replacing the fuse. - Page 26 Phantom 75 LED Spot Problem Probable cause(s) Remedy One or more No power to the fixture. Check if power is switched on and fixtures do not cables are plugged in. function at all Primary fuse blown. Replace fuse. Fixtures reset The controller is not connected.
-
Page 27: Product Specifications
Phantom 75 LED Spot Product Specifications Model: Showtec Phantom 75 LED Spot Input voltage: 100-240V AC, 50/60Hz Power consumption: 170W (full output) DMX linking: 30pcs Fuse: F3A/250V Dimensions: 338 x 247 x 390 mm (LxWxH) Weight: 11 kg Operating and Programming:... -
Page 28: Dimensions
Phantom 75 LED Spot Dimensions Ordercode: 40188... -
Page 29: Notes
Phantom 75 LED Spot Notes Ordercode: 40188... - Page 30 Phantom 75 LED Spot Ordercode: 40188...
- Page 31 Phantom 75 LED Spot Ordercode: 40188...
- Page 32 ©2016 Showtec...
