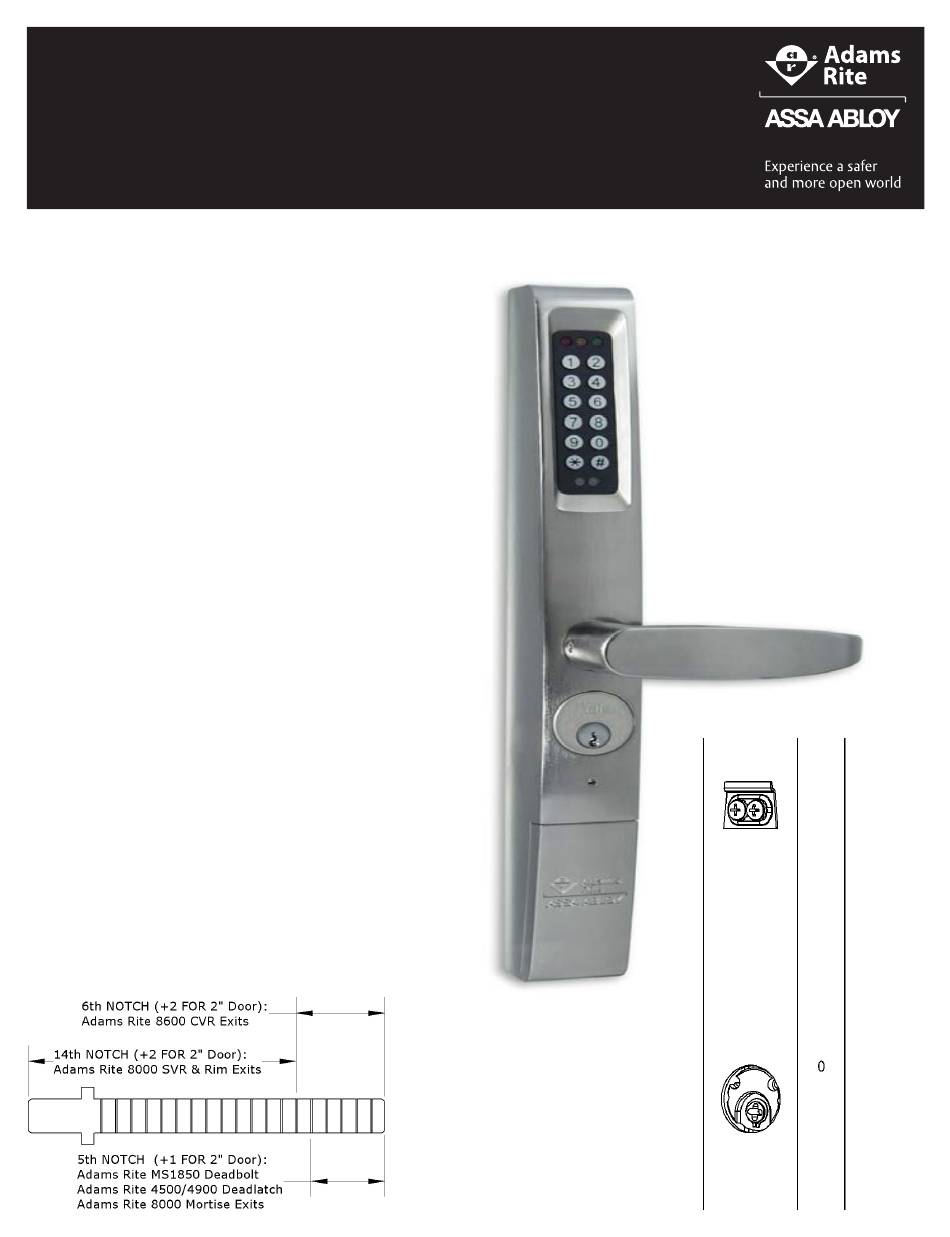

eForce® 150 Keyless Entry
Model 3090
Installation Instructions and User's Guide
INSTALLATION
Important Notes
The 3090-01 is designed exclusively for
latching hardware including:
• Adams Rite 4500/4900 series deadlatches
• Adams Rite 8000 series exit devices
The 3090-02 is compatible with Adams Rite MS® Series
Deadlocks only! These units are not interchangeable.
These instructions, and the fasteners supplied, apply
to metal door applications. Other door types will
need fasteners designed for the given medium.
IMPORTANT: This product must be installed according
to all applicable building and life safety codes!
The following additional equipment is needed for installation:
• Mortise Cylinder — 1" to 1-1/2" in length range with MS cam
NOTE: 1-1/2" cylinders require a 1/8" trim ring.
Prepare the Door
1. Select proper template to match application and
create holes according to template instructions.
2. Install Rivnuts in ¼" mounting holes according
to instructions supplied in Rivnut kit.
3. Install anchor plate, with lip up, on top holes
with two (2) #10–32 x 5/8" pan head screws
include in hardware kit (Figure 1).
Prepare the Spindle
Snap spindle to proper length for the application (Figure 2).
FIGURE 2: Prepare the Spindle
Approved 2023-11-13
FIGURE 1: Prepare the Door
1 of 8
