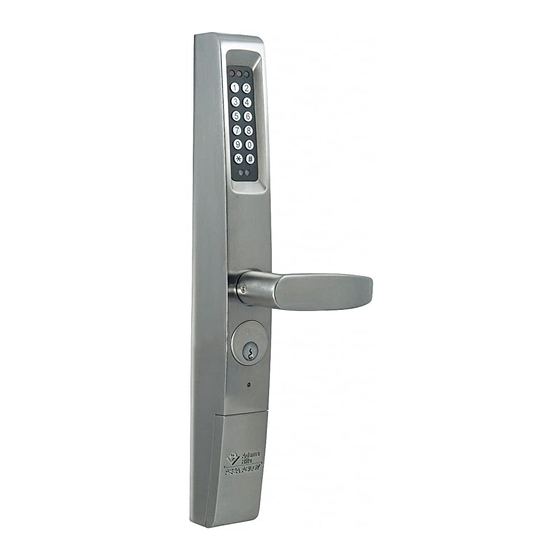

Assa Abloy 3090 Owner's Manual And User's Manual

Hide thumbs Also See for 3090:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
®
eForce
150 Keyless Entry
®
eForce
150 Keyless Entry
Owner's Manual
& User's guide
For Model 3090
Adams Rite Manufacturing Co.
260 Santa Fe Street
Pomona, CA 91767
Phone: 800-872-3267
This manual contains important operation, maintenance &
Fax: 800-232-7329
www.adamsrite.com
warranty information.
Save this manual for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3090 and is the answer not in the manual?

Questions and answers

Related Manuals for Assa Abloy 3090

Summary of Contents for Assa Abloy 3090

  • Page 1 150 Keyless Entry ® eForce 150 Keyless Entry Owner’s Manual & User’s guide For Model 3090 Adams Rite Manufacturing Co. 260 Santa Fe Street Pomona, CA 91767 Phone: 800-872-3267 This manual contains important operation, maintenance & Fax: 800-232-7329 www.adamsrite.com warranty information.
  • Page 2 LIMITED WARRANTY Adams Rite Manufacturing Co. (hereinafter ADAMS RITE) manufactures its products in a manner to be free of defects. Should any defect of manufacture (in material or workmanship) occur in its products, ADAMS RITE, upon prompt notification and proof to its satisfaction that the product was defective in manu- facture for the use intended by ADAMS RITE, will at its option, exchange the product, repair the defect or refund the price charged by ADAMS RITE, FOB factory based on the following schedule:...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS ® eForce 150 General Information .......... 4 Programming Information ............4 User Code Descriptions ............5 Features and Options ............6 Programming Instructions ............8 Program Master Code ............8 Program Emergency Code ..........9 Program Supervisor Code ..........10 Program a Lockout Code ..........

  • Page 4: E Force 150 General Information

    eForce 150 User Log ® 150 G ORCE ENERAL NFORMATION Installation Date Door Decription The Keypad (with numbers 0-9, [*] and [#]) is used for programming. In normal operating mode, the [*] key is used for the enter key after user code entry. Location User Name Code...

  • Page 5: User Code Descriptions

    eForce 150 User Log In programming mode, press the [*] key at any time to exit this mode. Wait 2 seconds before entering any code. The red LED will flash and a tone will Installation Date Door Description indicate that the programming mode has been exited. The programming mode will exit automatically if an invalid code is entered during programming (indicated by a red LED flash and a tone).

  • Page 6: Features And Options

    eForce 150 User Log Passage Code: The Passage code is used to enable or disable the Passage mode. Enter- Installation Date Door Description ing the Passage code will cause the device to allow free ingress entry (Passage enabled is indicated by a green LED flash and 3 tones). A sec- ond entry of the Passage code will return the eForce 150 to the Normal Location User Name...
  • Page 7 eForce 150 User Log LED Indicator: All 3 LED’s can be disabled in User Mode by the Master or Su- pervisor code (PCC32), but will remain enabled in programming mode. Yellow indicates programming mode. Green indicates successful entry. Red indicates Installation Date Door Description input error.

  • Page 8: Programming Instructions

    Programming Instructions: ROUBLE HOOTING ® Green light comes on, but lever will not retract latch-bolt. The eForce 150 can support 152 individual codes. Each code is assigned a code location (1-152) in addition to a user name and the code’s programmed ®...

  • Page 9: Program Emergency Code

    MASTER CODE RESET Depress and hold the reset button located on the backside of the eForce (Fig 8) 150 on the printed circuit board (Note: eForce 150 must be removed from the door to reset). ® Place eForce 150 back on mounting bracket and guide spindle into cam plug.

  • Page 10: Program Supervisor Code

    STEP 3: SUPERVISOR CODE (Location 3) (Fig 6) ® Remove Back Plate of eForce 150 with Caution! There are wires attached to Depress and hold # key (approximately 5 seconds). housing and back plate. Release when yellow LED blinks. (Yellow LED will blink continuously during programming) Using a Phillip Head Screwdriver, remove the (8) #10-32 x 5/8 screws on the back...

  • Page 11: Program A Passage Code

    Replacing Mortise Cylinder STEP 5: PASSAGE CODE (Location 5) (Fig 3) Insert key into Cylinder, turn key 180 de- Depress and hold # key (approximately 5 seconds). grees Clockwise to release blocking plate. Release when yellow LED blinks. (Yellow LED will blink continuously during programming) Insert allen key (included) and loosen the Enter Master or Supervisor Code # (Green flash with 2 short tones)

  • Page 12: Program One Time User Codes

    STEP 7: ONE TIME USER CODES Battery Replacement ® The eForce 150 goes into blackout mode when the voltage drops to 3.8V. If this happens, users 6-152 will be locked out. Only Master, Emergency, and Depress and hold # key (approximately 5 seconds). Supervisor codes will allow access in this mode.

  • Page 13: Delete All User Codes

    SET EMERGENCY HOLD-OPEN (UNLOCK) DELETE ALL USER CODES (R ETURN TO TIME TORY EFAULT (THIS NUMBER CAN BE BETWEEN 1 AND 9 SECONDS. DE- FAULT IS 10 SECONDS) Depress and hold # key (approximately 5 seconds). Depress and hold # key (approximately 5 seconds). Release when yellow LED blinks.

  • Page 14: Reset All Features To Default Values

    RESET ALL FEATURES SET NUMBER OF SUCCESSIVE INVAILD (NOT INCLUDING CODES) DEFAULT VALUES USER CODE ENTRIES ACCEPTED (THIS NUMBER CAN BE BETWEEN 1 AND 255 ATTEMPTS. DEFAULT IS 5) Depress and hold # key (approximately 5 seconds). Depress and hold # key (approximately 5 seconds). Release when yellow LED blinks.
