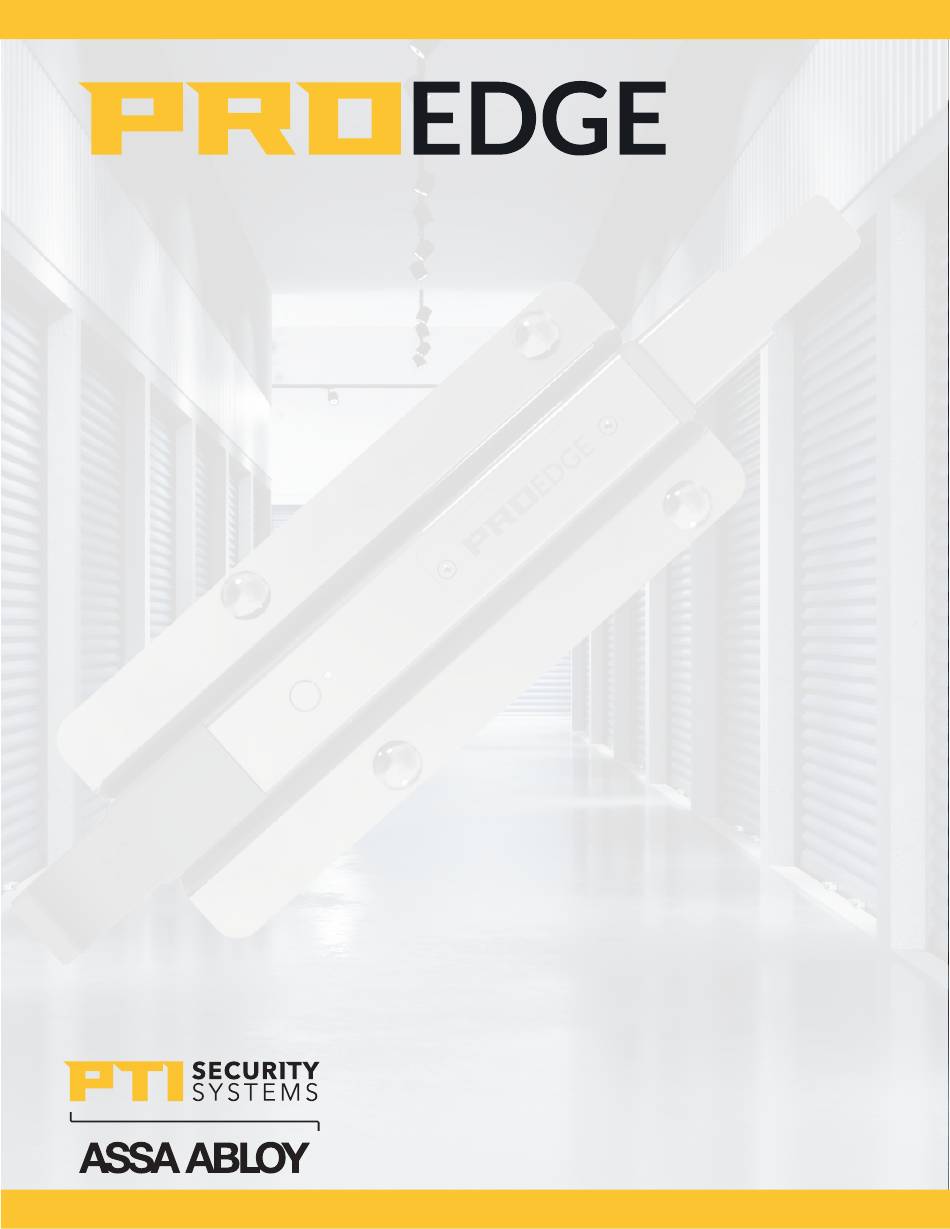

- Page 1 INSTRUCTION MANUAL 2024 VER 112723...
-
Page 2: Table Of Contents
PROEDGE Instruction Manual TABLE OF CONTENTS Introduction ........................3 Getting Started......................4-7 Removal Tools ....................... 8-9 Product Overview ....................10-12 StorID ..........................13-14 Features ..........................16 Components ........................17 Batteries ........................17-18 Physical Dimensions ....................19 Operations ........................20-23 Disposal ..........................24 Frequently Asked Questions ..................25 Warranty ........................26-27... -
Page 3: Introduction
ProEdge lock. The ProEdge lock has been certified for use in the NA, Europe and APAC. INTENDED USE The ProEdge lock is intended to be used in self-storage facilities, in conjunction with flat doors, corrugated doors and roll-up doors. PRODUCT IDENTIFICATION Each ProEdge lock is equipped with a unique serial number for identification and commissioning. - Page 4 Note: The battery must not be punctured, charged or dropped, and should be replaced if so. GETTING STARTED – SYSTEM OVERVIEW This section will give the reader an introduction to the ProEdge lock and what is included in the package. Batteries Batteries are not included in the ProEdge lock packages due to fire hazards.
-
Page 5: Getting Started
PROEDGE INSTRUCTION MANUAL | GETTING STARTED ProEdge lock – for corrugated doors SKU: 17000107 The ProEdge lock package contains the following items per lock: One (1) ProEdge lock Four (4) M6 form A flat assembly washers (DIN125) - for corrugated doors... - Page 6 PROEDGE INSTRUCTION MANUAL | GETTING STARTED Gateway – SKU: XXXXXXXX The ProEdge lock gateway box contains the following items: 1 x ProEdge gateway 1 x Power supply 1 x Ethernet cable Repeater – SKU: 17000110 The ProEdge lock repeater box contains the...
- Page 7 INSTRUCTION MANUAL | GETTING STARTED Spare parts list Item SKU number ProEdge Gateway Power Supply ProEdge Removal Tool for flat doors ProEdge Removal Tool for corrugated doors ProEdge Battery Cover ProEdge Lock Handle ProEdge mounting bolt – corrugated ProEdge mounting nut ProEdge mounting bolt –...
-
Page 8: Removal Tools
INSTRUCTION MANUAL | REMOVAL TOOLS REMOVAL TOOLS The ProEdge lock comes with removal tools. 2 tools exist: One for corrugated doors and one for flat doors. The main feature of the removal tool is to make any removal of decommissioned locks as easy as possible for the operator, and without the use of any power tools other than a drill. - Page 9 PROEDGE INSTRUCTION MANUAL | REMOVAL TOOLS Removal tool for flat doors Handle Drill Bushings The removal tool is placed on the lock that needs to be removed. Aluminum Base The aluminum base provides the same geometry as the housing of the lock and the strike plate.
-
Page 10: Product Overview
INSTRUCTION MANUAL | PRODUCT OVERVIEW Product Overview The ProEdge lock has many components and component names. In the image provided, the different names are listed and should give the reader an overview of the names of each component. ProEdge Lock overview (Flat Door) - Page 11 The mesh network that is generated by the radio module is called Mira Mesh. All facilities that have the ProEdge locks installed must have at least 1 gateway and preferably more depending on the facility layout and number of units. As a rule of thumb, one gateway can handle 200 locks –...
- Page 12 PROEDGE INSTRUCTION MANUAL | PRODUCT OVERVIEW ProEdge Lock Repeater Overview Wall Mounting Holdes Screws for Fastening Lid Repeater Information PCBA Battery Holder Battery Page - 12...
- Page 13 • Receive tampering notifications in case of lock damage or breakage. • Suspend/unsuspend a tenant’s ProEdge lock by rotating the derived keys, especially when the tenant is not fully paid and returns to good standing (In the SLC platform).
-
Page 14: Storid
PROEDGE INSTRUCTION MANUAL | STORID • Select the site, unit, type of share (time period, number of uses or permanent), and the applicable phone number for the user. If the Tenant has rented only one unit at a single facility, the Site and Unit dropdown fields will be pre-defined. - Page 15 PROEDGE INSTRUCTION MANUAL | IDENTIFICATION Identification of the lock, repeater and gateway The lock is equipped with a serial number and has model name: XX……. The identification label for the corrugated version of the lock can be found on the backside of the...
-
Page 16: Features
The charge can hold up to XX minutes and can therefore sustain enough up-time to alert the backend before it loses power. NFC antenna: The ProEdge lock is equipped with an NFC antenna, within the lock behind the black part of the plastic housing. The NFC antenna can communicate with a smartphone or NFC tag/card. - Page 17 The lock is put into a sleep mode to save power. LED indicator: The Proedge lock is equipped with an LED indicator. The indicator will show the status of the lock during lock/unlock operation (Red/Green) and other colors indicating issues (Orange for example).
-
Page 18: Batteries
PROEDGE INSTRUCTION MANUAL | BATTERIES CHANGING BATTERIES This section provides instruction on properly changing the batteries in the ProEdge lock and ProEdge lock repeater. ProEdge Lock Make sure to put the lock in “Battery changing mode” via the commissioning app to avoid any alarms in the backend. -
Page 19: Physical Dimensions
PROEDGE INSTRUCTION MANUAL | PHYSICAL DIMENSIONS PRODUCT DIMENSIONS AND WEIGHT ProEdge lock for corrugated doors Weight: 850g ProEdge lock for flat doors Weight: 700g Page - 19... - Page 20 Operation Instructions This section will give the reader an introduction to the unlocking and locking operation of the ProEdge lock in a step-by-step process. Unlocking the ProEdge lock In the locked state approach, the lock and firmly press the button on the front of the lock.
- Page 21 PROEDGE INSTRUCTION MANUAL | OPERATION Operating Instructions Guide: Upon the smart lock awakening, the Tenant should have the mobile application open. The BLE connection will automatically identify the “awakened lock, ” verify the Tenant’s permissions, and initiate the “Open the lock” dialogue in the StorID app.
- Page 22 The user can now open/roll-up the door and access the unit. LOCKING THE PROEDGE LOCK When the user is ready to lock, close the door/roll down the door completely. Make sure that the door has been rolled all the way...
- Page 23 MAINTENANCE AND CARE • The ProEdge lock does not need any maintenance on a regular basis, and can be cleaned with a cloth, water and mild soap. • Do not attempt to disassemble the digital door lock by yourself. By doing so, you may damage the product.
-
Page 24: Disposal
PROEDGE INSTRUCTION MANUAL | DISPOSAL DISPOSING OF THE PRODUCT - WEEE The symbol on the products, packaging and/or accompanying documents mean that used electrical and electronical equipment/products should not be mixed with general household waste. For proper treatment, recovery and recycling of old... -
Page 25: Frequently Asked Questions
PROEDGE INSTRUCTION MANUAL | FAQS FREQUENTLY ASKED QUESTIONS (FAQ) The lock does not react when I push the button? ) Make sure that the battery has power. Replace the battery if needed and try again. The lock won’t unlock when I swipe in the app? ) The lock may not have awakened yet or could be in a sleep state, rendering BLE recognition unavailable. -
Page 26: Warranty
PROEDGE INSTRUCTION MANUAL | WARRANTY & DISCLAIMER WARRANTY & DISCLAIMER PTI Security Systems warrants its products and equipment to conform to its own specifications and to be free from defects in materials and workmanship, under normal use and service, for a period of one year from the date of shipment. - Page 27 PROEDGE INSTRUCTION MANUAL | WARRANTY & DISCLAIMER Warning: The User should follow all installation, operation, and maintenance instructions. The User is strongly advised to conduct Product and systems test at least once each week. Changes in environmental conditions, electric or electronic disruptions, and tampering may cause the Product to not perform as expected.
- Page 28 PROEDGE INSTRUCTION MANUAL Page - 28...
- Page 29 PROEDGE INSTRUCTION MANUAL | CHANGELOG Changelog Date Change 11-27-2023 New document Page - 29...
- Page 30 With PTI Security Systems, operators can easily customize all of their facility’s access areas, review site activity, and monitor zones and alarms from one cloud- based account. Create a world-class operation with the most advanced enterprise access control solution from the trusted industry leader with over 40 years of experience.
