Assa Abloy 1584 Series Installation Instructions

INSTALLATION INSTRUCTIONS

1584 - 1587 Series Electromagnetic Locks
FOR ASSISTANCE CONTACT SARGENT AT 800-810-WIRE (9473) or www.sargentlock.com
IMPORTANT: PLEASE READ BEFORE ATTEMPTING TO
INSTALL MAGNETIC LOCK
A. Handle the equipment with care, damaging the mating
surface of the magnet or armature plate may reduce locking
efficiency.
B. The magnet mounts rigidly to the door frame. The armature
plate mounts to the door with hardware. The kit provided
allows the armature to pivot about its center to compensate
for door wear and misalignment.
C. Template use must take place with the door
in its normally closed position.
D. Firmly tighten all screws.

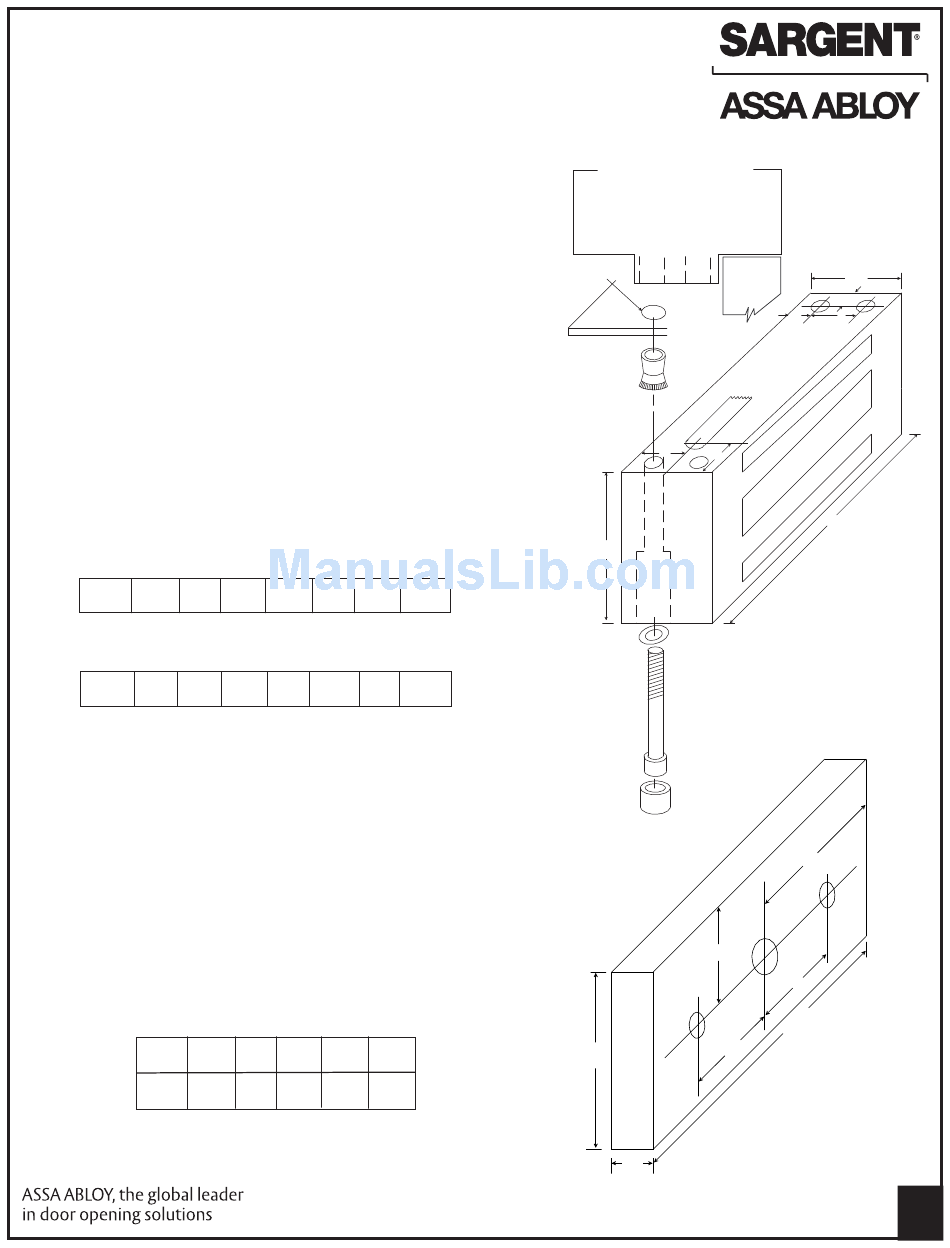

Fig. 1 STANDARD MAGNET DIMENSIONS
AND ASSEMBLY
MAGNET DIMENSIONS (INCHES)
A B C
8.0 1.75 2.9
MAGNET DIMENSIONS (MM)
A B C
203.2 44.45 73.66 20.57 25.4 10.16 12.7 19.05
Fig. 2 ARMATURE DIMENSIONS AND ASSEMBLY
Important: Armature plate must be able to float
freely. Do not over tighten. The armature
plate will automatically adjust to the
proper position with the magnet.
ARMATURE DIMENSIONS
A
(IN.)
6.0 2.75
(MM)
152.4 69.9 12.7 34.8
D E F G
.81 1.0 .4 .5
D E F G
B C D E F
.5 1.37 3 2.25
76.2 57.2
3/8" (US) OR 9.5MM
(METRIC) HOLE
H
.7
H
SOCKET CAP SCREW
(US VERSION)
1/4-20 X 3"
(METRIC VERSION)
6MM-1MM X 75MM
B
Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group
company. All rights reserved. Reproduction in whole or in part without the
express written permission of Sargent Manufacturing Company is prohibited.
HEAD
DOOR
HEADER
BLIND NUT
CABLE
D
E
C
GOLD
WASHER
TAMPER
CAP
D
F
C
B
F
H
G
A
E
F
A
1
A7361A
