Commissioning

Once the ISOMETER® has been mounted and connected, the supply voltage and the HV system must be
connected.
It can be checked for proper functioning in the following manner:
For appropriate functionality of the CAN-bus interface, a correctly installed termination is necessary. After
the supply voltage has been switched on, the device automatically sends the message IMD_Info_General
at 100 ms intervals. Provided that the device has been configured correctly (e. g. parameter Isolation:
Threshold_Warning, Isolation: Threshold_Error, etc.), and it is in status: Device Activity = 0xFE, and at least 12
individual measurements have been performed, an alarm should no longer be active (Status: Warnings and
Alarms).

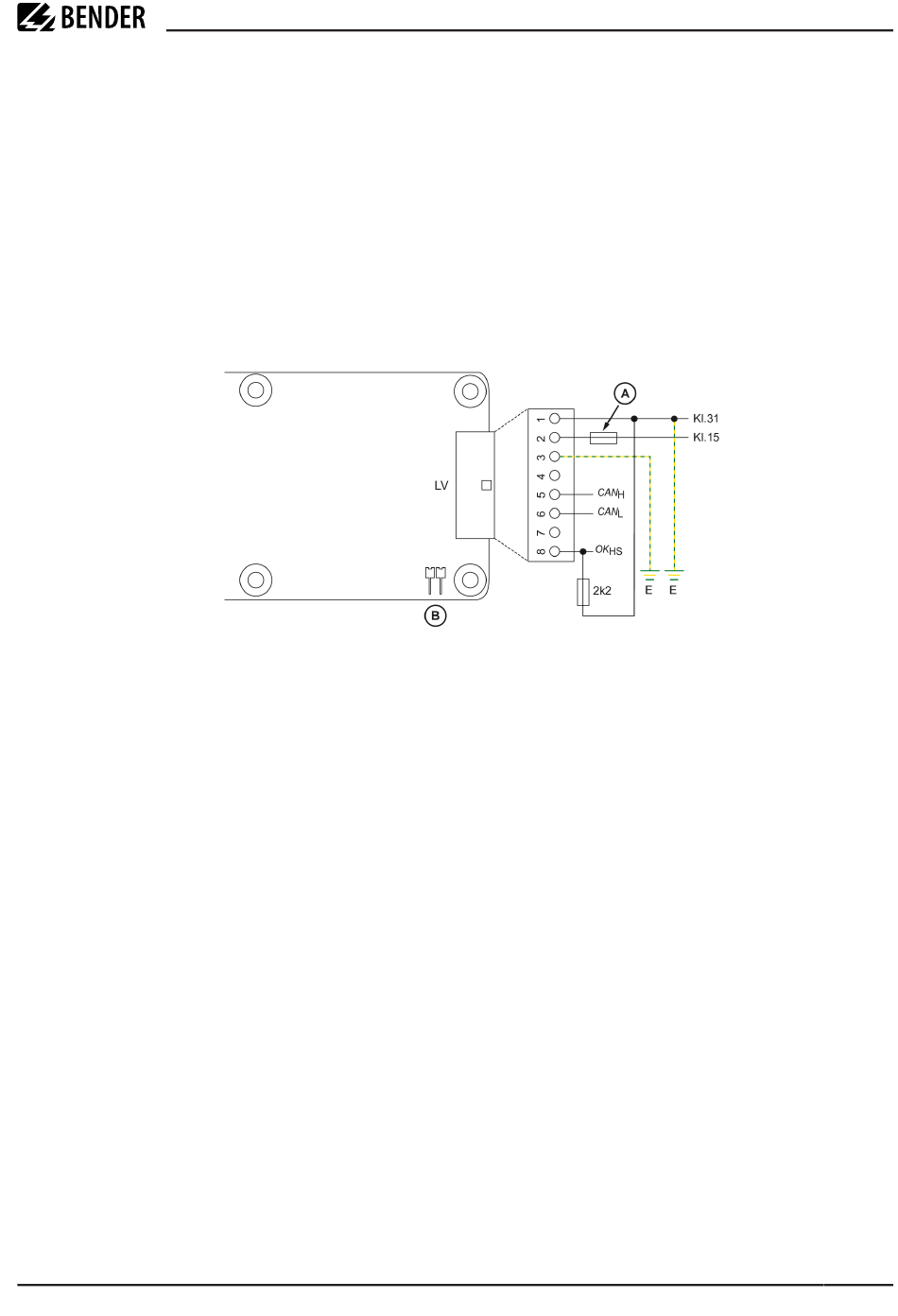

A
Back-up fuse
Plug in jumper for activation of 120 Ω termination
B
iso175_D00415_01_M_XXEN/11.2023
ISOMETER® iso175
