Dimensions and mounting

Dimensions

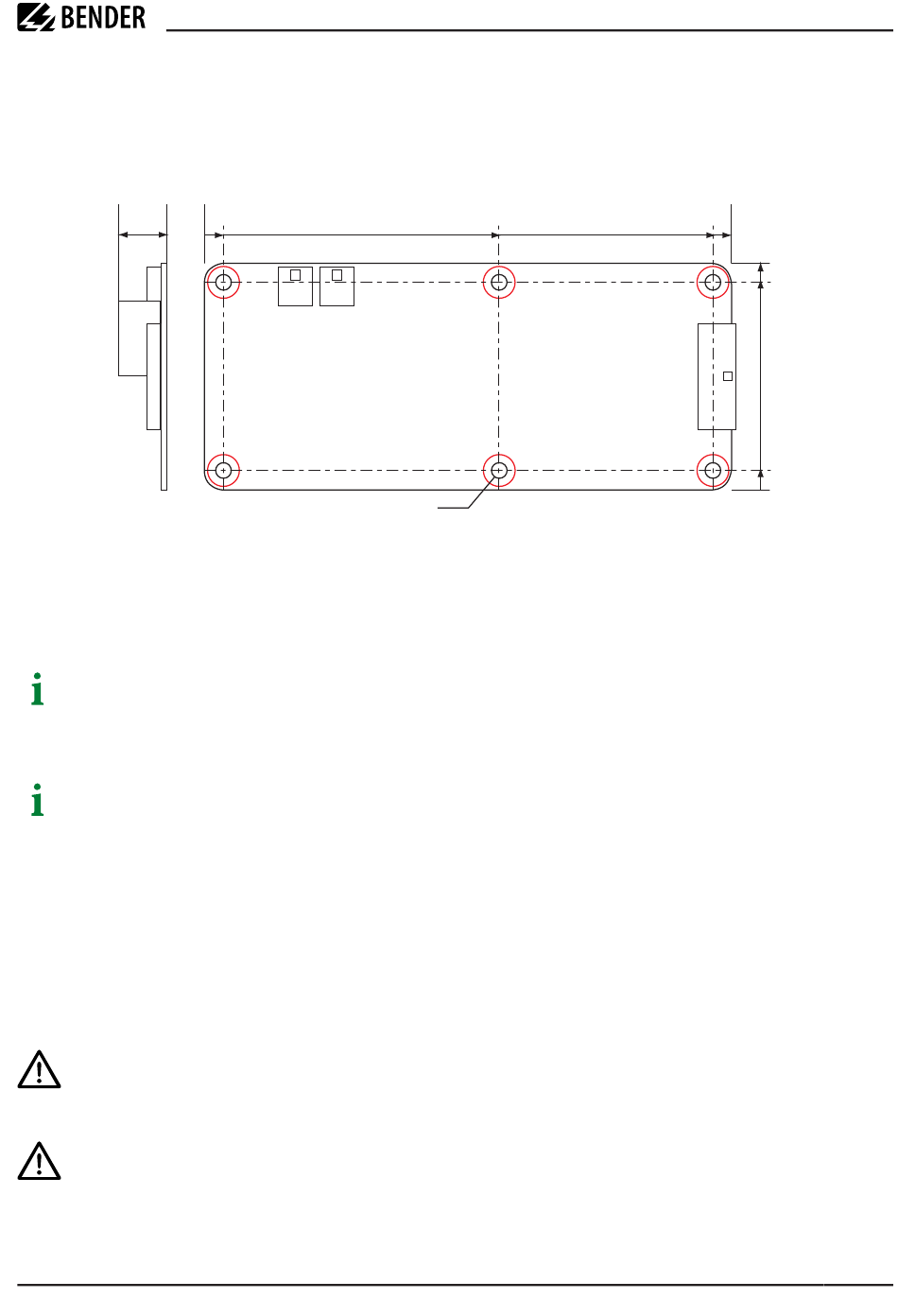

Dimension diagram
15
1*
LV: protrudes 1 mm from the printed circuit board edge
Red markings: fastening positions
Mounting
Mounting and connector kits are not part of the scope of delivery (see chapter ordering information
"Accessories", page 34).
Fastening
• Mounting direction: any, deflection see "Tabular data", page 29, Other
• Diameter of the fastening areas: max. 8 mm.
• Metal bolts with washers between bolt head and printed circuit board: 6 x M 4
• Tightening torque for the bolts: max. 4 Nm
• Pressure exerted on the printed circuit board at the fastening areas: max. 10 Nm
ADVICE
The washers must be positioned within the gold-plated copper areas designated as fastening areas.
This ensures the minimum insulation spacing of 11.4 mm to other parts.
ADVICE
If the device is mounted on an electrically conductive mounting plate, a minimum height of 13.4 mm
must be observed.
0
5
Dimensions in mm (L x W x H) 140 x 60 x 15 mm
78.25
ø 4.2
iso175_D00415_01_M_XXEN/11.2023
ISOMETER® iso175
140
135
60
55
1*
5
0
21
