Backside; Installation; Set Up And Operation - SHOWTEC Compact Par 36 CW Instructions Manual

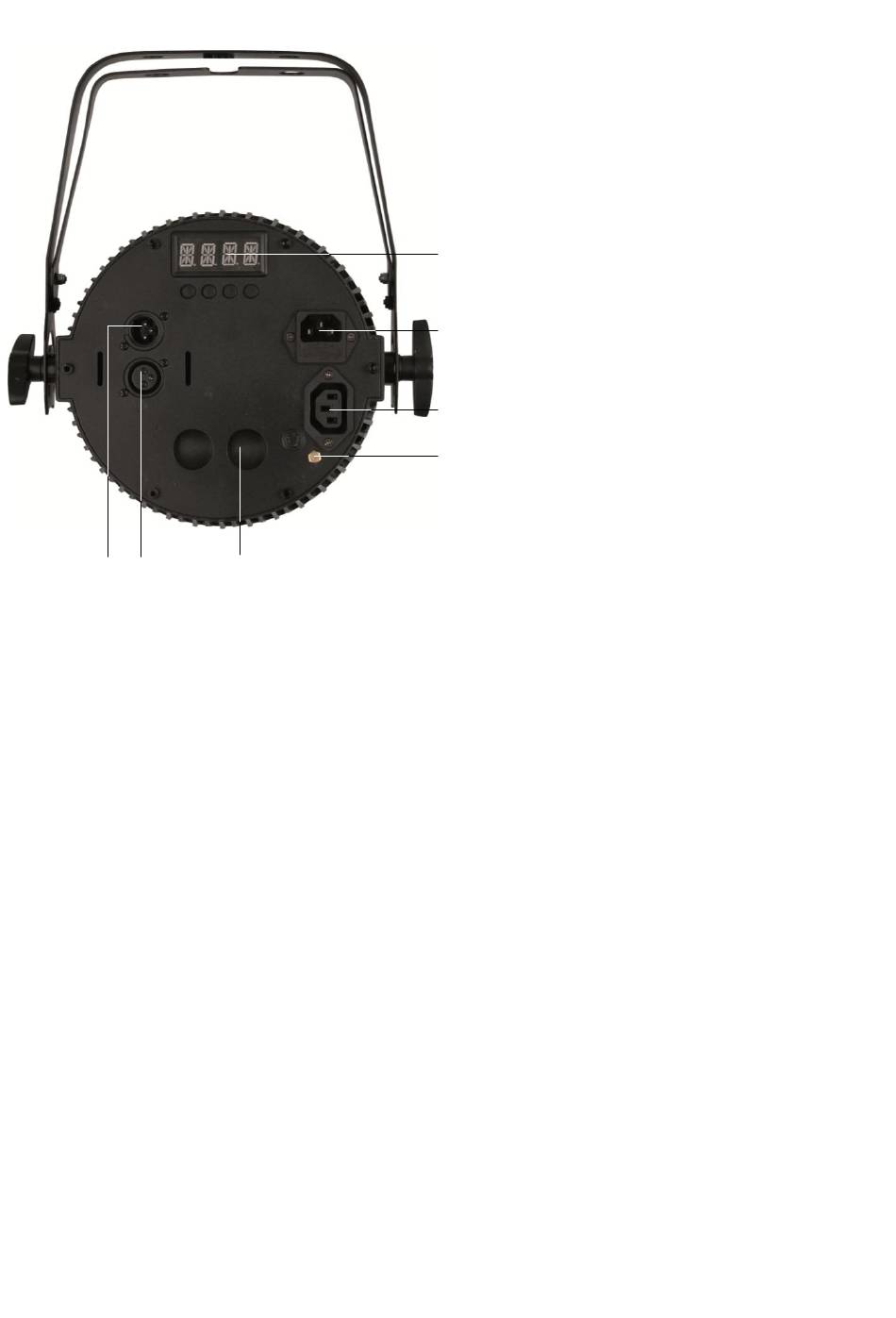

Backside

7 8
3) LCD Display + Menu Buttons
4) IEC Powerconnector IN + Fuse 2A/250V
5) IEC Powerconnector OUT
6) Earth connection

Installation

Remove all packing materials from the Compact Par 36. Check that all foam and plastic padding is
removed. Connect all cables.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply. The device can be music-controlled by its built-in
microphone.
9
3
4
5
6
Fig. 2
7) 3-pin DMX In
8) 3-pin DMX Out
9) Eye for Safety cable
7
