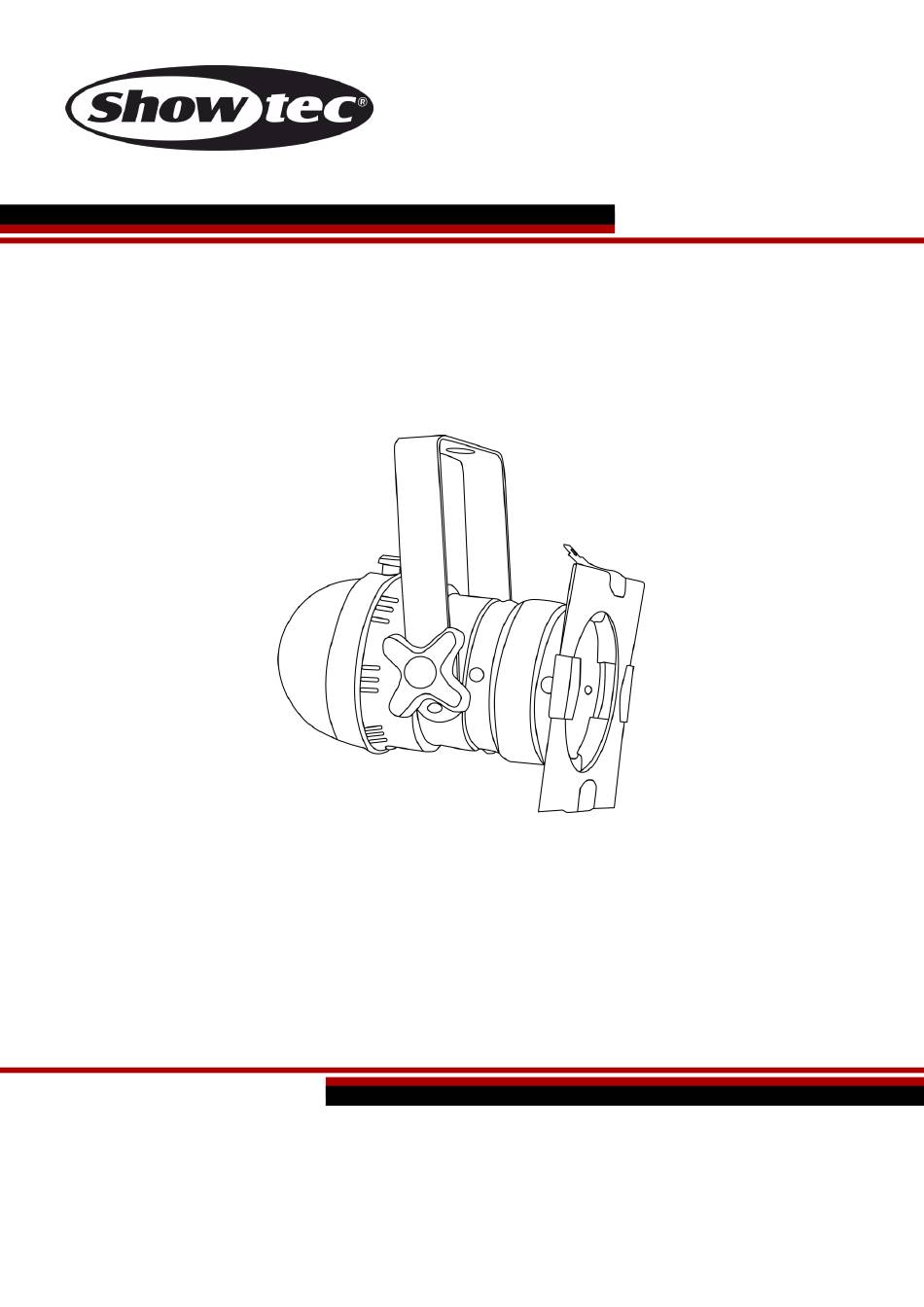

MANUAL
ENGLISH
Parcan 36 Short
V1
Ordercode: 30201/30202
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Parcan 36 Short V1 and is the answer not in the manual?

Questions and answers

Summary of Contents for SHOWTEC Parcan 36 Short V1

  • Page 1 MANUAL ENGLISH Parcan 36 Short Ordercode: 30201/30202 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
  • Page 2: Table Of Contents

    Parcan 36 Short Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains ............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Optional accessories ..............................7 Overview ..................................
  • Page 3: Warning

    Save the carton and all packing materials. In the event that the fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Parcan 36 Short without power cable ● 1x Filter frame ● User manual...
  • Page 4  If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
  • Page 5: Operating Determinations

    Parcan 36 Short Operating Determinations ● This device is not designed for permanent operation. Regular operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light-output and the illuminated surface must be bigger than 0,5 meter.
  • Page 6: Connection With The Mains

    Parcan 36 Short The Parcan 36 Short can be placed on a flat stage floor or mounted to any kind of truss by a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power plug. Always check if the right color cable is connected to the right place.
  • Page 7: Return Procedure

    Parcan 36 Short Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
  • Page 8: Description Of The Device

    Parcan 36 Short Description of the device Features The Showtec Parcan 36 Short is a small parcan with high output and great effects. • Lamp: PAR 36 • Lamp socket: Screw • Capacity: max 30W • None Power cable • Filter frame: Included •...
  • Page 9: Installation

    Parcan 36 Short Installation Remove all packing materials from the Parcan 36 Short. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty.
  • Page 10: Troubleshooting

    04) If you are unable to determine the cause of the problem, do not modify the Parcan 36, as this may damage the unit and the warranty will become void. 05) Return the device to your Showtec dealer. Problem Probable cause(s)
  • Page 11: Dimensions

    Parcan 36 Short Dimensions Website: www.Showtec.info Email: service@highlite.nl Ordercode: 30201/30202...
  • Page 12 ©2017 Showtec...
