- Page 1 MANUAL ENGLISH Parcan 64 Long, Terminalset Ordercode: 30418 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Parcan 64 Long, Terminalset Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Overview ..................................7 Installation ................................... 8 Set Up and Operation ............................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Parcan 64 Long, Terminalset with 1,5m. powercable Color frame ... - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Parcan 64 Long, Terminalset • The user is responsible for correct positioning and operating of the Parcan. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. - Page 6 Parcan 64 Long, Terminalset The Parcan can be mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place.
-
Page 7: Return Procedure
Parcan 64 Long, Terminalset Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device

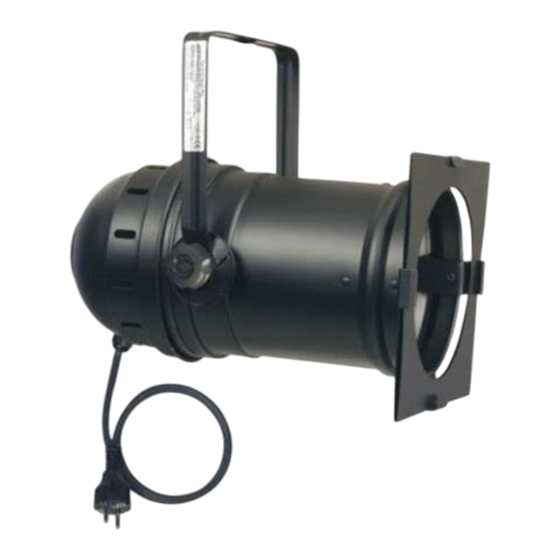

Parcan 64 Long, Terminalset Description of the device Features The Parcan 64 Long, Terminalset is a theatre spotlight fixture with high output and great effects. Input voltage: 240V, 50Hz Power consumption: 1000W Light source: 1 x Par 64 GX16d VNSP GE (not included) ... -
Page 9: Installation
Parcan 64 Long, Terminalset Installation Remove all packing materials from the Parcan 64 Long, Terminalset. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 10: Color Frame Retaining Clip
Parcan 64 Long, Terminalset Color frame retaining clip The color frame holder is equipped with a spring-loaded retaining clip. This prevents color frames and accessories from falling out. Make sure that all color frame accessories are locked in position with the retaining clip before hanging the Parcan 64 Long, Terminalset. -
Page 11: Maintenance
Suspect two potential problem areas as: the power supply and the LEDs. 01) Power supply. Check if the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Parcan to your Showtec dealer. 03) If both of the above appear to be O.K., plug the unit in again. -
Page 12: Product Specifications
Parcan 64 Long, Terminalset Product Specifications Model: Showtec Parcan 64 Long, Terminalset Input Voltage: 240 VAC, 50Hz Power consumption: 1000W (full output) Dimensions: 425 x 263 x 335 mm (LxWxH) Weight: 1,6 kg Electro-mechanical effects: Light source Par 64 GX16d VNSP GE (not included) -
Page 13: Notes
Parcan 64 Long, Terminalset Notes Ordercode: 30418... - Page 14 Parcan 64 Long, Terminalset Ordercode: 30418...
- Page 15 Parcan 64 Long, Terminalset Ordercode: 30418...
- Page 16 ©2015 Showtec...
