- Page 1 MANUAL ENGLISH Performer Fresnel Mini Ordercode: 33055 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Performer Fresnel Mini Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................6 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Features ..................................7 Overview .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Performer Fresnel Mini ● DC input voltage: 51VDC, 1A ●... - Page 4 ● If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Performer Fresnel Mini ● Repairs, servicing and electric connection must be carried out by a qualified technician. ● WARRANTY: Till one year after date of purchase. Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. - Page 6 Performer Fresnel Mini The Performer Fresnel Mini can be placed on a flat stage floor, by means of the included mounting bracket, or be mounted to any kind of truss with a clamp and a quick-lock bracket. Improper installation can cause serious damage to people and property!
-
Page 7: Connection With The Mains
Performer Fresnel Mini Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE... -
Page 8: Description Of The Device

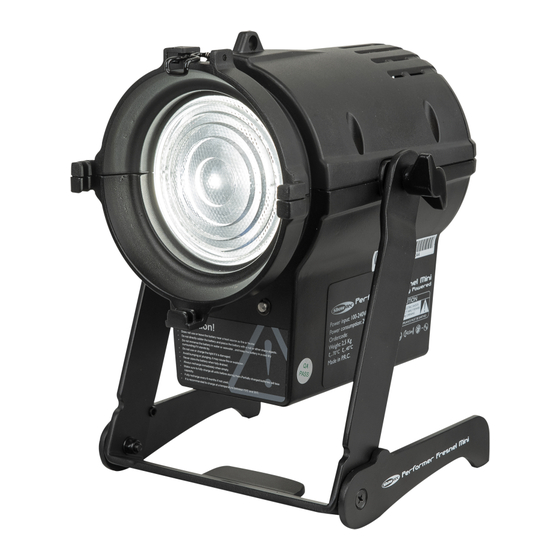

Description of the device Features The Showtec Performer Fresnel Mini spotlights are extremely suitable for a wide range of applications. They can be used as accent lighting on decors, at company parties, in theatres and even for TV applications. Due to their compact design, they can be used anywhere. The manual zoom ensures that the bundle is adjustable in the right size and the supplied barn door ensures the correct design of the bundle. -
Page 9: Overview
Performer Fresnel Mini Overview Fig. 01 01) Safety eye 02) 1x 30W LED 03) Filterframe 04) Mounting brackets with inclination screw 05) Adjustment screw Back Fig. 02 06) Input voltage: 100–240 V AC, 50/60 Hz 07) Adapter 08) DC input voltage: 51VDC, 1A 09) Green Power LED 10) Manual Zoom: 12°-40°... -
Page 10: Installation
Performer Fresnel Mini Installation Remove all packing materials from the Performer Fresnel Mini. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 11: Set Up And Operation
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the adapter in the Performer Fresnel Mini. 04) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 12: Zoom Operation
Performer Fresnel Mini Zoom operation Turn the zoom button counter clockwise to increase the Angle. Turn the zoom button clockwise to reduce the Angle. Ordercode: 33055... -
Page 13: Battery Endurance
Performer Fresnel Mini Battery endurance Battery lasts about 86.6h at 5.5% brightness (90 degree rotation) Battery lasts about 43.3h at 10% brightness (180 degree rotation) Battery lasts about 9.3h at 57% brightness (270 degree rotation) Ordercode: 33055... -
Page 14: Maintenance
04) If all appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the Performer Fresnel Mini, as this may damage the unit and the warranty will become void. - Page 15 Check if power is switched on and No power to the fixture One or more cables are plugged in fixtures do not ● Return the device to your Showtec function at all Internal fuse blown dealer Fixtures reset The controller is not connected ●...
-
Page 16: Product Specifications
Performer Fresnel Mini Product Specifications Model: Showtec Performer Fresnel Mini Input voltage: 100–240V AC, 50/60 Hz DC input voltage: 51VDC, 1A Power consumption: 20 W Dimensions: 275 x 175 x 188 mm (LxWxH) Weight: 2,54 kg (excl. adapter) 2,86 kg (incl. adapter) -
Page 17: Dimensions
Performer Fresnel Mini Dimensions Ordercode: 33055... -
Page 18: Notes
Performer Fresnel Mini Notes Ordercode: 33055... - Page 19 Performer Fresnel Mini Ordercode: 33055...
