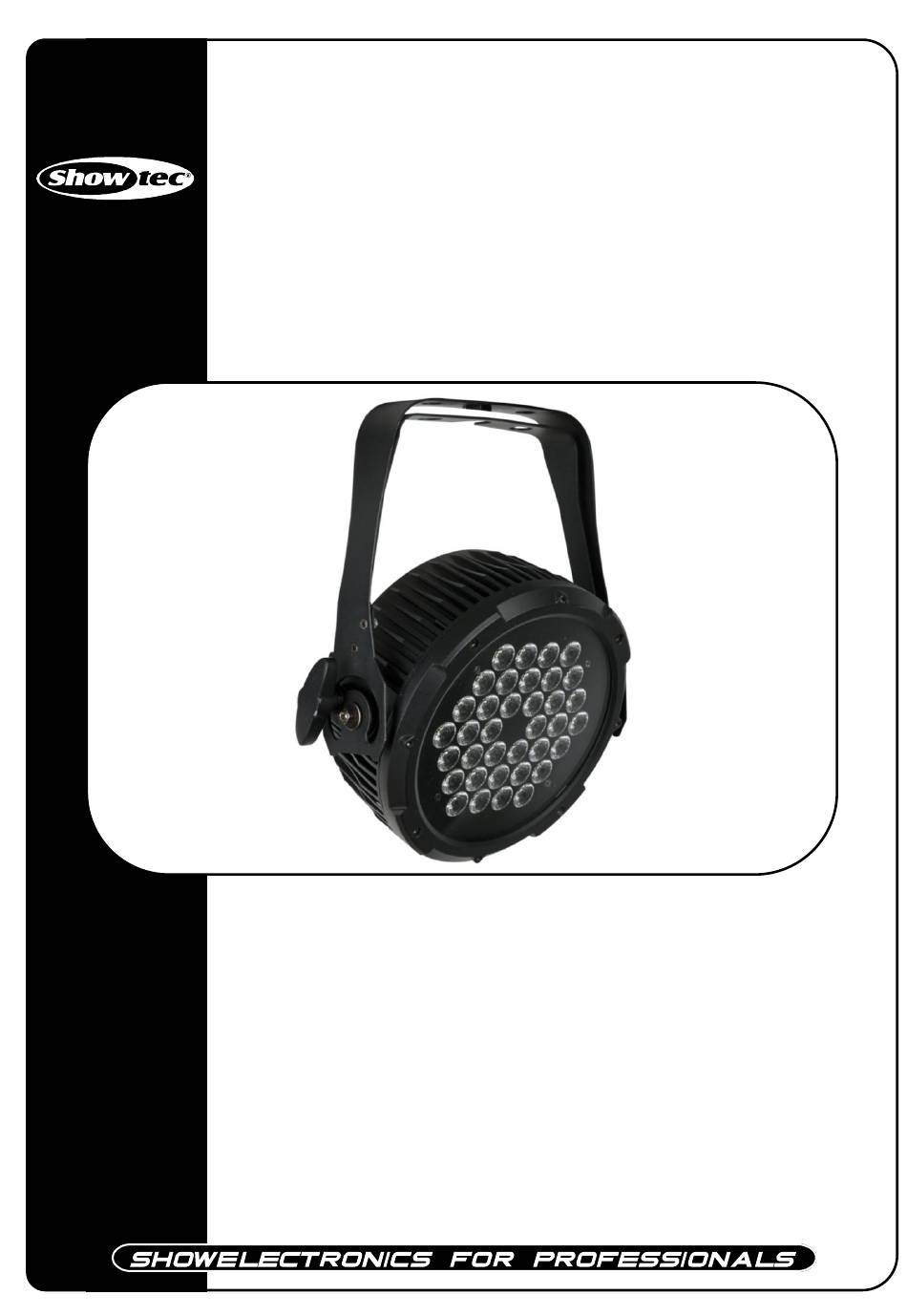

- Page 1 Compact Par 36 CW/WW ORDERCODE 42591 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec Compact Par 36 Product Guide ™ Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Overview ..................................6 Backside ..................................7 Installation ................................... -
Page 4: Warning
Warning FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light-output and the illuminated surface must be more than 0.5 meter. •... -
Page 7: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN... -
Page 8: Description Of The Device
Description of the device Features The Showtec Compact Par 36 is a light effect with high output and great effects. • 18x Cool White LEDs and 18x Warm White LEDs combined with high efficiency optics • very suitable for use in venues with a limited space or as truss-warmer. -
Page 9: Backside
Backside Fig. 2 3) LCD Display + Menu Buttons 7) 3-pin DMX In 4) IEC Powerconnector IN + Fuse 2A/250V 8) 3-pin DMX Out 5) IEC Powerconnector OUT 9) Eye for Safety cable 6) Earth connection Installation Remove all packing materials from the Compact Par 36. Check that all foam and plastic padding is removed. -
Page 10: Control Modes
Control Modes There are 5 modes: • Select built-in programs • Manual control • Pre-programmed Colors • Master/Slave • DMX512 One Compact Par (Built-in Programs) 1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 2. -
Page 11: Multiple Compact Pars (Dmx Control)
Multiple Compact Pars (DMX Control) 1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. Plug the end of the electric mains power cord into a proper electric power supply socket. Use a 3-p XLR cable to connect the Compact Pars. -
Page 12: Control Panel
Control Panel Fig. 5 A. LED Display E. Up Button B. MODE Button F. Down Button C. SETUP Button DMX Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. DMX Addressing The control panel on the front side of the base allows you to assign the DMX fixture address, which is the first channel from which the Compact Par will respond to the controller. -
Page 13: Menu Overview
Menu Overview... -
Page 14: Main Menu Options
Main Menu Options 1. DMX address 2. DMX Modes 3. Dim Mode 4. Pre-programmed Color Temperatures 5. Color Temperature Manual Mode 6. Built-in Programs The Compact Par 36 will only show its version number at start-up ! 1. Built-in Programs 1) Press the MODE button on the device, until the display shows 2) Now press ENTER to open this menu. -
Page 15: Pre-Programmed Color Temperatures
3. Pre-programmed Color Temperatures 1) Press the MODE button on the device, until the display shows 2) Now press ENTER to open this menu. With this menu you can set the Pre-programmed colors of the Compact Par. You can choose 9 built-in colors , by using the Up / Down buttons. -
Page 16: Slave Mode
6. Slave Mode 1) You can use the same functions on the master device as described on page 12 (Built-in Programs, Color Temperature or Manual control). This means on the master device you can set your desired operation Mode and all slave devices will react the same as the master device. 2) When the display shows : this device is a slave device. -
Page 17: Maintenance
204-255 Non-Linear Dimmer 3 Maintenance The Showtec Compact Par requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and a soft cloth. -
Page 18: No Response To Dmx
No Response to DMX Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. Response: Suspect three potential problem areas: the power supply, the lamp, the fuse. 1. Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. Try your DMX control again. -
Page 19: Product Specification
Product Specification Model: Showtec Compact Par Power: 240V-50Hz (CE) • 18x 3-in-1 RGB LED's combined with high efficiency optics • very suitable for use in venues with a limited space or as truss-warmer. • Compact Housing • Stylish design • Easy Link Up to 15 units via Power In-Power Out •...
