Summary of Contents for SHOWTEC Parcan 20 Long V1

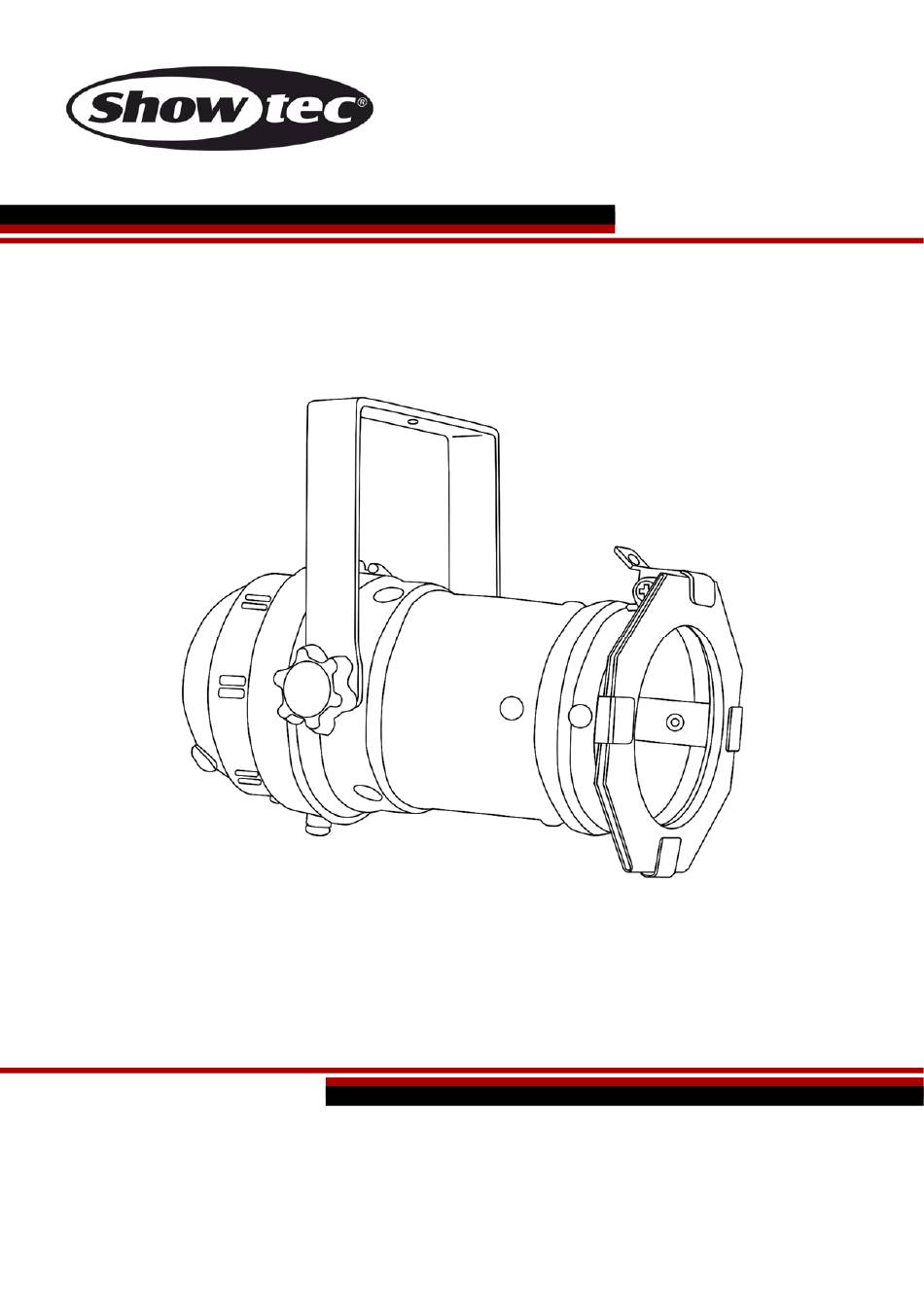

- Page 1 MANUAL ENGLISH Parcan 20 Long Ordercode: 30151/30152 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Parcan 20 Long Table of contents Warning ................................... 2 Safety Instructions ..............................2 Operating Determinations ............................4 Rigging ..................................4 Connection with the mains ............................. 5 Return Procedure ..............................6 Claims ..................................6 Description of the device ............................. -
Page 3: Warning
Your shipment includes: Showtec Parcan 20 Long with a Schuko power cable (0,3 m) 1 x filter frame ... - Page 4 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Parcan 20 Long Operating Determinations This device is not designed for permanent operation. Regular operation breaks will ensure that the device will serve you for a long time without defects. The minimum distance between light output and the illuminated surface must be bigger than 0,5 meter. -
Page 6: Connection With The Mains
Parcan 20 Long The Parcan 20 Long can be mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power plug. Always check if the right color cable is connected to the right place. -
Page 7: Return Procedure
Parcan 20 Long Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device

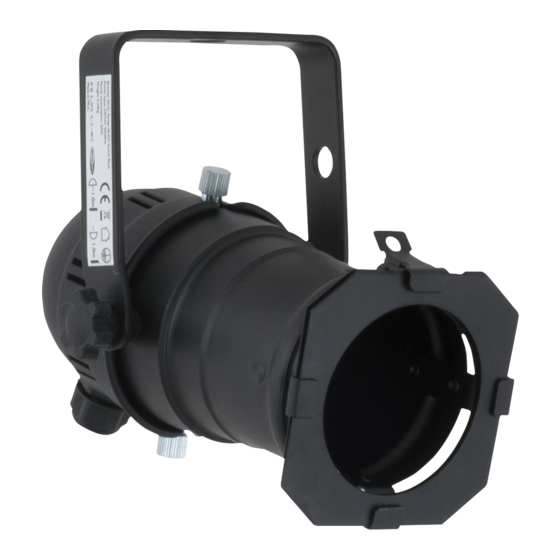

Parcan 20 Long Description of the device Features The Showtec Parcan 20 Long is a small parcan with high output. • Par: 20 • Lamp socket: E27 • Capacity: max. 50W • Input voltage: 230V AC, 50Hz • Connections: Schuko power cable (0,3 m) •... -
Page 9: Lamp Housing
Parcan 20 Long Lamp Housing Fig. 02 04) Lamp socket E27 05) Schuko power cable (0,3 m) Installation Remove all packing materials from the Parcan 20 Long. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 10: Installing The Lamp
Parcan 20 Long Installing the Lamp The Showtec Parcan 20 Long uses the Par 20 E27 Spot Osram lamp, 50W (ordercode 80118) and the Par 20 E27 Spot Showtec lamp, 50W (ordercode 82100) as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. -
Page 11: Set Up And Operation
Parcan 20 Long Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 12: Changing The Lamp
04) If you are unable to determine the cause of the problem, do not modify the Parcan, as this may damage the unit and the warranty will become void. 05) Return the device to your Showtec dealer. Problem Probable cause(s) Solution •... -
Page 13: Product Specifications
180 x 110 x 130 mm (LxWxH) Weight: 0,4 kg Allowed lamp models*: 80118 – Par 20 E27 Spot Osram 82100 – Par 20 E27 Spot Showtec Max. ambient temperature t 25°C Max. housing temperature t 80°C Minimum distance: Minimum distance from flammable surfaces:... -
Page 14: Dimensions
Parcan 20 Long Dimensions Ordercode: 30151/30152... -
Page 15: Notes
Parcan 20 Long Notes Ordercode: 30151/30152... - Page 16 ©2017 Showtec...
