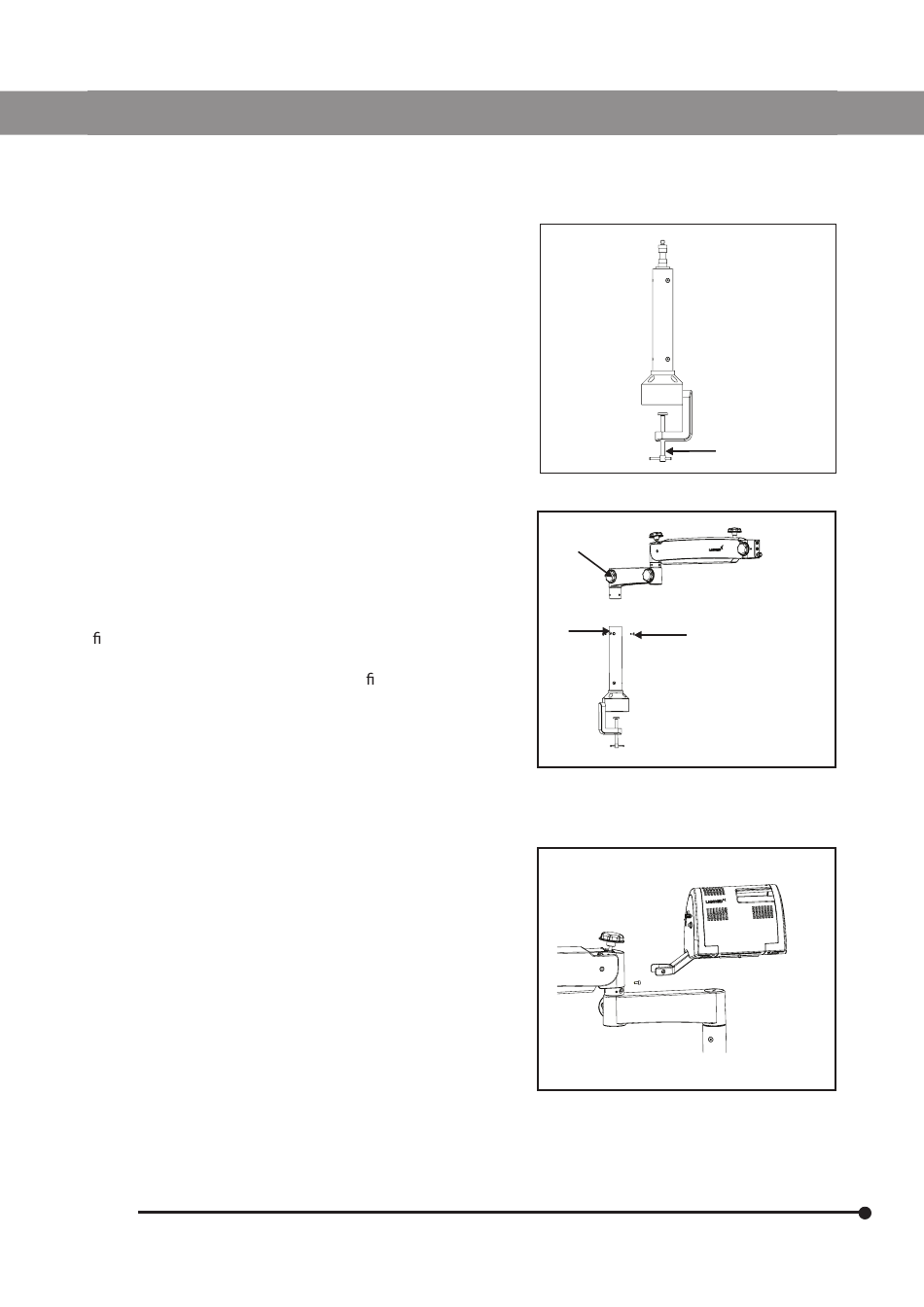

INSTALLATION

8.1 Engage the column on the table top by tighten the

clamping screw from the bottom as shown as (A) in

Fig. 2.

8.2 Retrieve the swivel arm and suspension arm assem-

bly from the packing box.

Ensure loosening of swivel arm lock knob( A). Install the

swivel arm assembly on the upright column (1)

gure 3.

Tighten the screw (2) as shown in g. 3 for proper

securing the swivel arm with suspension arm.

8.3 Retrieve the eVALUX illumination box with small

column assembly from the packing box.

Fix it in between the swivel and suspension arm assem-

bly as shown in Fig. 4 and secure it by tighten the

screws provided.

6167500-795

PRIMA DNT Trainer

Fig. 2

Fig. 3

Fig. 4

Issue 1.0

Printed on May,2013
