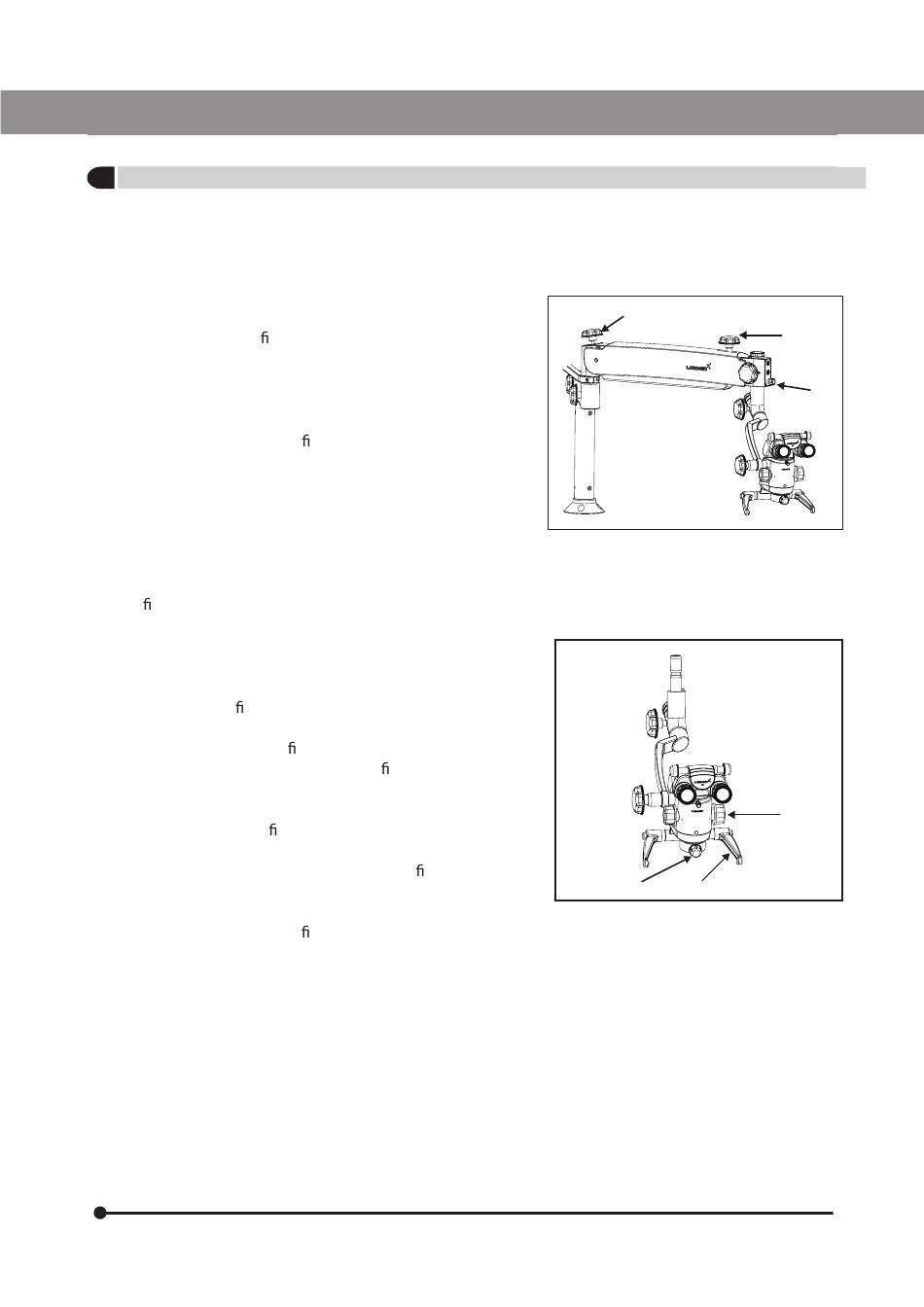

INSTRUCTIONS FOR USING THE MICROSCOPE
Setting up of Microscope:
1. Clamp the table mount on the table properly.
2. Although tension on microscope is factory preset as
per the ordered con guration. Still user can adjust up
and down force by tuning the knob (B) clockwise or
anticlockwise.
3. Lock the Up & Down movement of suspension arm
using locking knob(C) in g. 10 after coarse focusing
of the attendance area.
4. Adjust the eye distance as per IPD scale according to
your convenience.
5. The illumination is controlled through the control knob
(A), g. 9. Rotate it clockwise or anti clock wise to
achieve desired illumination level Functional setup
keep it as minimum.
Setting up of magni cation (Ref. Fig. 10)
1. Adjust to highest magni cation with one of the rotat-
ing knobs (10a) provided at magni cation changer.
2. Fine focusing is done through knob (10b) provided on
objective as shown in g. 10
3. Absolute centering of observation area in eld of view
can be done by manual handle (10c).
4. Make sure that the magni cation changer is engaged
in the index point at the click stop position.
6167500-795 PRIMA DNT Trainer
PRIMA DNT Trainer
B
Fig. 9
10a
10c
10b
Fig. 10
