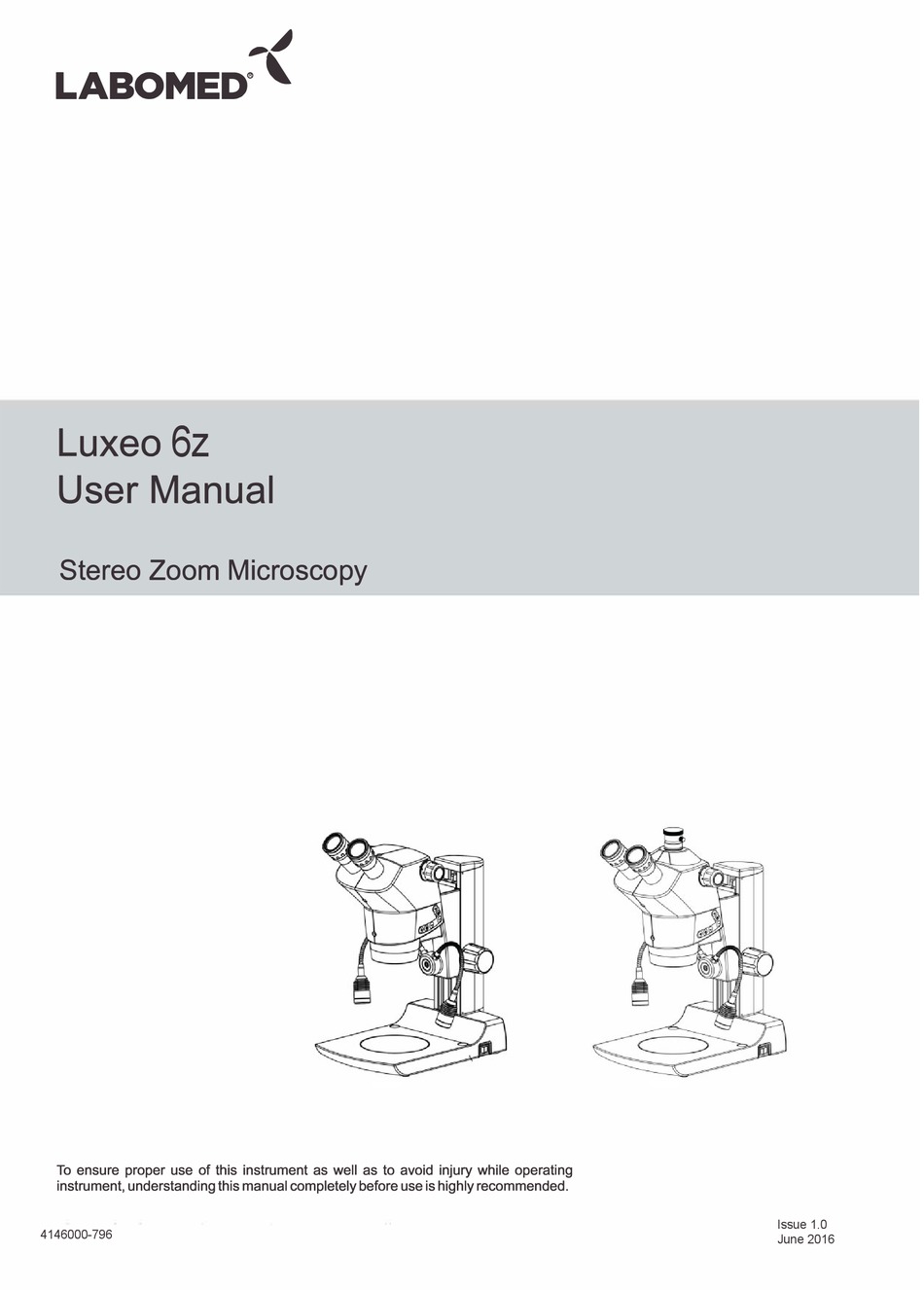

LABOMED
Luxeo 6z

User Manual

Stereo Zoom Microscopy
To ensure proper use of this instrument as well as to avoid injury while operating
instrument, understanding this manual completely before use is highly recommended.
4146000-796
,.�
®
�
Issue 1.0
June 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Luxeo 6z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Labomed Luxeo 6z

Summary of Contents for Labomed Luxeo 6z

  • Page 1: User Manual

    ,.� ® LABOMED � Luxeo 6z User Manual Stereo Zoom Microscopy To ensure proper use of this instrument as well as to avoid injury while operating instrument, understanding this manual completely before use is highly recommended. Issue 1.0 4146000-796 June 2016...
  • Page 2 In developing the LABOMED Luxeo 6z, we have placed great emphasis on simple, self- explanatory operation. However, please take the time to read the user manual and the notes on operating safety to learn about all the features and capabilities of your stereomicroscope so that you can use it to its best advantage.

  • Page 3: Table Of Contents

    3.1. Unpacking your microscope....................7 4. LUXEO 6z BINOCULAR MICROSCOPE 5. LUXEO 6z TRINOCULAR MICROSCOPE 6. DARKFIELD/BRIGHTFIELD (DF/BF) BASE (if supplied) 7. MIRROR BASE LUXEO 6z BINOCULAR MICROSCOPE 8. MIRROR BASE LUXEO 6z TRINOCULAR MICROSCOPE 13 - 14 9. INSTALLATION 9.1. Microscope setup......................13 9.2.
  • Page 4 CONTENTS (continued) 12. MAGNIFICATION CHART 13. SPECIFICATIONS 14. ELECTRICALS 15. SYSTEM DIAGRAM 16. SUMMARY OF OBSERVATION PROCEDURE 17. TROUBLESHOOTING GUIDE Issue 1.0 4146000-796 June 2016...

  • Page 5: Introduction

    INTRODUCTION The Luxeo 6z is a stereoscopic zoom microscope reflecting a modern design as well as the latest in optical and mechanical advancements. Designed for professionals as well as students, this microscope offers many features and functions for a diverse set of applications.

  • Page 6: Safety Information

    SYMBOLS Warning / Caution Symbols Used in this Manual Though Labomed Products are designed to provide you with the utmost safety during use, incorrect usage or disregard of the instructions may cause personal injury or property damage. For your own safety, read the instruction manual carefully and thoroughly before using the product.
  • Page 7 4. Disposal Disposal must comply with locally applicable laws and regulations. If the warning label is stained or peeled off, contact your LABOMED distributor. Issue 1.0 4146000-796 June 2016...

  • Page 8: Important Notes

    This User manual includes important instructions related to operating safety, maintenance and accessories. • It is prohibited to reproduce or transmit this manual in part or whole without Labomed’s expressed permission. • The contents of this manual are subject to change without notice.

  • Page 9: Care & Maintenance Instructions

    • Follow the instructions of the disinfectant manufacturer. • We recommend concluding a service contract with Labomed. 2. Cleaning the lenses : To clean the lens surfaces, remove dust using a soft brush or gauze (compressed air dust cans are ideal).
  • Page 10 Only the following accessories may be used with the stereomicroscope: • The Labomed accessories described in this user manual. • Other accessories, provided that these have been expressly approved by Labomed as being technically safe in this context. Maintenance • The labomed Luxeo 6z stereomicroscope is basically maintenance- free.

  • Page 11: Initial Setup

    List Of Parts: 1. Power Adapter (SD 165-24V-P5) 2. Power Cable 3. Thermocol box (Upper) 4. Luxeo 6z Microscope (Bino / Trino) 5. Goose Neck LED Assembly (4147000-835) 6. Front Support 7. DF Base compensator 8. DF Base (if ordered) 4146100-820 9.

  • Page 12: Luxeo 6Z Binocular Microscope

    Luxeo 6z LUXEO 6z BINOCULAR MICROSCOPE Part No. - 4146101 - 800 Eye Pieces Magnification Changer Membrane switch for Goose neck LED illumination Control Magnichanger with Observation Tube Coarse adjustment knob Membrane Switch for Ring Light Ring Light Goose Neck LED Black &...

  • Page 13: Luxeo 6Z Trinocular Microscope

    Luxeo 6z LUXEO 6z TRINOCULAR MICROSCOPE Part No. - 4146102 - 800 Eyepieces Trinocular Tube Magnification Changer Membrane switch for Goose neck LED illumination Control Observation Body Membrane switch for Ring Light Control ------ Coarse Adjustment Knob Ring Light ---------- Goose Neck LED Black &...

  • Page 14: Darkfield/Brightfield (Df/Bf) Base (If Supplied)

    DARK FIELD/BRIGHTFIELD (DF/BF) BASE Part No. - 4146100-826 Note: DF/BF base is not a standard configuration part of Luxeo 6z. It is supplied on order. For use of DF / BF base refer page no. 14. Specimen Plate Dark Field Base...

  • Page 15: Mirror Base Luxeo 6Z Binocular Microscope

    MIRROR BASE LUXEO 6z BINOCULAR MICROSCOPE Pre-Configured Mirror Base for Dark Field Illumination: Darkfield observation in Luxeo 6z is provided through a specialized stand controlling reflection mirror & light shielding plate to direct on inverted hollow cone of illumination towards specimen at obligue angles.

  • Page 16: Mirror Base Luxeo 6Z Trinocular Microscope

    MIRROR BASE LUXEO 6z TRINOCULAR MICROSCOPE Pre-Configured Mirror Base for Dark Field Illumination: Darkfield observation in Luxeo 6z is provided through a specialized stand controlling reflection mirror & light shielding plate to direct on inverted hollow cone of illumination towards specimen at obligue angles.

  • Page 17: Installation

    Luxeo 6z INSTALLATION Microscope Setup 1. Open Card board box from top. 2. Take out User manual, Power Cord and Power adapter. 3. Take out thermocol box out of card box and remove top of thermocol box. 4. Take out the Goose neck Assembly.

  • Page 18: Setting Up The Dark Field/Bright Field Attachment (If Supplied)

    The 9 pin male connector below dark field base will Fig. 5 automatically connect to the female 9 pin inlet (F) while pressing it gently on the Luxeo 6z base. Refer fig. 5 and 6. For illumination press On/Off button (N) on Dark field base.

  • Page 19: Observation & Use Of Microscope

    Luxeo 6z OBSERVATION & USE OF MICROSCOPE 10.1 Power on the microscope Plug in the output of power adapter and connect the power adapter to the AC socket . Press the power on switch (B). The incident illumination (Ring Light) is controlled by the switch (G) to glow all the 23 LED's, Eleven front LED's and Twelve rear LED's.

  • Page 20: Ipd Adjustment

    10. Microscope is ready to use. 10.5 Focusing torque adjustment Luxeo 6z Microscope is pre-adjusted to a focusing torque of 20 kg with standard Binocular or Trinocular. Still some user may feel uncomfortable while using additional accessories. Torque of focusing mechanism can be adjusted as per following procedure per user's convenience: 1.

  • Page 21: Use Of Auxillary Objectives

    Following Ausillary objectives can be threaded in through Ring Light. 0.5x 1. 0.5x - To be used with PL stand only as working distance is high. 2. 1.5x & 2x - To be used with all Luxeo 6z stands. 1.5x Fig. 13 Issue 1.0...

  • Page 22: Observing Extra Height Specimen

    1. Observation of extra height objects. 2. For lower magnification using 0.5x Auxillary objectives 11.2 Assembling PL Stand Luxeo 6z Place the Stand on the level surface. Fit the zoom pod with bracket to the pillar as shown and tighten it with clamping knob provided on the bracket.

  • Page 23: Magnification Chart

    Luxeo 6z MAGNIFICATION CHART Issue 1.0 4146000-796 June 2016...

  • Page 24: Specifications

    Luxeo 6z SPECIFICATIONS Optical System Greenough Magnification Zoom 6:1 Eyepieces WF 10x/22mm Diopter Correction ±5D 50-75 mm Viewing Angle Binocular, 45° Working Distance 110 mm Magnification range 8x to 50x Object field diameter 4.4 to 27.50 mm Eyegaurds Foldable Illumination control Incident Light- LED Ring Light with options of ARC and circular Illumination with intensity control.

  • Page 25: Electricals

    Luxeo 6z ELECTRICALS Input rating 100 V - 240 V / 50 - 60 Hz Output rating 24 V - 2.7 A Fuse rating 250 V / 1.4 A Voltage fluctuation +/- 10% (Fluctuations more than +/- 10% may damage to the instrument.

  • Page 26: System Diagram

    Luxeo 6z SYSTEM DIAGRAM Issue 1.0 4146000-796 June 2016...

  • Page 27: Summary Of Observation Procedure

    Luxeo 6z SUMMARY OF OBSERVATION PROCEDURE Flip the main switch to ''ON'' Switch incident and/or transmitted illumination as required. The illumination for Membrane incident light can be controlled through the switches for membrane switches provided on the observation incident head.

  • Page 28: Troubleshooting Guide

    Under certain conditions, performance of the unit may be adversely affected by factors other than defects. If problems occur, please review the following list and take remedial action as needed. It you cannot solve the problem after checking the entire list, please contact Labomed for assistance. Remedy...
  • Page 29 CA94538 sales@laboamerica.com LABOMED and Luxeo are registered trademarks of Labo America. Inc. With a policy of continuous development, Labo America, Inc. reserves the right to change design and specifications without prior notice. © 2010 Labo America, Inc. I 4144000-990A 11-2010 Rev. A...
