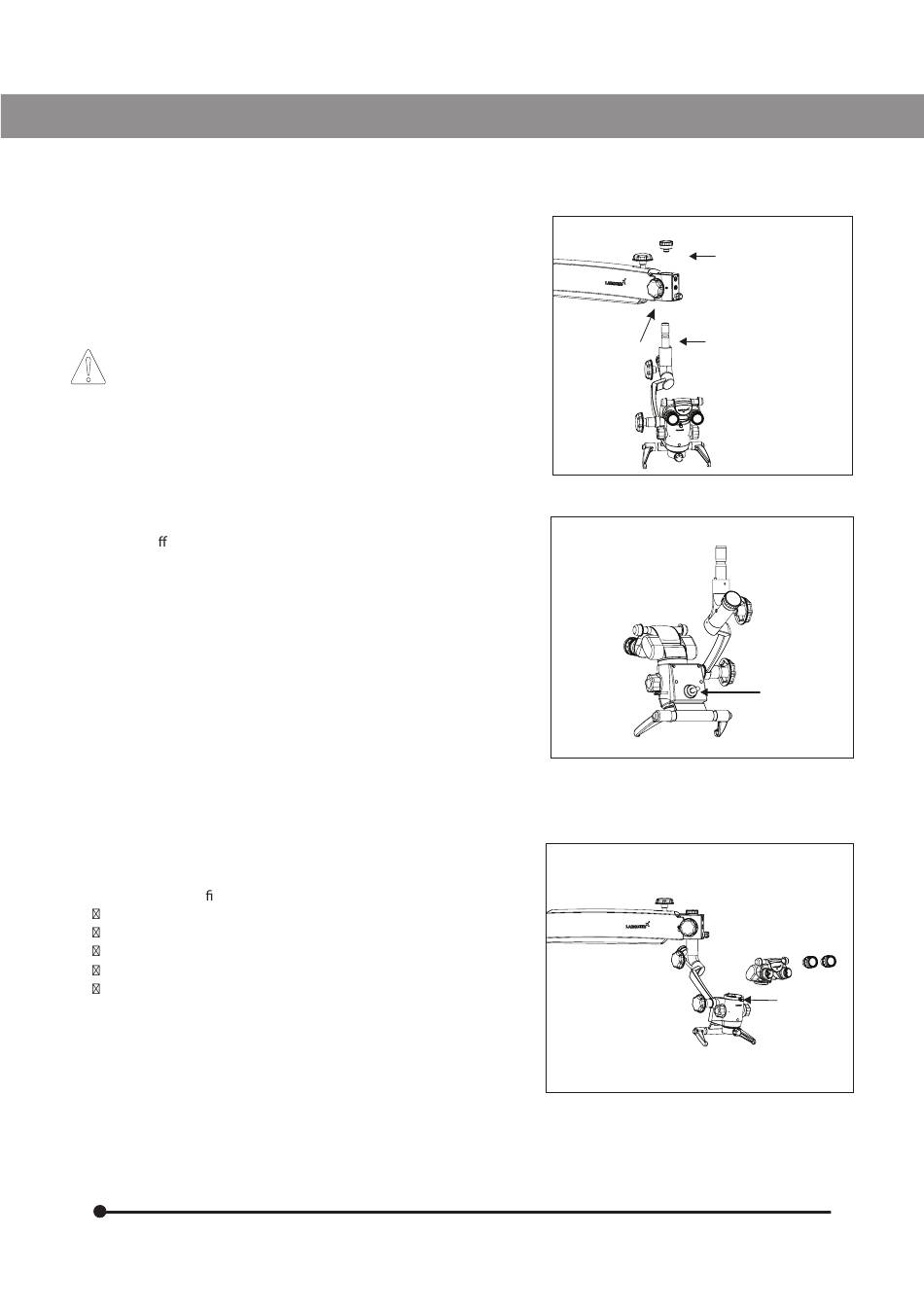

8.4 Retrieve the carrier assembly from the packing and follow
as below refer Fig. 5.
• Install the coupling to the suspension arm by sliding the
guiding shaft (1) to the suspension arm.
• Lock the inclined coupling with the threaded plug (3).
Make sure that safety screw must tight in place at position
(2) to avoid sudden falling of the coupling. Safely screw
tagged within the arm.
8.5 Mounting the light guide
• Switch o the illumination system
• The light guide comes pre-routed through eVALUX illumina
tion box (that houses the LED illumination system) and the
suspension arm.
• Insert the light guide into the receptacle in the microscope
till it clicks into position as shown as A in Fig. 6
• Make sure that the light guide has been routed in such a way
that the carrier system and the surgical microscope are not
obstructed, and that they can be moved in their entire range
of movement without stretching, extreme, kinking or twist-
ing of the light guide.
8.6 Install the binocular head and eyepieces on the magni-
changer. Secure the binocular head with head locking screw
shown as (A) in gure 6a.
6167500-795 PRIMA DNT Trainer
PRIMA DNT Trainer
3
1
2
Fig. 5
A
Fig. 6
A
Fig. 6 a
