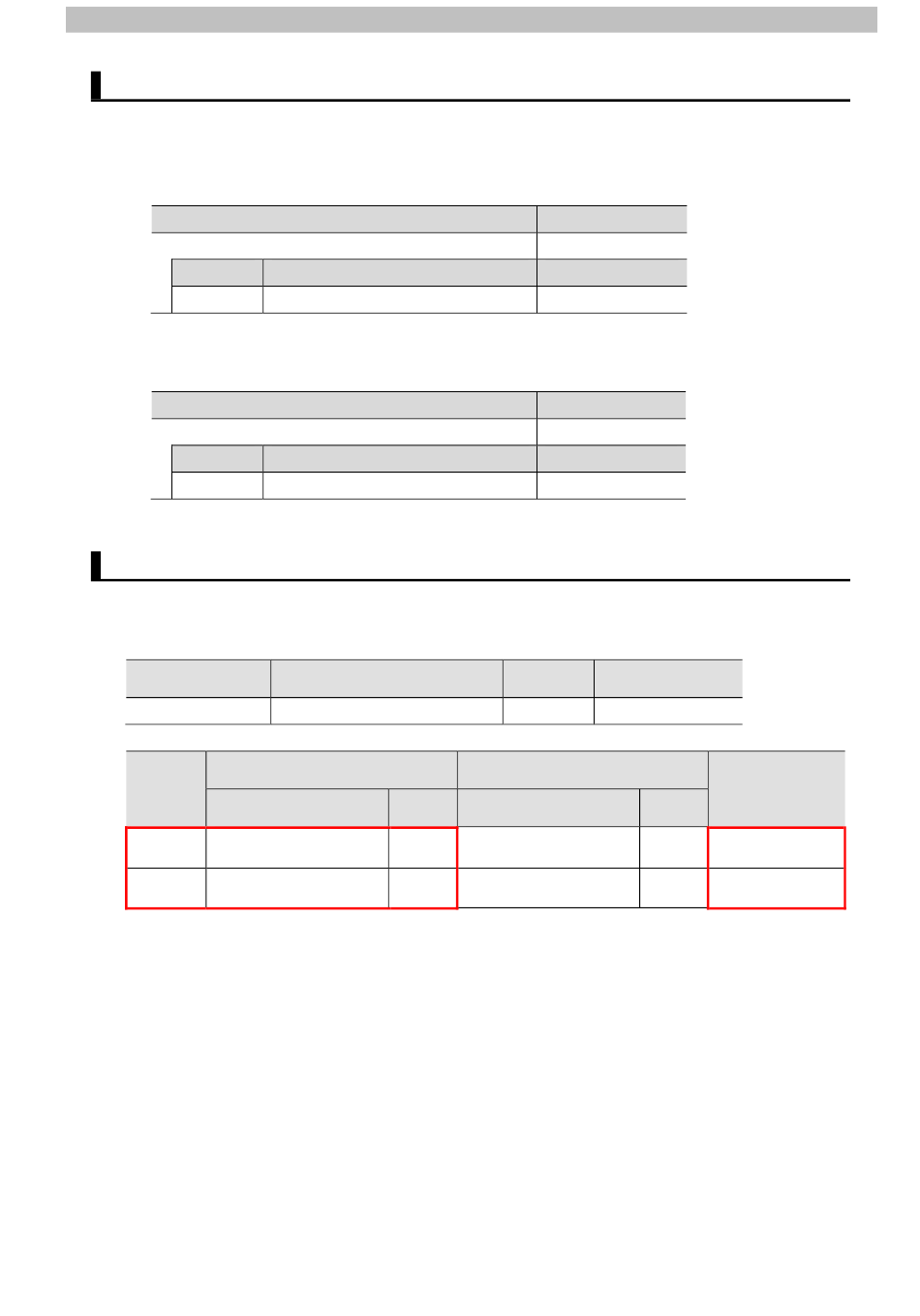

6.3. Tag Sets

The tag sets for tag data links are shown below.
The following data in the input and output tag sets are set.
Input area (Driver to Controller)
EIP002_IN
IN No. Tag name (global variable name)
1 EIP002_IN
Output area (Controller to Driver)
EIP002_OUT
OUT No. Tag name (global variable name)
1 EIP002_OUT

6.4. Connection Settings

The connection settings (i.e. tag data link table) are shown below.
The values boxed in red are taken from the values defined in the Driver's EDS file.
Connection
Name
default_001
Target Device
Input /
Output Target Variable
(Instance number)
Input
Output
Tag set name
Tag set name
Connection I/O Type
Exclusive Owner
(Driver)
Size
(Byte)
100 56
101 40
6．EtherNet/IP Settings
Data size (Byte)
56
Data size (Byte)
56
Data size (Byte)
40
Data size (Byte)
40
RPI (ms) Timeout Value
50.0 RPI x 4
Originator Device
(Controller)
Originator Variable
(Tag set name) (Byte)
EIP002_IN
EIP002_OUT
Connection
Size Type
Point to Point
56
connection
Point to Point
40
connection
