7.3.4. Setting Global Variables
Set global variables to use for tag data links.
1

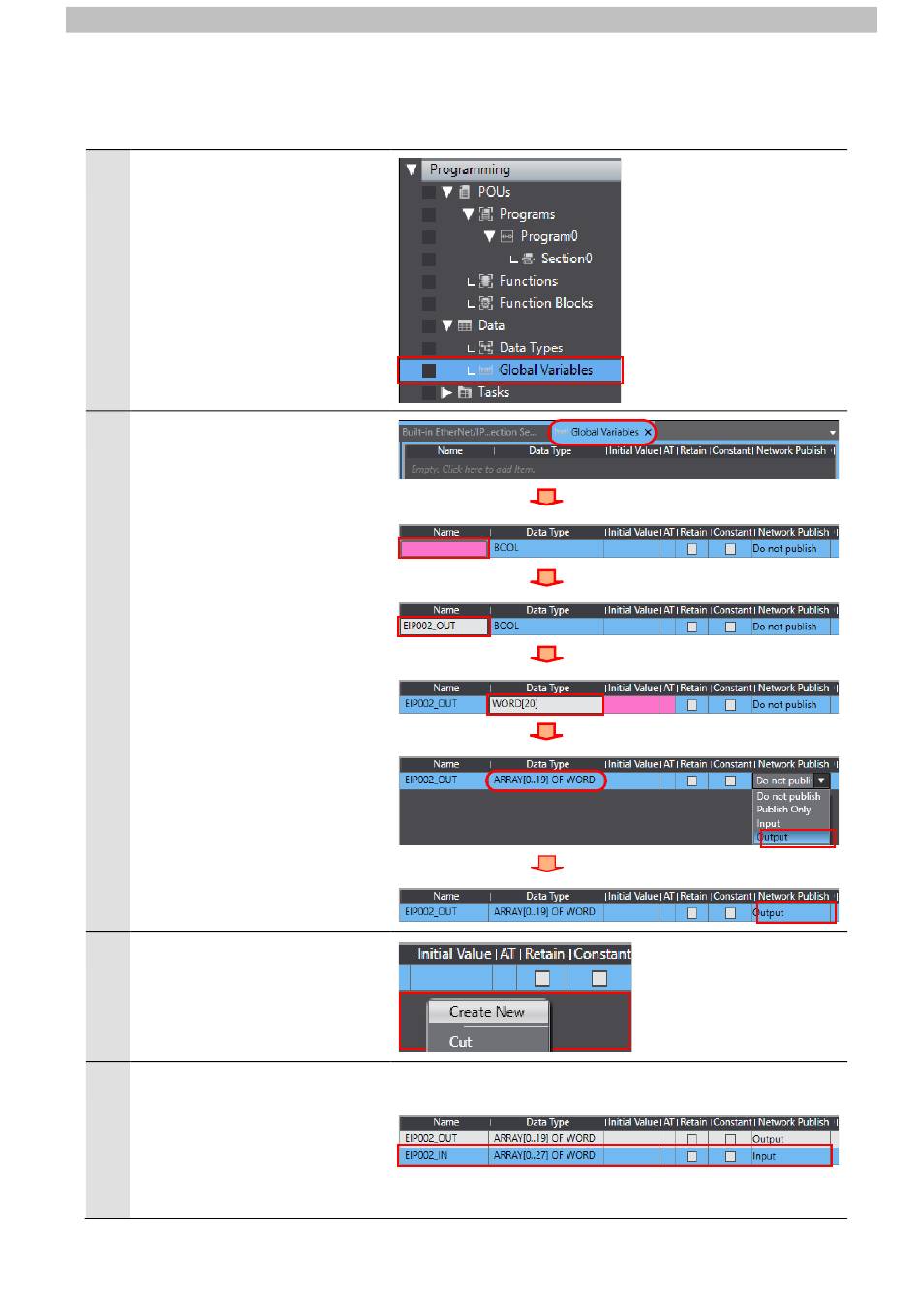

Double-click Global Variables
under Programming – Data in
the Multiview Explorer.
2
The Global Variables Tab Page
is displayed in the Edit Pane.
Click on a space under the
column header Name.
A new variable can be entered.
Enter EIP002_OUT in the Name
Column.
Enter WORD[20] in the Data
Type Column.
After entering, check that the
data type changes to
ARRAY[0..19] OF WORD.
Select Output from the pull-
down list in the Network Publish
Column.
3
Right-click on a space under the
entered variable, and select
Create New from the menu.
4
In the same way as step 2,
enter the following data in a new
entry line.
・Name: EIP002_IN
Data Type: WORD[28]
Network Publish: Input
