8

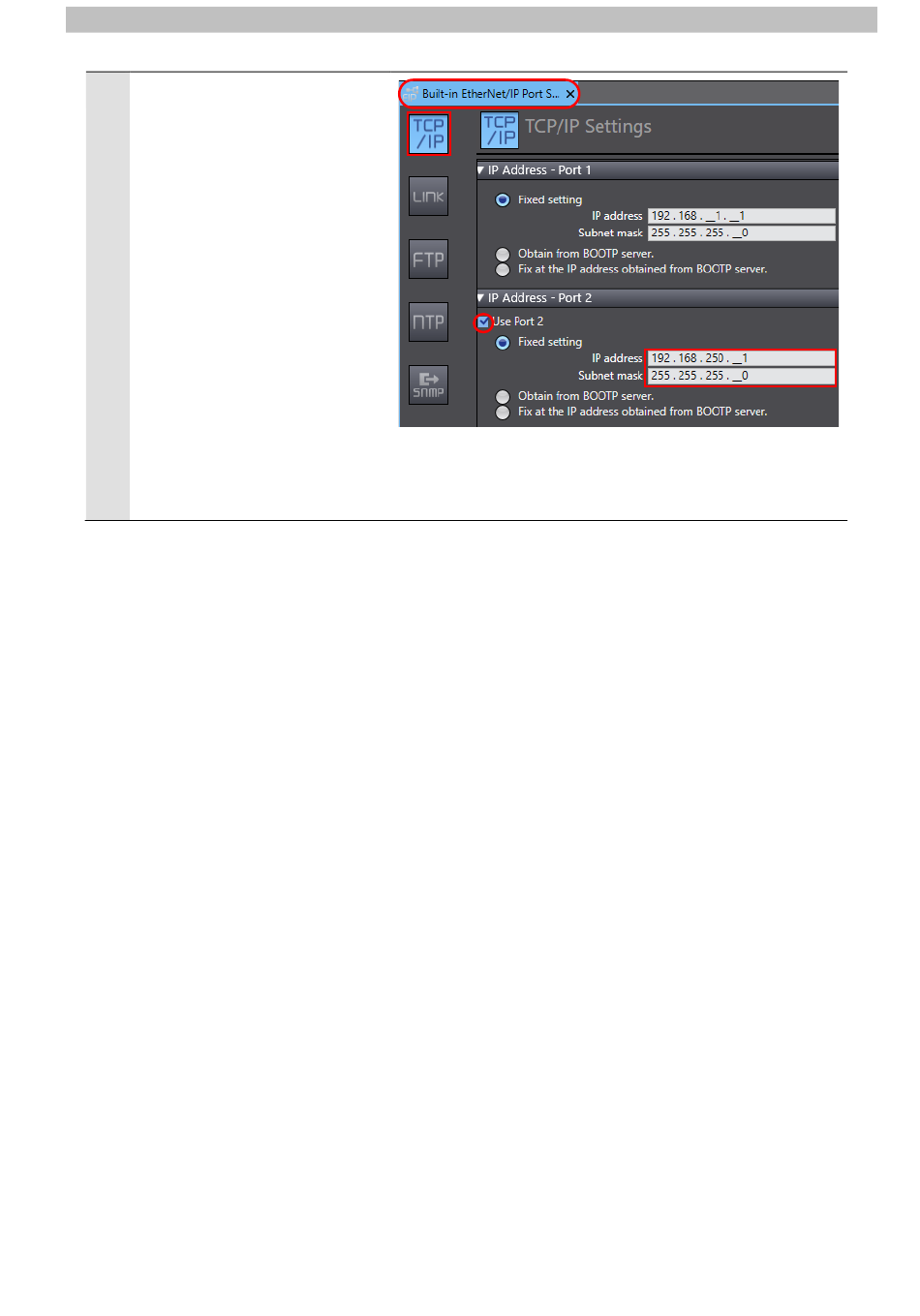

The Built-in EtherNet/IP Port
Settings Tab Page is displayed
in the Edit Pane.
Check that TCP/IP Settings is
displayed. Make the following
settings in IP Address - Port 2.
- Use Port 2: tick in the box
- Fixed setting: select
- IP address: 192.168.250.1
- Subnet mask:
255.255.255.0
*If the first 3 octets (network
part) of the IP address above
are the same as those
displayed in IP Address - Port
1, change the values displayed
in IP Address - Port 1 to avoid
the duplication.
7．EtherNet/IP Connection Procedure
