Replacing Conveyor Motor
Brushes
The Model W1678 is equipped with a universal motor that
uses two carbon motor brushes to transmit electrical
current inside the motor. These brushes are considered to
be regular "wear items" or "consumables" that will need to
be replaced during the life of the motor. The frequency
of required replacement is often related to how much the
motor is used and how hard it is pushed.
Replace both motor brushes at the same time when the
motor no longer reaches full power, or when the brushes
measure less than ⁄ " in length (new brushes are
1
4
long).
If your machine is used frequently, we recommend
keeping an extra set of these replacement brushes
on-hand to avoid any downtime.
Items Needed
Phillips Screwdriver #2 .........................................1
Flat Head Screwdriver
1
Motor Brushes (X1678039-1)..............................1 Set
To replace conveyor motor brushes, do these steps:
1. DISCONNECT MACHINE FROM POWER!
2. Raise conveyor table to highest position.
3. Remove motor brush cover, then remove spring and
carbon brush (see Figure 56).
4. Carefully insert new motor brush and spring (see
Figure 56), then install brush cover.
5. Repeat Steps 3–4 for other side of motor.
⁄ " ....................................1
4
Model W1678 (For Machines Mfd. Since 02/24)
⁄ "
5
8
Motor Brush
Cover
(1 of 2)
Qty

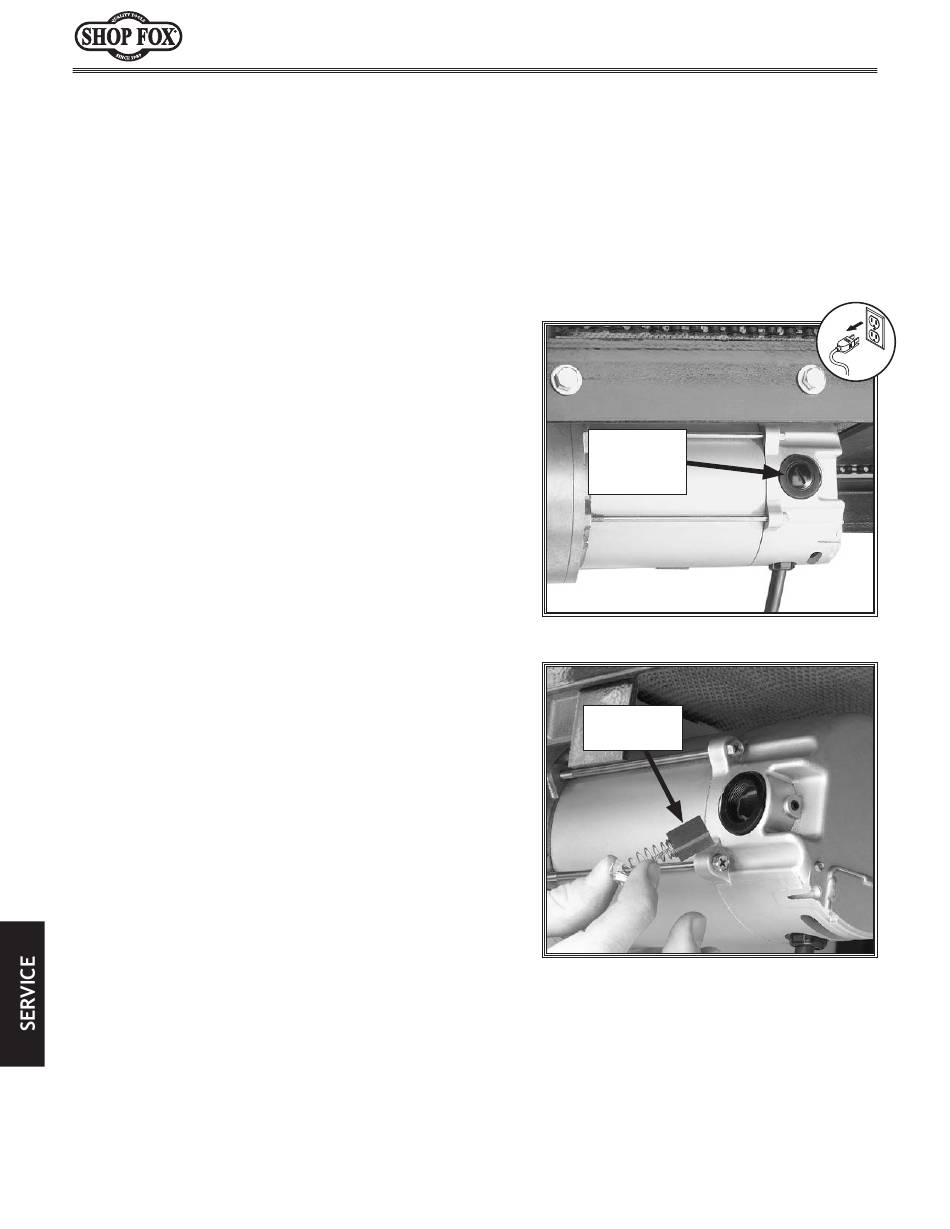

Figure 55. Location of motor brush cover.
Motor Brush
(1 of 2)
Figure 56. Conveyor motor brush.
-48-
