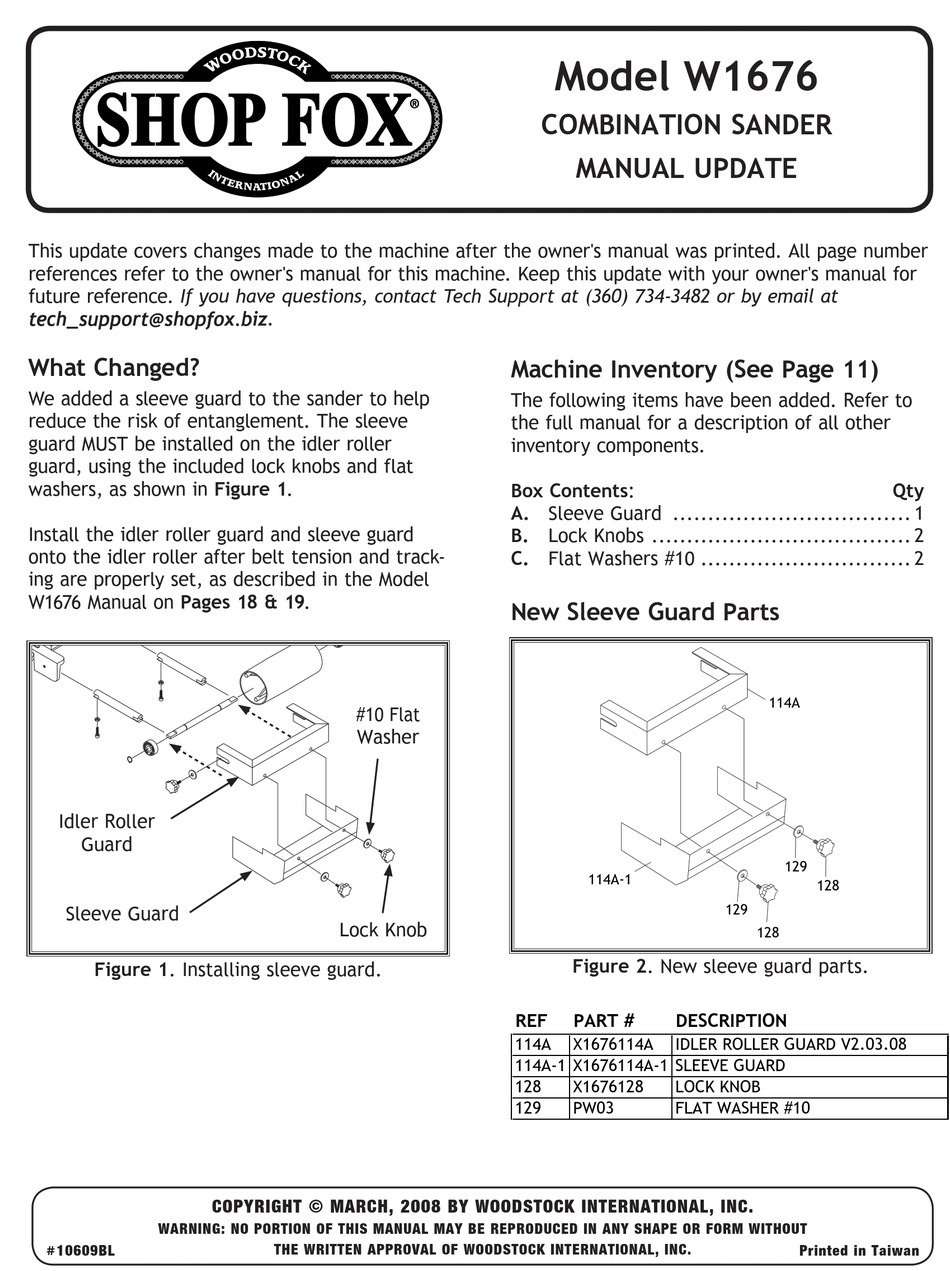

This update covers changes made to the machine after the owner's manual was printed. All page number
references refer to the owner's manual for this machine. Keep this update with your owner's manual for
future reference. If you have questions, contact Tech Support at (360) 734-3482 or by email at
tech_support@shopfox.biz.
What Changed?
We added a sleeve guard to the sander to help
reduce the risk of entanglement. The sleeve
guard MUST be installed on the idler roller
guard, using the included lock knobs and flat
washers, as shown in Figure 1.
Install the idler roller guard and sleeve guard
onto the idler roller after belt tension and track-
ing are properly set, as described in the Model
W1676 Manual on Pages 18 & 19.
Idler Roller
Guard
Sleeve Guard
Figure 1. Installing sleeve guard.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#10609BL
#10 Flat
Washer
Lock Knob
COPYRIGHT © MARCH, 2008 BY WOODSTOCK INTERNATIONAL, INC.
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

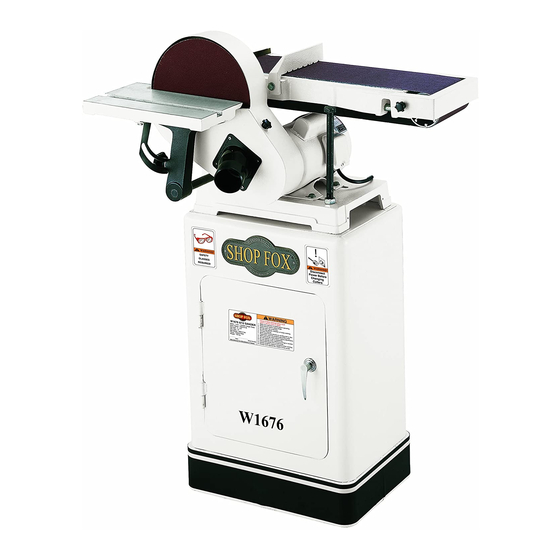

Model W1676
COMBINATION SANDER
MANUAL UPDATE
Machine Inventory (See Page 11)
The following items have been added. Refer to
the full manual for a description of all other
inventory components.
Box Contents:
A. Sleeve Guard .................................. 1
B. Lock Knobs ..................................... 2
C. Flat Washers #10 .............................. 2
New Sleeve Guard Parts
������
Figure 2. New sleeve guard parts.
REF
PART�#
DESCRIPTION
114A
X1676114A
IDLER�ROLLER�GUARD�V2.03.08
114A-1 X1676114A-1 SLEEVE�GUARD
128
X1676128
LOCK�KNOB
129
PW03
FLAT�WASHER�#10
Qty
����
���
���
���
���
Printed in Taiwan
