- Page 1 7500 Purge System User Manual Bebco EPS® 7500 Series Type Z and Ex pzc Purge and Pressurization System...
- Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...
-
Page 3: Table Of Contents
2.3.4 Dimensions: Control Units ..............16 2.3.5 Panel Cut-Out Dimensions ..............16 2.3.6 Pressure Kit .................... 17 2.3.7 Torque Requirements: Control Unit ............17 2.3.8 Dimensions: 7500-MTD-* Mount Systems ..........18 2.3.9 External/Panel Mounting Illustration ............22 2.4. EPV-7500 Vents ..................23 2.4.1 Technical Data: EPV-7500 Vents ............ - Page 4 2.6.4 Torque Requirements: 5500 Manifolds ........... 37 2.6.5 Technical Data: 7500 Manifolds (Automatic) .......... 38 2.6.6 Components: 7500 Manifolds ..............39 2.6.8 Dimensions: 7500 Manifolds ..............39 2.6.7 Torque Requirements: 7500 Manifolds ........... 39 3. Installation and Operation ..............40 3.1.
- Page 5 7500 S T erieS anual able of conTenTS 4.7. Bypass ......................59 4.8. Units......................60 4.9. Change Password ..................61 4.10. User Parameter Setting Sheet ..............62 5. Product Identification ................63 5.1. Specific Conditions of Use ................. 63 5.2. Applied Standards ..................63 5.3.
-
Page 6: Introduction
Group II Zones 2 or 22, Class I or II, Division 2 when installing, commissioning, and using the 7500 control unit and its components. This important information will help you use the 7500 purge and pressurization system safely and correctly. -
Page 7: Target Group, Personnel
The operator and/or installer must also ensure that: the system is installed in accordance with the Specific Conditions of Use that the 7500 system is used as a purge controller and not protected by purging and pressurization all electrical, mechanical, and pneumatic connections have been made in accordance with this manual and any other applicable standards and laws. - Page 8 7500 S i erieS anual nTroducTion Danger! This symbol warns you of an immediate and present danger. If you do not observe this warning message, there is a risk of personal injury and even death. WarnIng! This symbol warns you of a potential fault or hazard.
-
Page 9: Pertinent Laws, Standards, Directives, And Further Documentation
A Declaration of Conformity is included with these instructions and can be requested from the manufacturer or obtained online at www.pepperl-fuchs.com. Additional documentation can also be provided for individual components. The product manufacturer, the Pepperl+Fuchs Group, 68307 Mannheim, has a certified quality assurance system that conforms to ISO 9001. ISO9001... -
Page 10: Product Description

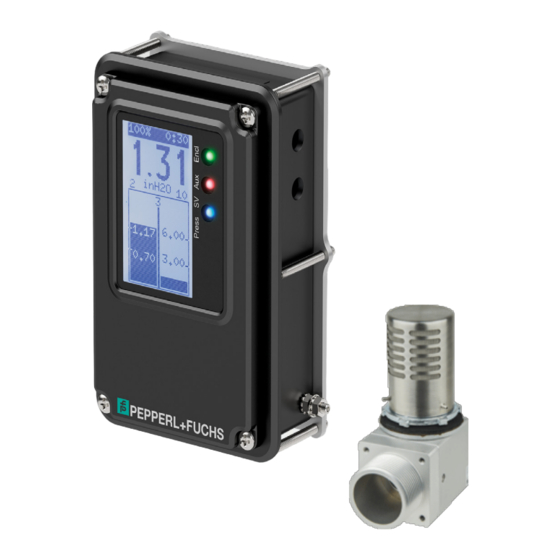

2.3. Control Unit The 7500 control unit is a control device for Type Z & Ex pz purge systems and is suitable for purge time and pressure monitoring in Class I or II, Division 2, Zone 2 or 22. -
Page 11: Technical Data: Control Unit
Mounting bracket, gasket, and screws for enclosure mounting Manual WarnIng! The conduit hub extension, 7500-HUB-01, can only be mounted once to the 7500 control unit. If removed, it cannot be reinstalled. A new conduit unit must be purchased. 2.3.1 Technical Data: Control Unit... - Page 12 7500 S P erieS anual roducT eScriPTion Output Output I Connection K1 terminals, 1 x NO Output type enclosure power contacts Contact loading 5 A at 250 V AC, 5 A at 30 V DC, relays must be externally fused...
- Page 13 Low-pressure port (-): 1/8 in NPT Degree of protection Type 4X IP66 (Device is protected against dust and strong jets of water.) No ratings for mounting to enclosure for 7500-MTD-BX... Pollution degree Device can be installed in environments up to pollution degree 4. Material lens: Makrolon®...
-
Page 14: Terminal Connection Data
7500 S P erieS anual roducT eScriPTion CCC approval Ex ec mc nC [pzc Gc] IIC T6...T4 Gc Ex mc tc [pzc Dc] IIIC T60 °C...T80 °C Dc Certificate No.: 2020322304002487 general Information Supplementary information Type Examination Certificate, Declaration of Conformity, and instructions have to be observed where applicable. - Page 15 7500 S P erieS anual roducT eScriPTion Electrical Connections Electrical Connections Terminal Block N(-) Alarm N(-) Encl L (+) Protective Valve Ground Terminal Block Connections N(-) Alarm Encl L(+) N(-) WarnIng! When connecting line-to-line power and K1 and K2 and used to switch the power, the alarm function is not available.
-
Page 16: Dimensions: Control Units
7500 S P erieS anual roducT eScriPTion 2.3.4 Dimensions: Control Units M4 x .7 R4.5 1/2-14 17.5 22 M12 x 1.5 *Dimensions shown in millimeters. High-pressure port (+) 1/8-27 NPT Low-pressure port (-) 1/8-27 NPT Protective earth stud, torque 1.35 Nm (12 in-lb) 2.3.5... -
Page 17: Pressure Kit
7500 S P erieS anual roducT eScriPTion 2.3.6 Pressure Kit The included pressure kit contains the following components: Bulkhead fitting O-ring Tubing Tubing inserts Straight connector Sintered element for bulkhead fitting Panel hole size: 14.7 mm (37/64 inch) 2.3.7... -
Page 18: Dimensions: 7500-Mtd-* Mount Systems
7500 S P erieS anual roducT eScriPTion 2.3.8 Dimensions: 7500-MTD-* Mount Systems 7500-MTD-BXrW-01 rectangular External Mount with Control Unit and Manifold... - Page 19 7500 S P erieS anual roducT eScriPTion 7500-MTD-BMrW-01 rectangular Panel Mount with Control Unit and Manifold...
- Page 20 7500 S P erieS anual roducT eScriPTion 7500-MTD-BXSW-01 Square External Mount with Control Unit and Manifold...
- Page 21 7500 S P erieS anual roducT eScriPTion 7500-MTD-PMSW-01 Square Panel Mount with Control Unit and Manifold...
-
Page 22: External/Panel Mounting Illustration
7500 S P erieS anual roducT eScriPTion 2.3.9 External/Panel Mounting Illustration High-pressure port (+): For monitoring the enclosure pressure. This port must always connect the control unit to the monitored enclosure protected by pressurization Low-pressure port (-): The atmospheric reference. This port shall always be connected such that the air pressure present on this port is the atmospheric pressure surrounding the enclosure being protected by pressurization. -
Page 23: Epv-7500 Vents
2.4. EPV-7500 Vents EPV-7500 vents work with the 7500 control unit and manifold to provide a functional, certifiable purge and pressurization system for enclosures. As required by all pressurized enclosure systems, the EPV-7500 vent functions as a pressure relief device and allows the purge gas to exit the enclosure, while still providing a seal when the enclosure is pressurized and operating. - Page 24 15 scfh (424 l/hr) at 0.25 in wc (0.63 mbar) approx. 25 scfh (707 l/hr) at 0.75 in wc (1.9 mbar) Breaking pressure EPV-7500-...-01: 0.8 in wc (2.0 mbar) EPV-7500-...-02: 1.4 in wc (3.5 mbar) EPV-7500-...-03: 1.5 in wc (3.8 mbar) EPV-7500-...-04: 1.4 in wc (3.5 mbar)
-
Page 25: Flow Rate Curves
‘-01’ version. The EPV-7500-…03 features a flow rate that is less than both the ‘-01’ and ‘-02’ versions, and provides very low leakage, which is recommended for very small... - Page 26 7500 S P erieS anual roducT eScriPTion EPV-7500-...-01 Vent Flow vs. Enclosure Pressure /min Inches of water l/min mbar 1.28 3.19 1.44 3.59 1.64 4.09 1.80 4.48 2.10 5.23 2.30 5.73 2.53 6.30 2.95 7.35 3.50 8.71 4.15 10.33 EPV-7500-...-02 Vent Flow vs.
- Page 27 7500 S P erieS anual roducT eScriPTion EPV-7500-...-04 Vent Flow vs. Enclosure Pressure /min Inches of water l/min mbar 2.50 6.23 2.70 6.85 3.10 7.72 3.40 8.47 3.80 9.46 4.20 10.46 4.60 11.45 5.00 12.45 5.50 13.69 6.10 15.18 6.80...
-
Page 28: Dimensions: Epv-7500 Vents
Dimensions: EPV-7500 Vents EPV-7500-...-01/02 (flapper style) EPV-7500-...-03 (plunger style) EPV-7500-...-04 2.4.4 Torque requirements: EPV-7500 Vents Hardware Torque Sealing washer and nut 0.25–1 turns past finger tight (Do not overtighten!) Set screws Secure vent cap by evenly threading in set screws. (Do not overtighten!) -
Page 29: 7500-Man-Mv-01 Manual Manifold
2.5. 7500-Man-MV-01 Manual Manifold The 7500-MAN-MV-01 combines in one device a ball valve for purging and a needle valve for pressurizing an enclosure. The ball valve has a handle for easy actuation. To provide security and prevent tampering, the needle valve requires a slot-head screwdriver to set the enclosure pressure. -
Page 30: Dimensions: 7500-Man-Mv-01
Mechanical Specifications Degree of protection Type 4X Material Gasket material: Bisco® HT-800 medium cellular Mass Approx. 1.8 kg (4 lb) Dimensions See dimensions in Section 2.5.2: Dimensions 7500-MAN-MV-01 2.5.2 Dimensions: 7500-Man-MV-01 18.25 1/2-14 NPT 32.5 Needle valve 5.5 ø thru-hole 41.5... -
Page 31: Automatic Manifolds
The 7500- MAN* carries ATEX/IECEx and CCC certifications. The 5500 or 7500 manifolds can be used with either the 5500 or the 7500 control unit. If the user implements a 5500-MAN with the 7500 control unit, they must pay special attention to the fuse size requirements of that solenoid and include an in-line fuse appropriately rated for the hazardous area. -
Page 32: Components: 5500 Manifolds
Mounting hardware: screws, nuts, and sealing washers Note When ordering, note the supply voltage of the 7500 control unit. Order the manifold valves accordingly. Voltages are 24 V DC, 120 V AC, and 220 V AC. 5500 MAN-CDUL manifold valves are only available with 60 Hz operation. -
Page 33: Technical Data: 5500 Manifolds (Automatic)
2.6.1 Technical Data: 5500 Manifolds Property Value General specifications Operation mode For automatic purging Series 5500 and 7500 Hazardous environment gas or dust Supply Rated power equipment 5500-MAN-CDUL 24 V DC 5.6 W 120 V DC 7.2 VA, 60 Hz 230 V DC 7.2 VA, 60 Hz... - Page 34 7500 S P erieS anual roducT eScriPTion Purge flow rate (solenoid valves) Cv (flow coefficient) = 1.4 Pressurization flow (needle valve) Cv (flow coefficient) = 0.24 Mechanical Specifications Degree of protection (connector) Type 7 and 9 Mass 1250 g (2.8 lb) Dimensions See dimension drawings.
- Page 35 7500 S P erieS anual roducT eScriPTion IECEx approval II 2 G Ex mb IIC T5 Gb II 2 D Ex mb tb IIIC T95 °C Db IP65 Protection by encapsulation WarnIng! Incoming power must be fused. If power is line-to-line, both must be fused.
-
Page 36: Dimensions: 5500 Manifolds
7500 S P erieS anual roducT eScriPTion 2.6.3 Dimensions: 5500 Manifolds 5500-Man-CDUL 70.7 12.7 41.4 82.3 ø6.5 (4x) 1/2"-14 NPT 73.2 50.3 *Dimensions shown in millimeters. 5500-Man-EX01 24.1 14.6 3/8" NPT (2x) 12.7 22.2 38.1 14.8 53.3 22.2 1/4-20UNC... -
Page 37: Torque Requirements: 5500 Manifolds
7500 S P erieS anual roducT eScriPTion 5500-Man-CD01 24.1 14.6 3/8" NPT (2x) 56.6 12.7 22.2 38.1 14.8 53.3 22.2 1/4-20UNC 9.5 (4x) 1/4-20UNC 0.375 (4x) *Dimensions shown in millimeters. 2.6.4 Torque requirements: 5500 Manifolds Hardware Torque Screws, nuts, and sealing washer 8.5 Nm (75.2 in-lbs) -
Page 38: Technical Data: 7500 Manifolds (Automatic)
7500 S P erieS anual roducT eScriPTion 2.6.5 Technical Data: 7500 Manifolds Property Value General specifications Operation mode For automatic purging Series 7500 Hazardous environment gas or dust Supply Rated voltage 230 VAC ± 10% 115 VAC ± 10% 24 VDC ±... -
Page 39: Components: 7500 Manifolds
2.6.6 Components: 7500 Manifolds Solenoid coil for purging Slot-head screwdriver adjustment for pressurization (included) 2.6.8 Dimensions: 7500 Manifolds 2.6.7 Torque requirements: 7500 Manifolds Hardware Torque Plastic cable gland (solenoid) Hand tight Fitting (G 1/2 BSPP) 40 Nm (350 in-lbs) -
Page 40: Installation And Operation
The 7500 system is designed to allow the enclosure to be located in Zone 2 or 22, Class I or II, Division 2 hazardous locations to operate safely by first making them safe internally. -
Page 41: For Dust Atmospheres
Refer to this manual and standards for explanation of requirements. Apply power to the 7500 series system. Program the 7500 system using the user-interface display on the front of the 7500 control unit. See Chapter 4 for instructions. Note This step is for initial setup of the 7500 system. -
Page 42: Operating The System
La substitution de composants peut rendre ce materiel inacceptable pour les de utilisation dans des Zones (Classifiées) dangereuses. Note At ambient temperatures below -20 °C, the display of the 7500 control unit may not be visible. However, the unit and LED indicators will still function properly. -
Page 43: Programming
4. Programming 4.1. Touchscreen Display Use the touchscreen on the front of the 7500 control unit to program the system: Purging time: % complete / Time left Purging time: % complete / Time left 0:30 Enclosure Pressure Enclosure Pressure X.XX... -
Page 44: Led Indication
Up to 5 programs to select PURGE / TIME Time required for purging 00:30 For model 7500-01-* ENCLOSUR / PRESS P1 Enclosure pressure P1 P1 for gas 0.12 inch w.c. (0.30 mbar) P1 for dust 0.52 inch w.c. (1.29 mbar) -
Page 45: Menu Structure
7500 S P erieS anual rograMMing PROGRAM / K2 Various parameters to activate K2 K1¹ contacts SHUT-OFF / DELAY Delay in turning K1 off when P<P1 0 sec UNITS / M I M for metric units I for imperial units... -
Page 46: Purge Programming Setting
7500 S P erieS anual rograMMing 4.4. Purge Programming Setting There are 5 program selections for system operation. Programs 1 through 4 are for hazardous gas environments and require purging. The fifth program is for hazardous dust environments that require cleaning the enclosure, then pressurizing. -
Page 47: Program 1
7500 S P erieS anual rograMMing 4.4.1 Program 1 Program 1 is used in hazardous gas atmospheres. Sequence of Events for Program 1 HYST > 0 Purge valve P < P2 Purge Start P > P3 K1 ON valve P <... -
Page 48: Program 2
7500 S P erieS anual rograMMing 4.4.2 Program 2 Program 2 is used in hazardous gas atmospheres. Sequence of Events for Program 2 HYST > 0 Purge valve P < P2 P < P4 Purge Start P > P3... -
Page 49: Program 3
7500 S P erieS anual rograMMing 4.4.3 Program 3 Program 3 is used in hazardous gas atmospheres. Sequence of Events for Program 3 HYST > 0 Purge valve P < P2 P < P4 Purge Start P > P3... -
Page 50: Program 4
7500 S P erieS anual rograMMing 4.4.4 Program 4 Program 4 is used in hazardous gas atmospheres. Sequence of Events for Program 4 Purge valve P < P3 Clean P > P1 K1 ON K1 ON enclosure P < P1 P >... -
Page 51: Program 5
7500 S P erieS anual rograMMing 4.4.5 Program 5 Program 5 is used in combustible dust atmospheres. Sequence of Events for Program 5 Purge valve P < P3 Clean P > P1 K1 ON enclosure K1 ON P < P1 P >... - Page 52 7500 S P erieS anual rograMMing Program Purging P<P1 P1<P<P2 P2<P<P3 P3<P<P4 P>P4 Clean activates above P1 After purging P<P1 P1<P<P2 P2<P<P3 P3<P<P4 P>P4 Note Shutdown timer and bypass affect the status of K1 and SV. See the explanation for each to determine effects on K1 and SV.
-
Page 53: Purging Timer
7500 S P erieS anual rograMMing 4.5. Purging Timer 4.5.1 Determining Purge Time Programming the Purging Timer (MIN:SEC) Calculate the purging time using the formulas and examples in Chapter 4. Enter the purging time using the UP and DOWN buttons and SET. - Page 54 10 x 282 liters / 320 l/min = 8.9 min The 7500 control unit has a purge timer and is user-selectable through the menu. The purge timer is activated when the enclosure pressure goes above P3. The pressure must always be above P3 for the timer to continue until it counts down to 000:00.
-
Page 55: Pressure Settings
7500 S P erieS anual rograMMing 4.5.2 Pressure Settings 4.5.2.1 Minimum Enclosure Pressure “P1” When enclosure pressure drops below P1 during operation mode, either the K1 enclosure contact must be interrupted or the K2 alarm contact must be activated. - Page 56 7500 S P erieS anual rograMMing Leakage Compensation Hysteresis “HYST” In operation mode, there may be excess leakage of pressure from the enclosure due to a faulty seal or gasket. There could also be enclosure pressure loss due to a drop in regulated line pressure.
-
Page 57: Programming K2
7500 S P erieS anual rograMMing 4.5.3 Programming K2 The K2 contact output can be programmed for various settings that are chosen by the user. For Type Z and Ex pz systems, power to the pressurized enclosure can remain on if pressure goes below the minimum allowed pressure, but an audible and/or visual alarm must be generated to notify the operator of a problem. - Page 58 7500 S P erieS anual rograMMing...
-
Page 59: Shutdown Timer For K1
7500 S P erieS anual rograMMing 4.6. Shutdown Timer for K1 The shutdown timer is used in the operation mode and allows K1 to remain on for the duration of this setting when enclosure pressure drops below the minimum setting of P1. -
Page 60: Units
7500 S P erieS anual rograMMing DANgEr! Bypass should only be implemented when the area surrounding the pressurized enclosure is known to be non-hazardous. 4.8. Units The units can be changed from ‘M’ metric to ‘I’ imperial. This affects the pressure readings. “M” reads in... -
Page 61: Change Password
7500 S P erieS anual rograMMing 4.9. Change Password To change the existing password, use the UP and DOWN buttons for each digit. Enter 4 digits. To cancel without saving a new password, press RESET. The existing password will still be valid. -
Page 62: User Parameter Setting Sheet
7500 S P erieS anual rograMMing 4.10. User Parameter Setting Sheet Display Description User Settings PASSWORD / SET Password PURGE / PROGRAM Program 1-5 PURGE / TIME Time required for purging ENCLOSUR / PRESS P1 Shutdown pressure P1 ENCLOSUR / PRESS P2... -
Page 63: Product Identification
7500 S P erieS anual roducT denTificaTion 5. Product Identification 5.1. Specific Conditions of Use The main control unit and optional accessories are the only parts that have been evaluated for the certifications of the system. For dust environments, the lens of the Control Unit may pose an electrostatic discharge hazard. -
Page 64: Type Codes
Any other 2 character alphanumeric combination to identify other customer options within the certification aspects of the system, which may include an alternate pressure range. If an alternate configuration is desired, please contact Pepperl+Fuchs. 7500 series 7500-MTD-* Panel/External Mount System P M S W Series - option standard housing type... - Page 65 Body and cap: 6061-T6 aluminum Body: 6061-T6 Aluminum, Cap: 316L stainless steel Series of vent 7500 7500 Series * The only possible combination with these options is “EPV-7500-AA-04” 7500-MAN-MV-01 Manifold – M A Default configuration Automatic or manual Manually actuated...
-
Page 66: Markings (Labelling)
Available with 230 V AC option Voltage 230 V AC supply required 115 V AC supply required 24 V DC supply required Housing BK—Standard Manifold 7500 Series Purge System Device type 7500 Series Purge System 5.4. Markings (Labelling) Control Unit... - Page 67 7500 S P erieS anual roducT denTificaTion Control Unit and Manual Manifold, 7500-MTD-... EPV-7500 Vent...
-
Page 68: Product Lifetime Care
6. Product Lifetime Care 6.1. Maintenance and Repair Do not remove the window from the 7500-01-... control unit. If the window is damaged or removed, the control unit cannot be repaired. A new unit is required. Do not remove the accessory conduit hub extension, 7500-HUB-AA-01, from the 7500-01-... - Page 69 6.2. Dismantling and Decommissioning Abide by all local and any other code requirements for disposing of electronic equipment. When disposing of any component of the 7500 system, “VOID” must be marked across all certification labels. 6.3. Troubleshooting Problem Possible Cause...
