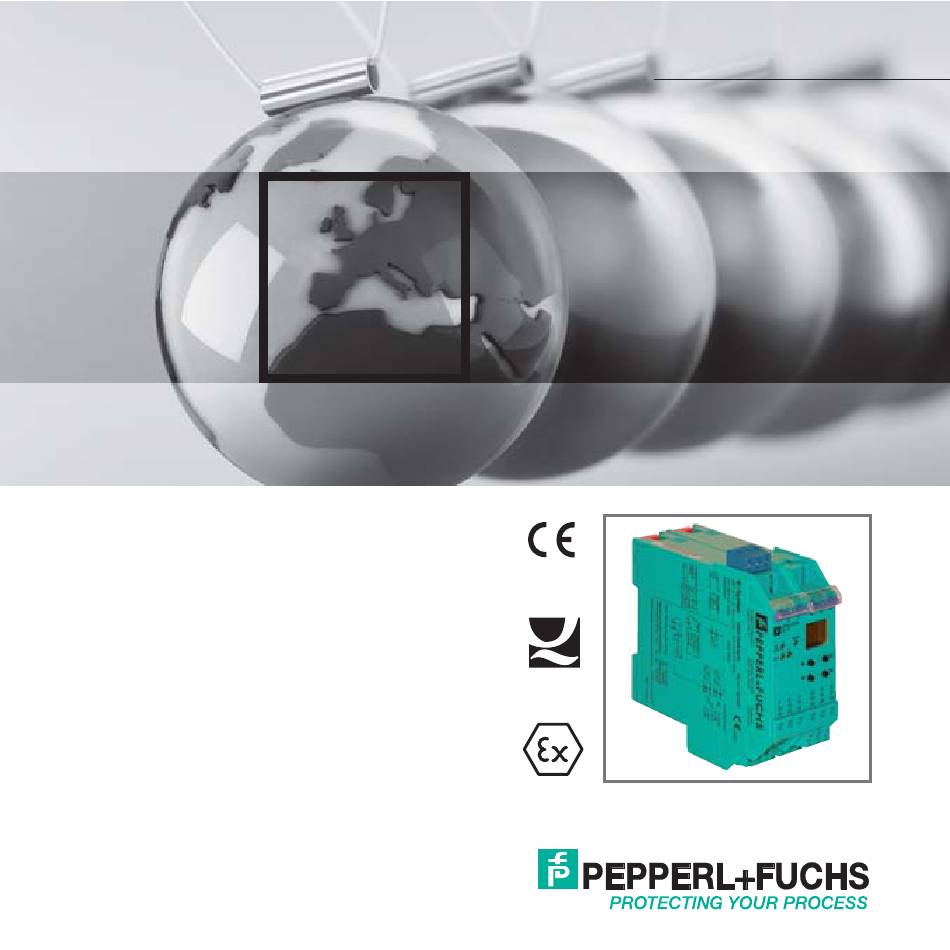

- Page 1 PROCESS AUTOMATION MANUAL OVERSPEED/UNDERSPEED MONITOR KF**-DWB-(EX)1.D ISO9001...
- Page 2 With regard to the supply of products, the current issue of the following document is applicable: The general terms of delivery for products and services of the electrical industry, as published by the central association of the "Elektrotechnik und Elektroindustrie (ZVEI) e.V.", including the supplementary clause "Extended reservation of title".
-
Page 3: Table Of Contents
Overspeed/Underspeed Monitor KF**-DWB-(Ex)1.D Table of Contents Symbols Used ..........3 Overview . - Page 4 Overspeed/Underspeed Monitor KF**-DWB-(Ex)1.D Table of Contents Output ............. 21 7.5.1 Switching behavior of the relay .
-
Page 5: Symbols Used
Overview Range of application The K-System devices from Pepperl+Fuchs are used for transmitting signals between field devices and a process control system/control system. The devices marked with "Ex" in the type designation are suitable for the connection of field devices used in potentially explosive atmospheres. -
Page 6: Model Variants

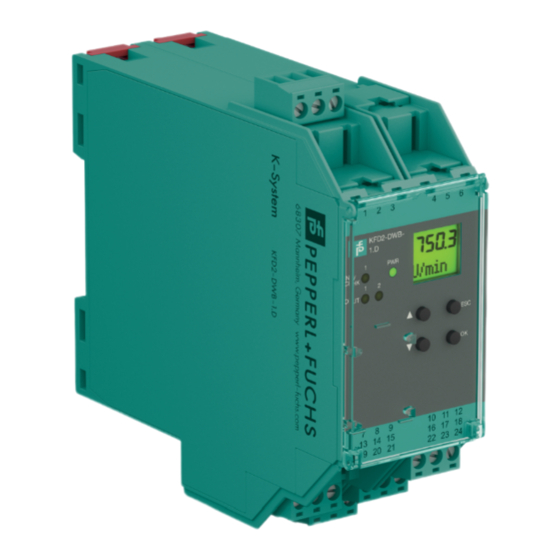

Overspeed/Underspeed Monitor KF**-DWB-(Ex)1.D Overview Typical applications for the Overspeed/Underspeed Monitors KF**-DWB-(Ex)1.D of the K-System (abbreviated DWB) are limit-value monitoring during flow and rotational-speed measurements (Max alarm and Min alarm). The Overspeed/Underspeed Monitors are parameterized using an integrated control panel. More information (for example, certificates and data sheets for the DWB and the operating manual for the K-System) can be found on our webpage www.pepperl-fuchs.com (enter *DWB* in the product... -
Page 7: Inputs And Outputs
Overspeed/Underspeed Monitor KF**-DWB-(Ex)1.D Overview Inputs and outputs Field device input A K-System DWB from Pepperl+Fuchs has • an input for connecting a field device. − With KF**-DWB-Ex1.D, this input is intrinsically safe (blue terminal block). You may connect either a NAMUR sensor or a mechanical contact. -
Page 8: Safety Notes
If faults cannot be eliminated, the devices must be taken out of operation and protected from being placed in service again inadvertently. Devices must only be repaired directly by the manufacturer Pepperl+Fuchs. Tampering with or making changes to the devices is dangerous and therefore not permitted. They render the warranty void. -
Page 9: Explosion Protection
IP20 and must therefore be protected from undesirable ambient conditions (water, small foreign objects). Attention The devices of the K-system from Pepperl+Fuchs and thus also the Overspeed/Underspeed Monitor KF**-DWB-(Ex)1.D can be mounted on a 35 mm standard rail corresponding to DIN EN 60175. The devices must be snapped onto the rail vertically, and never slanted or tipped to the side. -
Page 10: Connection
Overspeed/Underspeed Monitor KF**-DWB-(Ex)1.D Installation and Connection Dimensions of KF**-DWB-(Ex)1.D in mm Connection The removable terminals of the KF-series considerably simplify the connection and the switch cabinet assembly. They make it possible to replace devices quickly and without error if a customer service becomes necessary. -
Page 11: Connection Input (Field Circuit)
Overspeed/Underspeed Monitor KF**-DWB-(Ex)1.D Installation and Connection 5.2.1 Connection input (field circuit) The intrinsically safe field circuit is connected at the blue terminals 1 ... 3 of the KF**-DWB-Ex1.D. These may be guided into the potentially explosive areas with connector cables in accordance with DIN EN 60079-14. -
Page 12: Connection Output
Overspeed/Underspeed Monitor KF**-DWB-(Ex)1.D Installation and Connection 5.2.2 Connection output The remaining green terminals serve the following functions: • Terminals 10 ... 12: relay 1 • Terminals 13 and 14: input start-up override (15 free) • Terminals 16 ... 18: relay 2 •... -
Page 13: Indicating And Operating Elements Of The Dwb
Overspeed/Underspeed Monitor KF**-DWB-(Ex)1.D Installation and Connection Indicating and operating elements of the DWB Located on the front side of the DWB are: • LED IN/CHK 1 (yellow/red) for displaying the input signal (flashes yellow in time), an input error (flashes red) and a device error (permanent red) •... -
Page 14: Parameterization Menu Overview
Overspeed/Underspeed Monitor KF**-DWB-(Ex)1.D Parameterization menu overview Parameterization menu overview The following figure should serve as a Error menu reference for quick orientation, particularly when you are already familiar with how to Input menu parameterize the DWB. A detailed Error Main menu description of the operating steps can be found in chapter 7. -
Page 15: Editing Device Data
Overspeed/Underspeed Monitor KF**-DWB-(Ex)1.D Editing device data: Display mode Editing device data Display mode In normal operation the current measuring value is shown on the display in the selected unit. To select the unit see chapter 7.3. If the restart inhibit (see chapter 7.5.6) has been triggered and the device is still in normal operation, Alarm freeze is shown in the second line of the display in addition to the current measuring value. -
Page 16: Main Menu
Overspeed/Underspeed Monitor KF**-DWB-(Ex)1.D Editing device data: Main menu Main menu To change to the Main menu of the parameterization Main menu mode from the display mode, simultaneously press the Esc and OK buttons for approx. 1 second. Unit You can prevent unauthorized persons from making changes in the parameterization mode by means of a password (see chapter 7.6.1). -
Page 17: Unit
Overspeed/Underspeed Monitor KF**-DWB-(Ex)1.D Editing device data: Unit Unit From the menu option Unit of the Main menu, you can use the OK button to access the selection for the unit of the measuring value display (Hz or rpm = rotations per minute). -
Page 18: Input
Overspeed/Underspeed Monitor KF**-DWB-(Ex)1.D Editing device data: Input Input From the menu option Input of the Main menu, you can Input menu use the OK button to switch to the Input menu. This consists of 4 or 5 menu options (Error, Smoothing, Error Pulses per revolution, Contact bounce filter and Start-up override). -
Page 19: Input: Error
Overspeed/Underspeed Monitor KF**-DWB-(Ex)1.D Editing device data: Input 7.4.1 Input: Error From the menu option Error of the Input menu, you can Error menu use the OK button to switch to the Error menu. This menu consists of 2 menu options (LB = line break and SC = short circuit). -
Page 20: Input: Smoothing
Overspeed/Underspeed Monitor KF**-DWB-(Ex)1.D Editing device data: Input 7.4.2 Input: Smoothing From the menu option Smoothing of the Input menu, you can use the OK button to access the selection for the smoothing value. With strongly fluctuating measuring values, you can use 0 1 5 0 Smoothing smoothing to influence how fast a relay reacts to a...
