Altronix M Series Installation Manual page 8

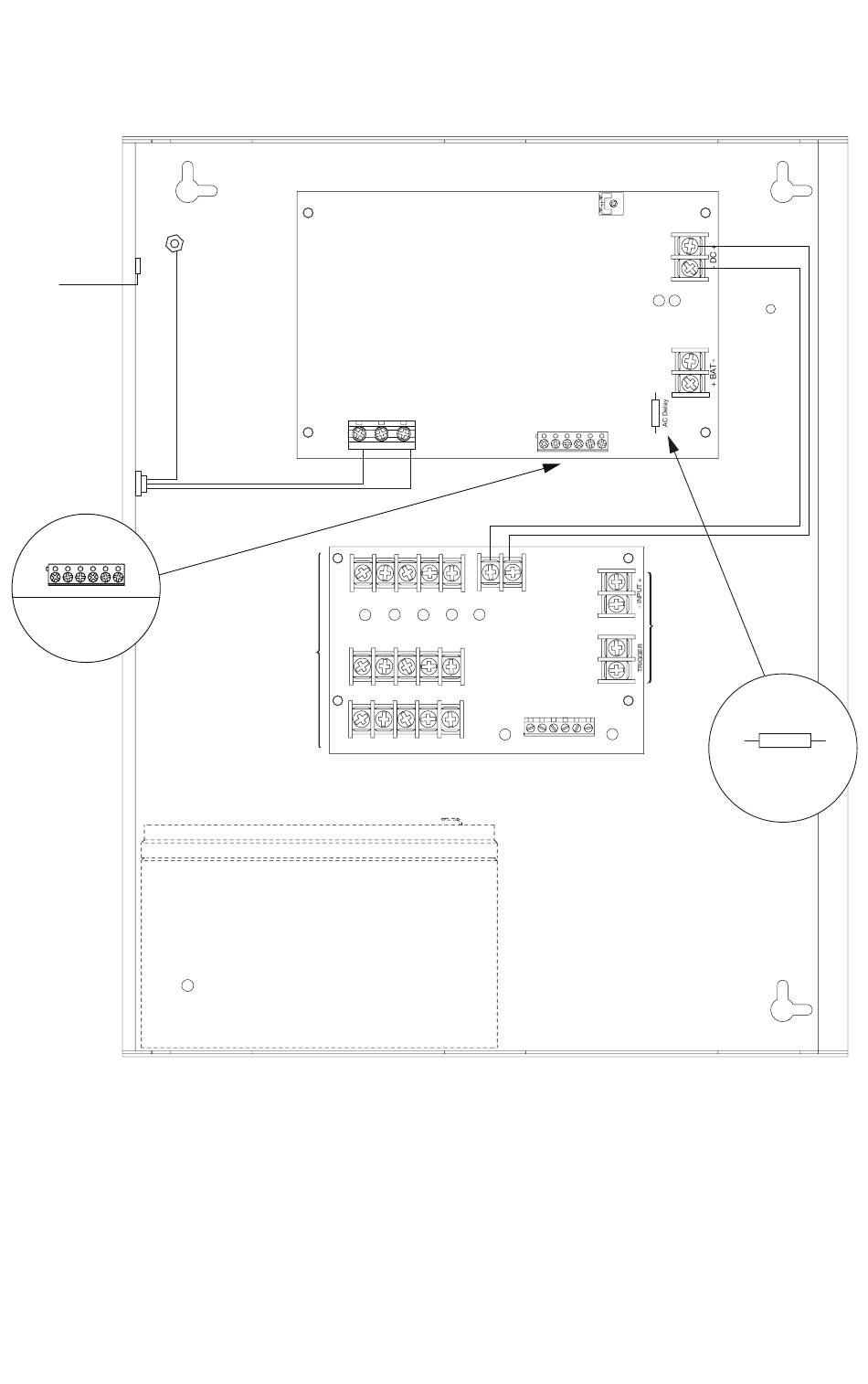

Fig. 3 - AL1012ULM
CAUTION: De-energize unit prior to servicing. For continued protection
against risk of electric shock and fire hazard replace fuses with the same type
and rating. Do not expose to rain or moisture.
Wire Strap
(from
Enclosure
to Door)
Fig. 3a
BAT FAIL NC C NO NC C NO AC FAIL
Battery & AC
Supervision Circuit
(power-limited)
Keep power-limited wiring separate from non power-limited.
Use minimum 0.25" spacing.
CAUTION: Optional rechargeable stand-by batteries must match
the power supply output voltage setting.
- 8 -
Earth
ground
115VAC
power mains
non power-
limited
Class 1
DC Outputs
to devices
(power-limited)
Optional Rechargeable
12VDC Stand-by Battery
L G N
BAT FAIL NC C NO NC C NO AC FAIL
non power-limited
NEG1 NEG2 NEG3 NEG4 NEG5 - DC INPUT +
1 2 3 4 5
POS (+) DC OUTPUT (ALARM)
TRIGGER
LED
6 7 8 9 10
POS (+) DC OUTPUT(STANDBY) DRY OUTPUT POWER FAIL
AC DC
Battery
connections
non power-limited
Fire Alarm
Inteface
MOM5_S
Power-
limited
POWER
ON
LED
NC C NO NC C NO
Fig. 3b
J1
AC Delay
