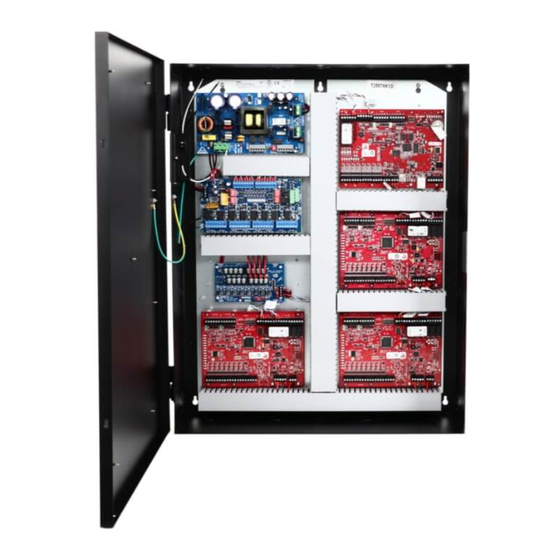

Access & Power Integration
T2M7XK1
8 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove2 enclosure with TM2 Altronix/Mercury backplane
- One (1) eFlow104NB - Power Supply/Charger
- One (1) ACMS8 - Dual Input/Output Fuse Protected Access Power Controller
- One (1) VR6 - Voltage Regulator
- One (1) PDS8 - Dual Input/Output Fuse Protected Power Distribution Module
- One (1) Rocker Switch Bracket with One (1) Rocker Switch (Not evaluated by UL)
- Wire harnesses and finger duct
T2M7XK1D
8 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove2 enclosure with TM2 Altronix/Mercury backplane
- One (1) eFlow104NB - Power Supply/Charger
- One (1) ACMS8CB - Dual Input/Output PTC Protected Access Power Controller
- One (1) VR6 - Voltage Regulator
- One (1) PDS8CB - Dual Input/Output PTC Protected Power Distribution Module
- One (1) Rocker Switch Bracket with One (1) Rocker Switch (Not evaluated by UL)
- Wire harnesses and finger duct
Installation Guide
All components of these Trove kits are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.
All registered trademarks are property of their respective owners.
Rev. T2M7XK1091621
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
plus
More than just power.™
Advertisement
Table of Contents
Related Manuals for Altronix TROVE plus T2M7XK1
Summary of Contents for Altronix TROVE plus T2M7XK1
- Page 1 T2M7XK1 8 Door Kit with Fused Outputs Fully assembled kit includes: - Trove2 enclosure with TM2 Altronix/Mercury backplane - One (1) eFlow104NB - Power Supply/Charger - One (1) ACMS8 - Dual Input/Output Fuse Protected Access Power Controller - One (1) VR6 - Voltage Regulator...
- Page 2 Install the three lower screws and make sure to tighten all screws. 3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in desired location, opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure approximately 2” from the right side (Fig. 1, pg. 2). Connect tamper switch wiring to the Access Control Panel input or the appropriate UL Listed reporting device.
- Page 3 2. Mount backplane to enclosure with hardware. Access Controller Position Chart for the Following Models: LenelS2 / Mercury Access Controller Pem Mounting LNL-2220 / LP1502 LNL-1320 / MR52 Fig. 2 Altronix eFlow104NB (A) LNL-2220, LP1502 AC DC 1 min enable NO NC TRIGGER EOL...
- Page 4 5.25” (133.4mm) Altronix is not responsible for any typographical errors. ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. IIT2M7XK1(D) I16U MEMBER...
