Access & Power Integration
Trove2R
Access Control Subassembly
Installation Guide
All registered trademarks are property of their respective owners.
SIGNALING
Rev. 082420
More than just power.
TM
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TROVE Series and is the answer not in the manual?

Questions and answers

Related Manuals for Altronix TROVE Series

Summary of Contents for Altronix TROVE Series

  • Page 1 Access & Power Integration Trove2R Access Control Subassembly Installation Guide All registered trademarks are property of their respective owners. SIGNALING Rev. 082420 More than just power. Installing Company: _______________ Service Rep. Name: __________________________________ Address: _____________________________________________ Phone #: __________________...

  • Page 2: Agency Listings

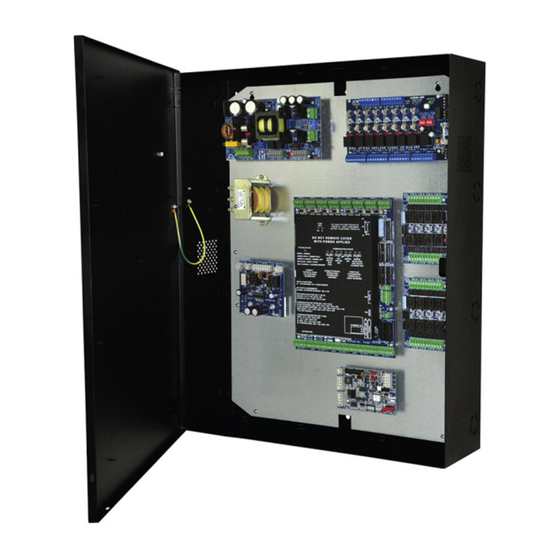

    Overview: Trove2R is an access control sub-assembly designed to accommodative variety of Altronix and other Access control manufacturers’ UL Listed sub-assemblies. A variety of backplanes offer a wide range of scalable access and power configurations. Trove2R simplifies board layout and wire management, while reducing installation and labor costs.
  • Page 3 Installing Trove2R into Rack Tower: Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction. These products are for indoor use only and must be installed within the protected premises. Fig.
  • Page 4 Z Bracket Installation for Trove2R: Altronix Trove2R enclosure includes Z Bracket, a convenient and reliable wire management accessory. Hardware (included): Fig. 3 Twelve (12) bolts and eight (8) lock nuts. 1. Carefully unpack Z Bracket. Do not discard hardware (included) (Fig. 3, pg. 4).

  • Page 5: Battery Backup

    If batteries are being used in your installation do not fit into the Trove2R unit, it is required to install a separate UL Listed enclosure for appropriate application (Altronix Model: RE2). Separate battery enclosure is required to have 50 cubic inches of additional open space.
  • Page 6 UL Listed Altronix Power Supplies and Sub-Assemblies: Power Supply Specifications: Altronix UL Listed Battery Size for Power Supply Input Rating Output Rating 30 min. Backup Refer to AL400ULXB2 115VAC, 60Hz, 3.5A 12VDC @ 4A or 24VDC @ 3A AL600ULXB 115VAC, 60Hz, 3.5A...
  • Page 7 Trove2R Sub-Assemblies Configuration: Fig. 6 Compatible Backplanes: Backplane Model* Access Controller Manufacturer Backplane Size TAG2R AMAG TAL2R Altronix TBH2R Bosch TBL2R Universal Blank Backplane TBR2R Brivo TCV2R CDVI TDM2R THR2R Hirsch THN2R Honeywell NetAXS 32” x 14.3” x 0.375” THW2R Honeywell ProWatch/WinPak (812.8mm x 363.2mm x 9.5mm)
  • Page 8 15.05” (382.3mm) 0.63” (16mm) 0.52” (13.2mm) 4.5” (114.3mm) 11.2” (284.5mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com MEMBER IITrove2R...
