Altronix M Series Installation Manual page 7

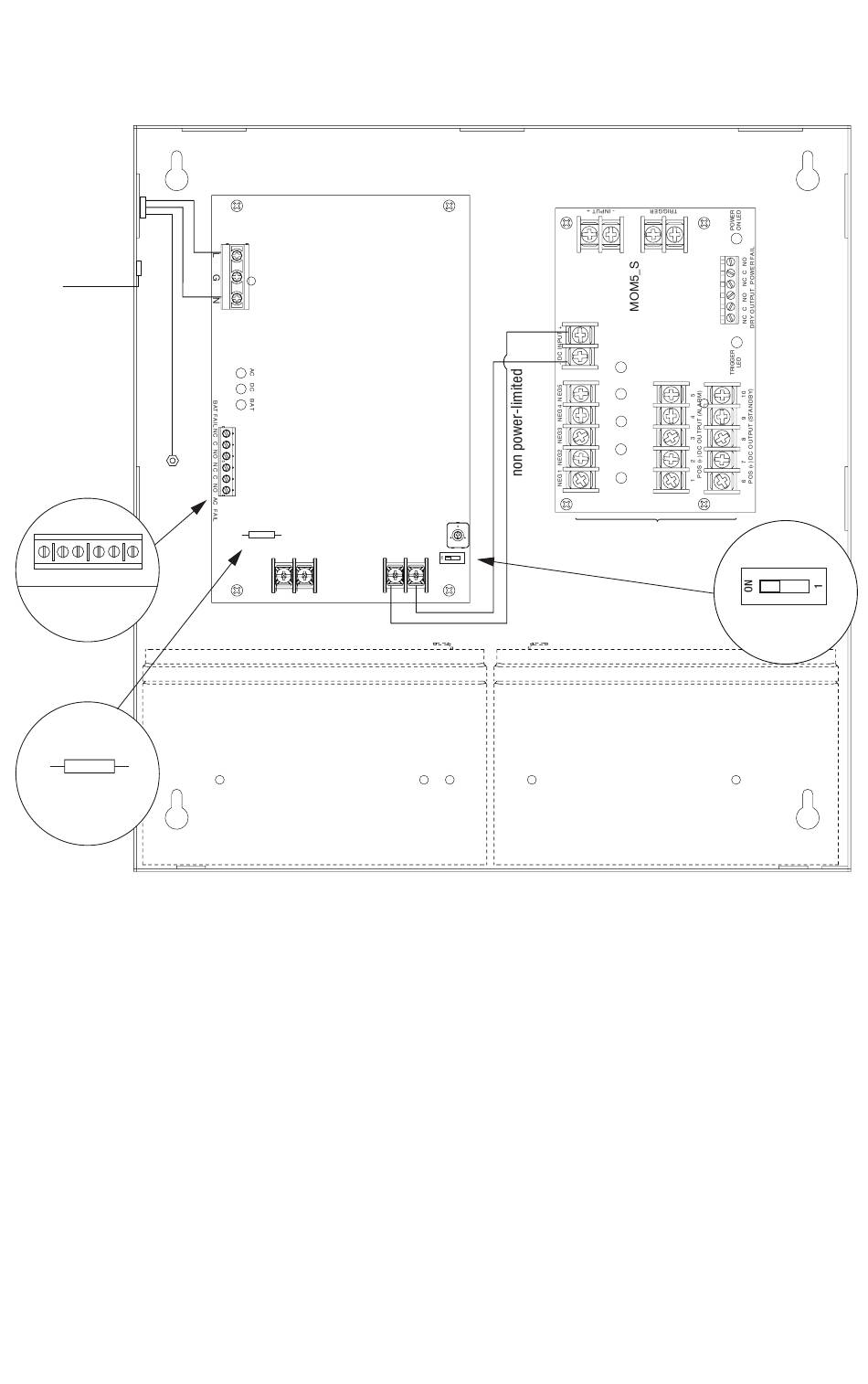

Fig. 2 - AL600ULM
CAUTION: De-energize unit prior to servicing. For continued protection
against risk of electric shock and fire hazard replace fuses with the same type
and rating (see marking on the board). Do not expose to rain or moisture.
Wire Strap
(from Enclosure
to Door)
Earth
Fig. 2a
Ground
NC C NO NC C NO
Battery & AC
Supervision Circuit
(power-limited)
Fig. 2b
J1
AC Delay
Keep power-limited wiring separate from non power-limited.
Use minimum 0.25" spacing.
CAUTION: Optional rechargeable stand-by batteries must match
the power supply output voltage setting.
M Series Installation Guide
115VAC power mains
non power-limited
Class 1
AC Delay
+ BAT -
Battery Connections
non power-limited
Optional Rechargeable
Stand-by Battery
OFF - 24V
ON - 12V
+ DC -
DC Outputs to devices
(power-limited)
Fig. 2c
Optional Rechargeable
Stand-by Battery
SW1
OFF - 24V
ON - 12V
- 7 -
