Access & Power Integration

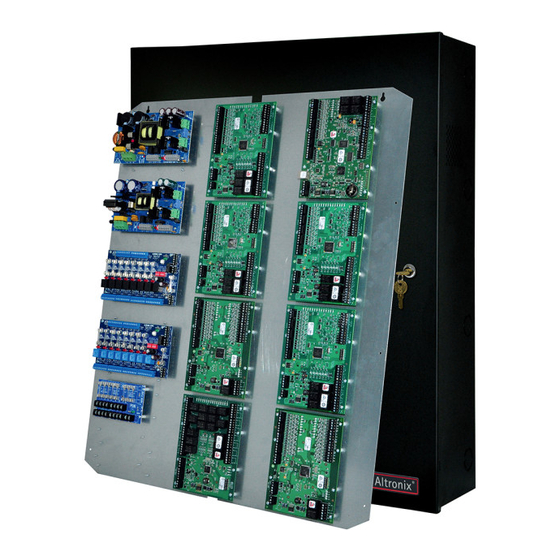

T3MK75F16
16 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove3 enclosure with TM3 Altronix/Mercury backplane
- One (1) eFlow104NB - Power Supply/Charger
- One (1) eFlow102NB - Power Supply/Charger
- Two (2) ACM8 - Fuse Protected Access Power Controllers
- One (1) PD8UL - Fuse Protected Power Distribution Module
- One (1) Rocker Switch Bracket with Two (2) Rocker Switches
T3MK77F16
16 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove3 enclosure with TM3 Altronix/Mercury backplane
- Two (2) eFlow104NB - Power Supply/Chargers
- Two (2) ACM8 - Fuse Protected Access Power Controllers
- Two (2) PD8UL - Fuse Protected Power Distribution Modules
- One (1) Rocker Switch Bracket with Two (2) Rocker Switches
Installation Guide
All registered trademarks are property of their respective owners.
Rev. T3MK071818
Installing Company: _____________________ Service Rep. Name: __________________________________________
Address: ________________________________________________________ Phone #: _________________________
T3MK75F16D
16 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove3 enclosure with TM3 Altronix/Mercury backplane
- One (1) eFlow104NB - Power Supply/Charger
- One (1) eFlow102NB - Power Supply/Charger
- Two (2) ACM8CB - PTC Protected Access Power Controllers
- One (1) PD8ULCB - PTC Protected Power Distribution Module
- One (1) Rocker Switch Bracket with Two (2) Rocker Switches
T3MK77F16D
16 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove3 enclosure with TM3 Altronix/Mercury backplane
- Two (2) eFlow104NB - Power Supply/Chargers
- Two (2) ACM8CB - PTC Protected Access Power Controllers
- Two (2) PD8ULCB - PTC Protected Power Distribution Modules
- One (1) Rocker Switch Bracket with Two (2) Rocker Switches
More than just power.™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix TROVE Mercury Series T3MK75F16
Summary of Contents for Altronix TROVE Mercury Series T3MK75F16
- Page 1 16 Door Kit with PTC Outputs Fully assembled kit includes: Fully assembled kit includes: - Trove3 enclosure with TM3 Altronix/Mercury backplane - Trove3 enclosure with TM3 Altronix/Mercury backplane - One (1) eFlow104NB - Power Supply/Charger - One (1) eFlow104NB - Power Supply/Charger...
- Page 2 Overview: Altronix Trove Mercury kits are pre-assembled and consist of Trove3M3 enclosure/backplane with factory installed Altronix power sup- ply/charger(s) and sub-assemblies. These kits also accommodate various combinations of Mercury boards for up to sixteen (16) doors in a single enclosure.
- Page 3 Access Controller Position Chart for the Following Models: Mercury Access Controller Pem Mounting EP1502, MR52, MR16IN, MR16OUT EP2500, MUX8 Fig. 2 Fig. 2a Rocker Switch Altronix Snap on or eFlow104NB Metal Standoff Backplane Sub-Assembly Altronix eFlow102NB Altronix ACM8(CB) Altronix ACM8(CB) Altronix PD8UL(CB) T3MK Kits - 3 -...
- Page 4 Mercury Access Controller Pem Mounting EP1502, MR52, MR16IN, MR16OUT EP2500, MUX8 Fig. 3 Fig. 3a Rocker Switch Altronix Snap on or eFlow104NB Metal Standoff Backplane Sub-Assembly Altronix eFlow104NB Altronix ACM8(CB) Altronix ACM8(CB) Altronix PD8UL(CB) Altronix PD8UL(CB) - 4 - T3MK Kits...
- Page 5 Notes: T3MK Kits - 5 -...
- Page 6 - UL Listed in the U.S. and Canada. - Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN. - Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change, output state change and unit temperature.
- Page 7 TM3 Dimensions 34” x 28” x 0.3125” (863.6mm x 711.2mm x 7.9mm) 28.0” (711.2mm) 23.0” (584.2mm) 6.5” (165.1mm) 11.5” (292.1mm) 34.0” (863.6mm) 11.5” (292.1mm) 1.0” (25.4mm) 2.0” (50.8mm) 1.0” (25.4mm) 27.0” (685.8mm) T3MK Kits - 7 -...
- Page 8 (222.3mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IITrove3M3 Kit Series...
