Altronix Trove T2KHK3F12 Installation Manual

Access & power integration 12 door kit with fused outputs

Access & Power Integration

T2KHK3F12

12 Door Kit with Fused Outputs

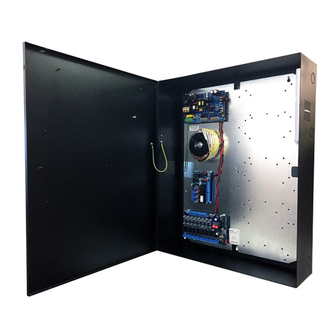

Fully assembled kit includes:

- Trove2 enclosure with TKH2 Altronix/Kantech backplane

- One (1) eFlow6NB - Power Supply/Charger

- One (1) T1618300K - Transformer

- One (1) ACM4 - Fused Access Power Controller

- One (1) ACM8 - Fused Access Power Controller

All components of this Trove kit are UL Listed sub-assemblies.

Please refer to the included corresponding Sub-Assembly Installation Guides for further information.

Installation Guide

All registered trademarks are property of their respective owners.

Rev. 040819

Installing Company: _____________________ Service Rep. Name: __________________________________________

Address: ________________________________________________________ Phone #: _________________________

More than just power.™

Table of Contents

Need help?

Do you have a question about the Trove T2KHK3F12 and is the answer not in the manual?

Page 1 T2KHK3F12 12 Door Kit with Fused Outputs Fully assembled kit includes: - Trove2 enclosure with TKH2 Altronix/Kantech backplane - One (1) eFlow6NB - Power Supply/Charger - One (1) T1618300K - Transformer - One (1) ACM4 - Fused Access Power Controller - One (1) ACM8 - Fused Access Power Controller All components of this Trove kit are UL Listed sub-assemblies.
Page 2 3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in desired location, opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure approximately 2” from the right side (Fig. 1, pg. 2).
Page 3 KT-MOD-INP16 or KT-MOD-OUTP16 Expansion Boards Fig. 2 Fig. 2a Step 1a Step 1b OFF - 24V ON - 12V Kantech Standoff Altronix Kantech eFlow6NB Board Back of TKH2 AC DC NC C NO NC C NO TRIGGER +AUX- AC FAIL...
Page 4 (133.35mm) (50.8mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIT2KHK3F12 K04S...
