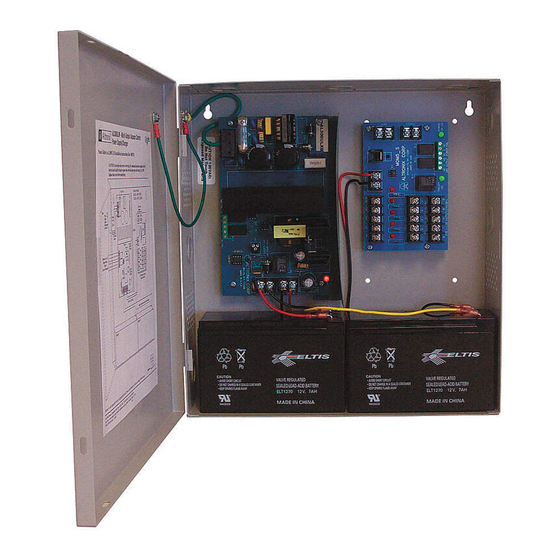

M Series
Multi-Output Access Control
Power Supply Chargers
Installation Guide
Models Include:
• AL300ULM
-
2.5 amp @ 12VDC or 24VDC.
• AL600ULM
-
6 amp @ 12VDC or 24VDC.
• AL1024ULM
-
10 amp @ 24VDC.
For a red enclosure, add an "R" suffix to the part # e.g. AL300ULMR
• AL400ULM
-
3 amp @ 12VDC
or 4 amp @ 24VDC.
• AL1012ULM
-
10 amp @ 12VDC.
Rev. 111103
Advertisement
Table of Contents
Related Manuals for Altronix AL300ULM
Summary of Contents for Altronix AL300ULM
-
Page 1: Installation Guide
M Series Multi-Output Access Control Power Supply Chargers Installation Guide Models Include: • AL300ULM • AL400ULM 2.5 amp @ 12VDC or 24VDC. 3 amp @ 12VDC or 4 amp @ 24VDC. • AL600ULM • AL1012ULM 6 amp @ 12VDC or 24VDC. -
Page 2: Specifications
(12VDC only for AL1012ULM and battery backup. 24VDC only for AL1024ULM). • AL300ULM, AL400ULM and AL600ULM enclosures • Filtered and electronically regulated outputs. accommodate up to two (2) 12VDC/7AH batteries. • Thermal and short circuit protection with auto reset. -
Page 3: Installation Instructions
2. Set output voltage: AL300ULM, AL400ULM and AL600ULM set desired DC output voltage by setting switch SW1 to the appropriate position on the power supply board (Fig. 1B, pg. 5; Fig. 2B, pg. 6). AL1012ULM is 12VDC only and AL1024ULM is 24VDC only. -
Page 4: Output Voltage And Stand-By Specification Charts
Note: When used in fire alarm, burglar alarm or access control applications, “AC Fail” relay must be used to provide a visual indication of AC power on. 12. Please insure that the cover is secured with the provided Key Lock. Output Voltage and Stand-by Specification Charts: AL300ULM Output Switch 4 hr. of Stand-by &... -
Page 5: Maintenance
Expected battery life is 5 years, however it is recommended to change batteries within 4 years or less if necessary. Fig. 1 CAUTION: De-energize unit prior to servicing. For continued protection AL300ULM against risk of electric shock and fire hazard replace fuses with the same type AL400ULM and rating (see marking on the board). - Page 6 Fig. 2 AL600ULM CAUTION: De-energize unit prior to servicing. For continued protection against risk of electric shock and fire hazard replace fuses with the same type and rating (see marking on the board). Replace fuse cover before energizing. Do not expose to rain or moisture. Divider Fire Alarm Interface...
- Page 7 Fig. 3 CAUTION: De-energize unit prior to servicing. For continued protection AL1012ULM against risk of electric shock and fire hazard replace fuses with the same type and rating (see marking on the board). Replace fuse cover before energizing. Do not expose to rain or moisture. Door Fig.
- Page 8 Fig. 4 AL1024ULM CAUTION: De-energize unit prior to servicing. For continued protection against risk of electric shock and fire hazard replace fuses with the same type and rating (see marking on the board). Replace fuse cover before energizing. Do not expose to rain or moisture. C NC NO C Battery and AC Supervision Circuit...
-
Page 9: Led Diagnostics
LED Diagnostics: Power Supply Board Red (DC) Green (AC) Power Supply Status Normal operating condition. Loss of AC, Stand-by battery supplying power. No DC output. Short circuit or thermal overload condition. No DC output. Loss of AC. Discharged battery. MOM5 - Output Module Power (Green) Normal operation. - Page 10 Connect 115VAC 60Hz to these terminals: L to hot, N to neutral, G to ground. - DC + AL300ULM - 12VDC/24VDC @ 2.5 amp to MOM5 board (power limited). AL400ULM - 12VDC @ 4 amp or 24VDC @ 3 amp to MOM5 board (power limited).
-
Page 11: Typical Application Diagrams
- DC INPUT+ DC VOLTAGE INPUT FROM FACP SIGNALING (--) OUTPUT OR ACCESS MOM5_S CONTROL DEVICE MOM5_S ALTRONIX CORP. ALTRONIX CORP. BROOKLYN, NY 11220 BROOKLYN, NY 11220 MADE IN USA MADE IN USA EOL 2.2K N.O. INPUT FROM FACP OR ACCESS... - Page 12 Typical Application Diagrams (cont’d.): Fig. 8 MOM5 module shown with with wet and/or dry MOM5 module shown with with wet and/or dry normally open fire alarm trigger inputs (Latching normally closed fire alarm trigger inputs with Manual Reset): (Latching with Manual Reset): DC VOLTAGE INPUT FROM FACP DC VOLTAGE INPUT...
- Page 13 Enclosure Dimensions: • AL300ULM • AL400ULM • AL600ULM 13.5”H x 13”W x 3.25”D 1.40" 4.85" 4.85" 1.40" 1.20" 3.25" 12.50" 1.20" 1.20" 0.75" 11.00" 0.75" 0.9375" 1.40" 1.40" 5.10" 5.10" Left Right 5.10" 6.5625" 0.9375" 3.25" 3.25" Bottom 3.25" 1.00"...
-
Page 14: Enclosure Dimensions
Enclosure Dimensions: • AL1012ULM • AL1024ULM 15.5”H x 12”W x 4.5”D 1.285 1.285 - 14 - Mseries... - Page 15 Notes: Mseries - 15 -...
- Page 16 Notes: Altronix is not responsible for any typographical errors. Altronix Corp. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIMseries G11G MEMBER - 16 - Mseries...
