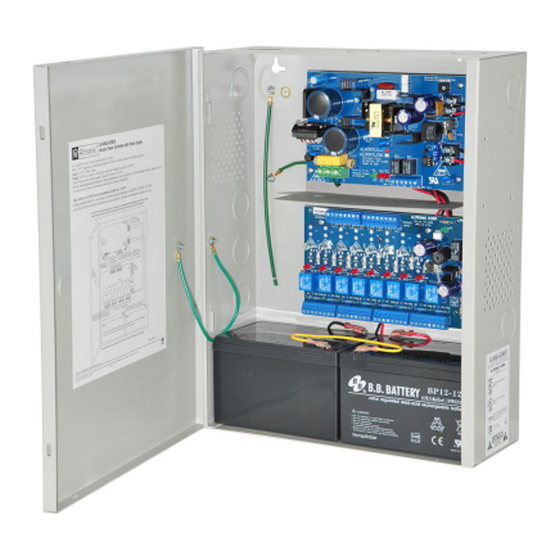

ACMCB Series
Access Power Controllers
with Power Supplies
Installation Guide
Models Include:
• AL400ULACMCB
- 12VDC @ 4 amp
or 24VDC @ 3 amp
- Class 2 Rated PTC Protected
Power-Limited Outputs
• AL1012ULACMCB
- 12VDC @ 10 amp.
- Class 2 Rated PTC Protected
Power-Limited Outputs
For a red enclosure add an "R" suffix to the part # e.g. AL600ULACMCBR
• AL600ULACMCB
- 12VDC or 24VDC @ 6 amp.
- Class 2 Rated PTC Protected
Power-Limited Outputs
• AL1024ULACMCB
- 24VDC @ 10 amp.
- Class 2 Rated PTC Protected
Power-Limited Outputs
Rev. 102512
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix ACMCB Series
Summary of Contents for Altronix ACMCB Series
- Page 1 ACMCB Series Access Power Controllers with Power Supplies Installation Guide Models Include: • AL400ULACMCB • AL600ULACMCB - 12VDC @ 4 amp - 12VDC or 24VDC @ 6 amp. or 24VDC @ 3 amp - Class 2 Rated PTC Protected - Class 2 Rated PTC Protected...
-
Page 2: Specifications
Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs. ACMCB Series Configuration Reference Chart: UL 294 Altronix Corp. -
Page 3: Installation Instructions
For Fail-Safe operation connect the positive (+) input of the device being powered to the terminal marked [NC]. For Fail-Secure operation connect the positive (+) input of the device being powered to the terminal marked [NO]. ACMCB series - 3 -... -
Page 4: Maintenance
Note: AL400ULXB2, AL600ULXB, AL1012ULXB (Power Supply Board) maximum charge current is 0.7 amp. AL1024ULXB2 (Power Supply Board) maximum charge current is 3.6 amp. Expected battery life is 5 years; however, it is recommended to change batteries within 4 years or less if necessary. - 4 - ACMCB series... -
Page 5: Typical Application Diagram
Battery Status Normal operating condition. Battery fail/low battery. ACM8CB Access Power Controller LED 1 - LED 8 (Red) Output relay(s) energized. Output relay(s) de-energized. Trg (Green) FACP input triggered (alarm condition). FACP normal (non-alarm condition). ACMCB series - 5 -... -
Page 6: Power Supply Board
DC Output to devices (power-limited) Optional Rechargeable Optional Rechargeable Stand-by Battery Stand-by Battery Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing. CAUTION: Optional rechargeable stand-by batteries must match the power supply output voltage setting. - 6 - ACMCB series... - Page 7 FACP output circuit (Fig. 4 through 8, pg. 8). FACP INTERFACE Form “C” relay contact rated @ 1 amp 28VDC for alarm reporting. NC, C, NO (This output has not been evaluated by UL). ACMCB series - 7 -...
-
Page 8: Hookup Diagrams
Fig. 7 Normally Closed - Non-Latching FACP Fig. 8 Normally Closed - Latching FACP trigger input trigger input: with reset: (This output has not been evaluated by UL) N.C. RESET SWITCH N.C. DRY TRIGGER INPUT N.C. TRIGGER JUMPER JUMPER INPUT - 8 - ACMCB series... - Page 9 36AH. You have to reduce either stand-by current consumption or stand-by time in order to comply with requirement. To determine actual battery size please round line [J] to the nearest larger standard battery size. ACMCB series - 9 -...
-
Page 10: Enclosure Dimensions
0.91” (23.114mm) (23.114mm) 1.5” 1.5” (38.1mm) (38.1mm) 2.0” 15.5” (50.8mm) (393.7mm) 2.0” (50.8mm) 5.0” 5.0” (127.0mm) (127.0mm) 0.79” 1.1” (20.06mm) 1.25” 1.25” (27.94mm) (31.75mm) (31.75mm) 1.75” (44.45mm) 1.5” 4.615” 4.615” 1.5” (38.1mm) (117.22mm) (117.22mm) (38.1mm) - 10 - ACMCB series... - Page 11 Notes ACMCB series - 11 -...
- Page 12 Notes: Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. MEMBER IIACMCB series C31O - 12 - ACMCB series...
