Installing New or Replacement Media Hard Drives

Follow these steps to replace a hard drive or install a new one. Drives may be removed
or replaced with power on. See

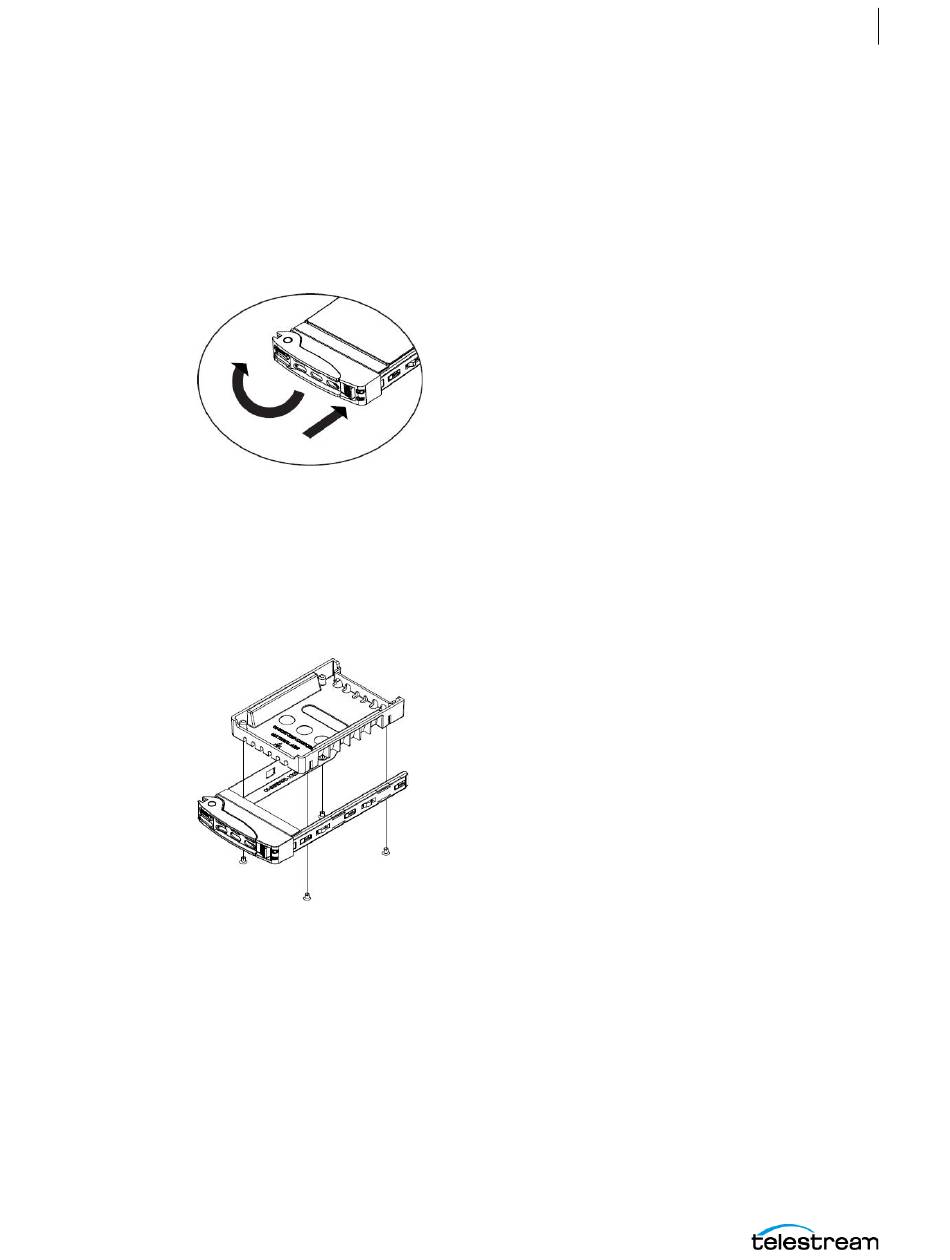

1. Remove the front bezel from the chassis.
2. Press the release button on the right front of the drive carrier.
3. Use the drive carrier handle to pull the carrier out of the chassis.
4. Remove the drive or dummy drive from the carrier by removing the four M3 screws
from the underside of the carrier. Retain the screws.
5. Insert the new drive into the carrier with the PCB side down and the connector
facing the back of the carrier.
6. Secure the drive to the carrier with the four M3 screws retained from removal.
Gently tighten but do not over tighten the screws, which could cause damage.
7. Slide the drive carrier into its bay with the drive facing up until it seats firmly in the
rear connector.
8. Push the handle closed flat against the front of the carrier to secure the drive.
9. Replace the front bezel on the chassis, and go to the next topic to rebuild the RAID.
