Managing System Settings - Telestream Lightspeed Live Capture User Manual

Managing System Settings

Click Source Manager's main menu to select Settings | Download System Logs | About:
The main menu (a vertical ellipsis)
window, at the far right edge of the Source Manager title bar.

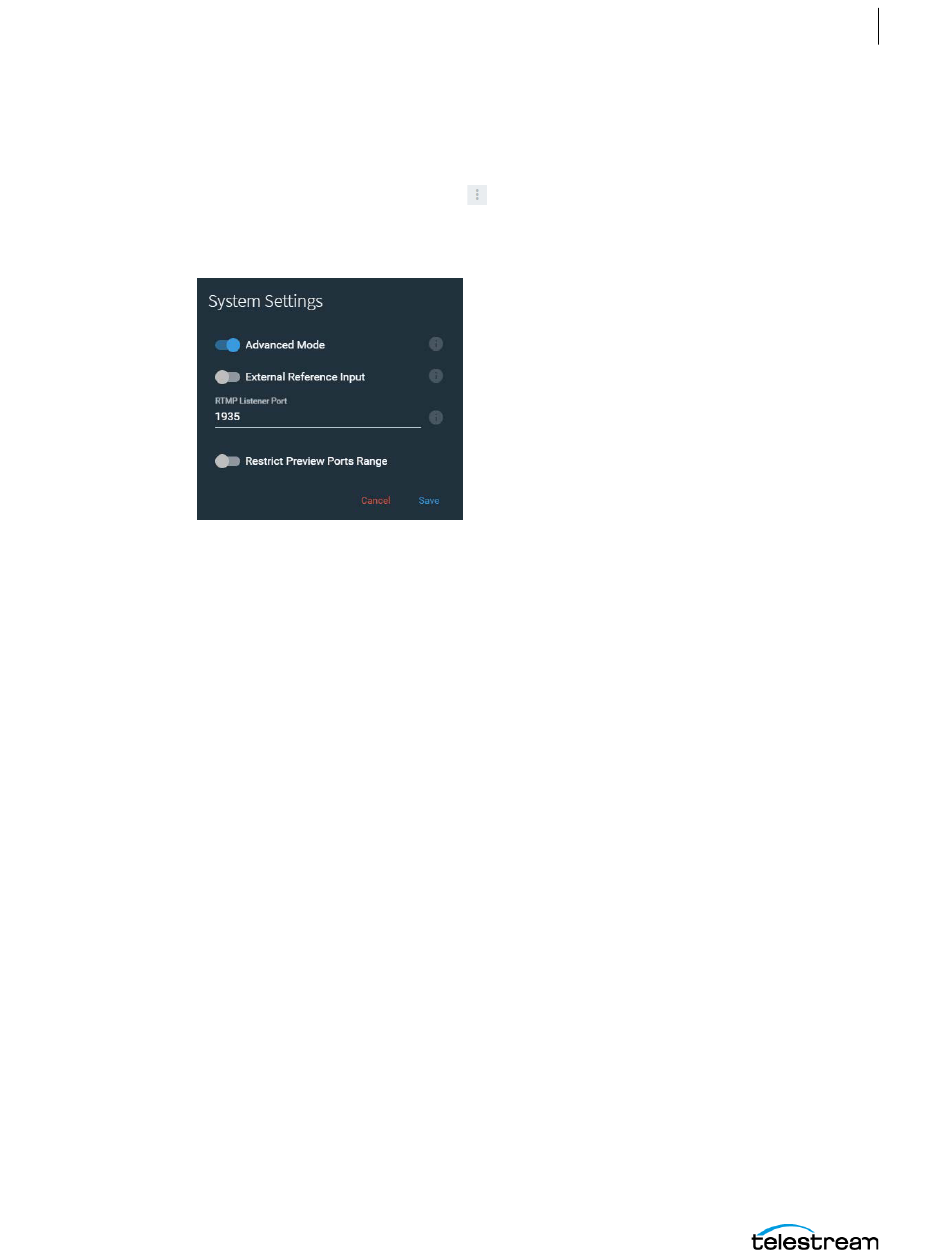

Click main menu > Settings to display the System Settings panel:
Use this panel to configure the following per your requirements:
•
Advanced Mode—Enables/disables advanced mode. In advanced mode, all con-
trols display; otherwise, certain controls in source configuration panels are hidden.
Advanced mode controls are identified in this guide by the phrase Advanced Mode
Only.
•
External Reference Input—Enable to synchronize looped-through outputs from
Live Source Manager to an external reference—see
for SDI Playout
•
RTMP Listener Port—Specifies the RTMP listener port. Default: 1935. If you change
the listener port, be certain the RTMP server is also sending to the same port. Be
sure to restart the Telestream Live Source Service—see
Live Source Service
•
Restrict Preview Ports Range—When enabled, restricts the range of preview
ports that can be automatically selected when the selection may interfere with
other network traffic. Default lower and upper range: 1024 to 65534. Be sure to
restart the Telestream Live Source Service—see
Source Service
– Port Range Start | End—Specifies the lowest and highest port to use. The Start
value must be lower than Port Range End value.
Click Cancel to close the panel without saving changes. Click Save to update changes
you have made.
Lightspeed Live Capture User Guide
icon is located at the top right corner of the
for details.
for guidance.
for guidance.
Managing Video Sources
Managing System Settings
Using External Reference (REF)
Restarting the Telestream
Restarting the Telestream Live
275
